National Instruments Ni Crio Compactrio 9853 2-port High-speed Can Module

US $600

  • Poznan, Poland
  • Feb 22nd
Open on mobile:
QR code

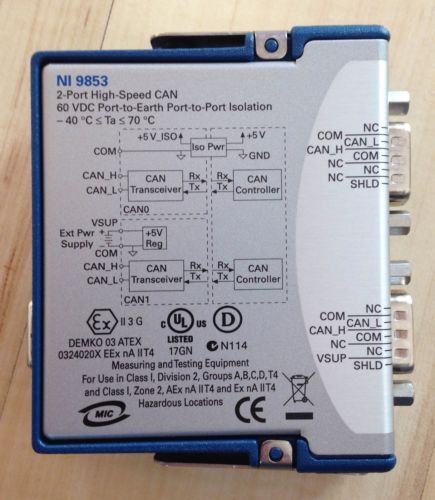

No Product Specification Qty Cond 1 NI 9853 - 779429-01 2-Port, High-Speed CAN Module 1 new 2 NI CAN Cable - 192017A-02 9-Pin D-Sub Female to 9-Pin D-Sub Female Cable Single Termination (2m) 2 new NI 9853 CAN Module: 2-port, high-speed CAN module; Port 1 internally powered, Port 2 externally powered Standard DE9M (DB9) male connector for each port Philips SJA1000 CAN controller and Philips TJA1041 CAN transceiver Hardware synchronization with any NI CompactRIO I/O module ISO 11898 compliance for standard (11-bit) and extended (29-bit) arbitration IDs Ability to transmit/receive 100 percent bus load at 1 Mbit/s NI Single Terminal CAN Cable: High-speed CAN cable with 9-pin D-SUB female connectors 120 ? terminating resistor located in cable end closest to white part number label Compatible with all NI PCI, PXI, USB, PCMCIA, and CompactRIO high-speed CAN interfaces Cable impedance: 120 ?, resistance: 93 ?/km at 20 °C, delay: 5 ns/m Two 24 AWG twisted pairs: one for CAN_H and CAN_L and one for V+ and V- CiA-DS-102 standard wiring: Pin 2: CAN_L, Pin 3: V-, Pin 5: Shield, Pin 7: CAN_H, Pin 9: V+ No software included
