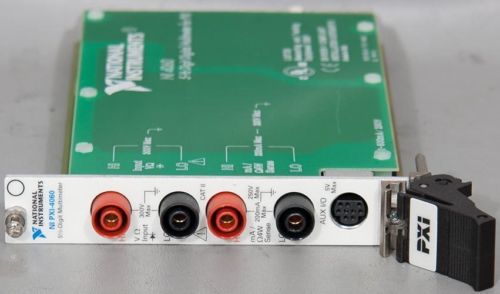

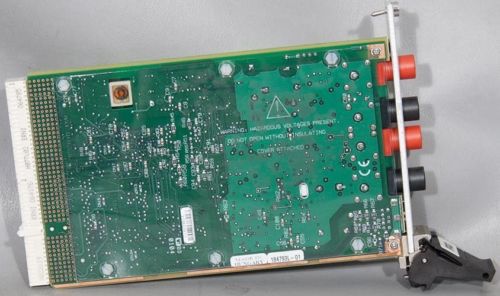

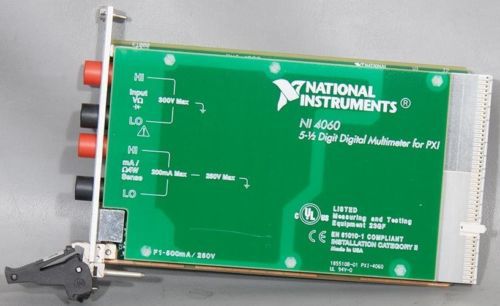

National Instruments Ni Pxi-4060 5-1/2 Digit Digital Multimeter Dmm Card

US $624.49

Phoenix, Arizona, United States
Feb 17th

Open on mobile:
QR code

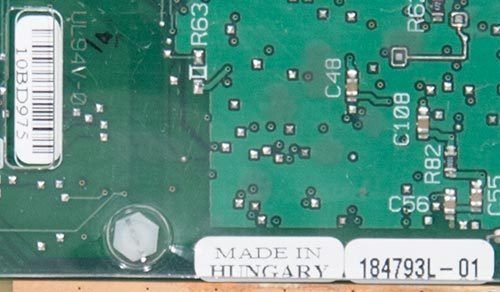

National Instruments NI PXI-4060 5-1/2 Digital Digital Multimeter Card Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from National Instruments and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is guaranteed to work. The Unit's Information Reads: Model Number: NI 4060 Part Number: 184793L-01 Serial Number: 10BD975 Link to the Datasheet: National Instruments PCI & PXI-4060 Multimeter Card Datasheet Link to the Manual: National Instruments Digital Multiimeter Getting Started Guide Key Features: 5-1/2 digits 5 measurement modes ±300 VDC/Vrms maximum 200 MΩ maximum (2 and 4-wire) 60 readings/s maximum DC Voltage Specifications (Accuracy % of reading ± µV): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±10°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + µV/°C): 250.000 V 0.0032% + 1.25 mV 0.021% + 1.25 mV 0.024% + 1.25 mV 0.0017%/°C + 480 µV/°C 25.0000 V 0.0032% + 1 mV 0.021% + 1 mV 0.024% + 1 mV 0.0017%/°C + 480 µV/°C 2.00000 V 0.0029% + 10 µV 0.014% + 10 µV 0.017% + 10 µV 0.0009%/°C + 5 µV/°C 200.000 mV 0.0029% + 6 µV 0.014% + 6 µV 0.017% + 6 µV 0.0009%/°C + 1 µV/°C 20.0000 mV 0.0029% + 6 µV 0.014% + 6 µV 0.017% + 6 µV 0.0009%/°C + 1 µV/°C Note: Accuracy numbers are for 5-1/2 digits with autozero on and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. Overrange capabilites to 300 V. Noise Rejection: NMRR: 80 dB (10 Hz filter setting, 50/60 Hz powerline frequency ±1%) DC ECMRR: 140 dB (with a 1 kΩ imbalance in HI lead) AC ECMR (50/60 Hz): 150 dB (with a 1 kΩ imbalance in HI lead) Input Characteristics: Input Bias Current: 1 nA maximum Input Resistance: > 1 GΩ (2 V, 200 mV, 20 mV ranges); 1 MΩ (250 V, 25 V) DC Current Specifications (Accuracy % of reading ± µA): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±10°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + µA/°C): 20.0000 mA 0.015% + 10 µA 0.039% + 10 µA 0.042% + 10 µA 0.0035%/°C + 1 µA/°C 200.000 mA 0.015% + 10 µA 0.039% + 10 µA 0.042% + 10 µA 0.0035%/°C + 1 µA/°C 10.0000 A* 0.02% + 1 mA 0.035% + 2 mA 0.035% + 2 mA 0.0009%/°C + 0.1 mA/°C Notes: Accuracy numbers are for 5-1/2 digits with autozero on and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. *: Requires 10 A shunt, CSM-10A Input Characteristics: Input Protection: Fuse F1 500 mA/250 V fast-fusing Shunt Resistor: 1 Ω Burden Voltage: < 400 mV at 200 mA DC AC Voltage Specifications (Accuracy % of reading ± mV): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±10°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + mV/°C): 250.000 V 0.6% + 250 mV 0.62% + 680 mV 0.62% + 680 mV 0.007%/°C + 20 mV/°C 25.0000 V 0.16% + 30 mV 0.18% + 210 mV 0.18% + 210 mV 0.007%/°C + 20 mV/°C 2.00000 V 0.28% + 3 mV 0.30% + 21 mV 0.30% + 21 mV 0.019%/°C + 2 mV/°C 200.000 mV 0.016% + 0.22 mV 0.18% + 1.20 mV 0.18% + 1.20 mV 0.007%/°C + 0.110 mV/°C 20.0000 mV 0.28% + 100 µV 0.30% + 170 µV 0.30% + 170 µV 0.019%/°C + 12 µV/°C Notes: Accuracy numbers are for 5-1/2 digits and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. Applies for sine waves > or = to 10% of input range. Accuracy may be affected by source impedance, cable capacitances, dielectric absorpotion, or slew rate. Overrange capabilities to 300 V. Noise Rejection: AC CMRR (50/60 Hz): > 80 dB (with a 1 kΩ imbalance in HI lead) Input Characteristics: Input Resistance: 1 MΩ Bandwidth: 20 Hz - 25 kHz Additional AC Errors: Frequency dependent errors Input Frequency: Additional Error (% of reading): 20 Hz - 50 Hz 2.5% 50 Hz - 100 Hz 0% 100 Hz - 20 kHz 1% 20 Hz - 25 kHz 2.5% AC Current Specifications (Accuracy % of reading ± mA): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±10°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + µA/°C): 20.0000 mA 0.30% + 100 µA 0.32% + 170 µA 0.32% + 170 µA 0.022%/°C + 12 µA/°C 200.000 mA 0.18% + 0.22 mA 0.20% + 1.2 mA 0.20% + 1.2 mA 0.009%/°C + 0.110 mA/°C 10.0000 A* 0.3% + 22 mA 0.32% + 120 mA 0.32% + 120 mA 0.0026%/°C + 11 mA/°C Notes: Accuracy numbers are for 5-1/2 digits and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. *: Requires 10 A shunt, CSM-10A Input Characteristics: Input Protection: Fuse F1 500 mA/250 V fast-fusing Shunt Resistor: 1 Ω Burden Voltage: < 400 mV at 200 mA AC Resistance Specifications (Accuracy % of reading ± Ω): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±10°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + Ω/°C): Extended ohm (> 2 MΩ) 0.1% + 6 kΩ 0.1% + 60 kΩ 0.1% + 60 kΩ 0.0072%/°C + 6 kΩ/°C 2.00000 MΩ* 0.012% + 9 Ω 0.077% + 27 Ω 0.080% + 27 Ω 0.0072%/°C + 2 Ω/°C 200.000 kΩ 0.012% + 5 Ω 0.077% + 22 Ω 0.080% + 22 Ω 0.0072%/°C + 2 Ω/°C 20.0000 kΩ 0.006% + 0.09 Ω 0.024% + 0.3 Ω 0.027% + 0.3 Ω 0.0020%/°C + 0.02 Ω/°C 2.00000 kΩ 0.006% + 0.05 Ω 0.024% + 0.2 Ω 0.027% + 0.2 Ω 0.0020%/°C + 0.02 Ω/°C 200.000 Ω 0.006% + 0.05 Ω 0.024% + 0.2 Ω 0.027% + 0.2 Ω 0.0020%/°C + 0.02 Ω/°C Notes: Accuracy numbers are for 4-wire resistance mode, 5-1/2 digits with autozero on and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. Measurement Modes: Ohms: 2 or 4-wire Extended Ohms: 2-wire only Maximum Lead Resistance: 10 Ω (200 Ω range), 1 kΩ (all other ranges) Additional Error for 2-Wire Resistance: 0.6 Ω Diode Testing Specifications (Accuracy % of reading ± µV): Range: 24 Hour (25°C ±1°C): 90 Day (25°C ±1°C): 1 Year (25°C ±10°C): Temperature Coefficient (% of reading/°C + µV/°C): 2 V 0.006% + 7 µV 0.024% + 22 µV 0.027% + 22 µV 0.0020%/°C + 2 µV/°C Notes: Accuracy numbers are for 5-1/2 digits with autozero on and include the effects of full and zero-scale errors, temperature variation, linearity, and noise. Test Current: 100 µA General Specifications: Settling Time: Affected by source impedance and input signal changes. Warm-Up Time: 30 minutes for measurements accurate within specifications. Altitude: Up to 2,000 m; at higher altitudes the installation category must be derated. Working Voltage: 300 V maximum between either input terminal and earth ground. Power Requirements: +5 VDC: 250 mA in operational mode Physical: Dimensions: 10 cm by 16 cm (3.9 in. by 6.33 in.) Environment: Operating Temperature: 0 to 55°C Storage Temperature: -20 to 70°C Relative Humidity: 10 to 90%, noncondensing Certifications and Compliance Specifications: CE Mark Compliance: Yes For More Pictures Please Click the Following: Picture 2 - Side View #1 Picture 3 - Side View #2 Picture 4 - Side View #3 Picture 5 - Serial Number and Part Number Tags For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $10.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 01/28/15 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“This unit is guaranteed to work.”

Brand	National Instruments
MPN	184793L-01
Model	PXI-4060
