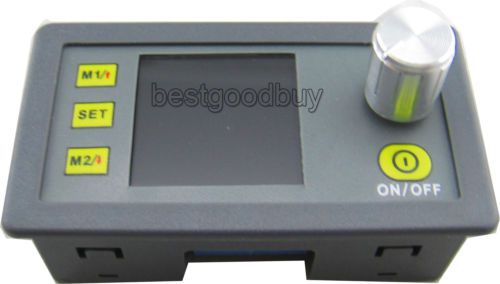

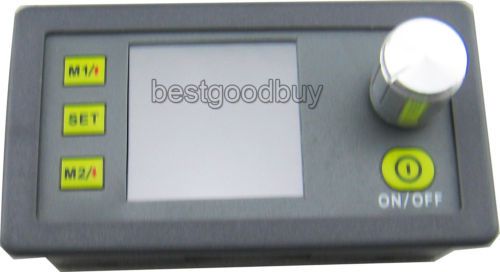

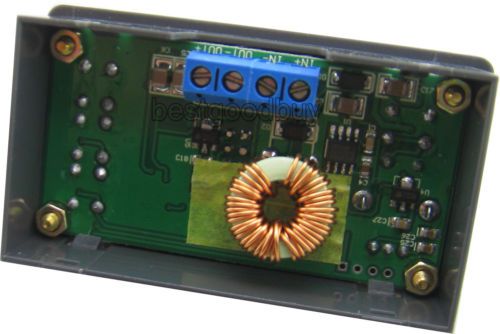

Nc Dc To Dc Converter 4.5-23v To 0-20.0v Programmable Control Buck Power Supply

US $36.60

Guangzhou ,Guangdong, China
Jan 29th

Open on mobile:
QR code

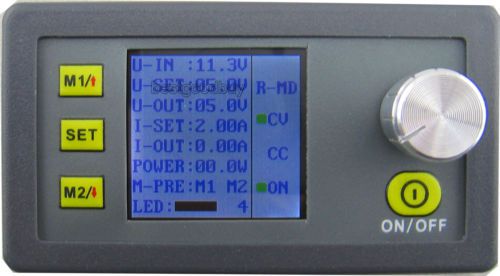

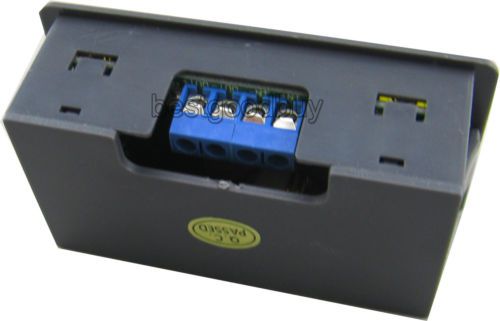

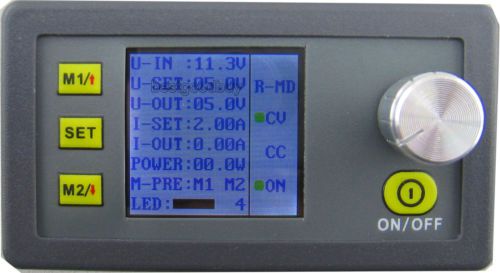

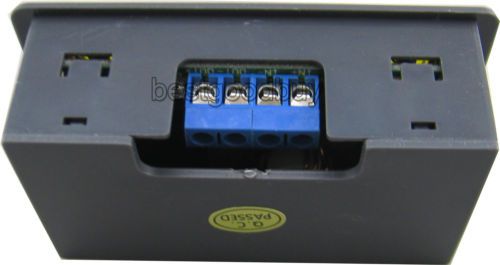

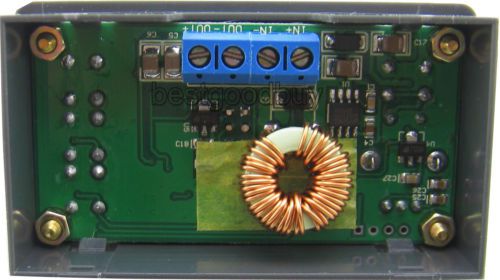

welcome to our shop! Description DC to DC converter 4.5-23V to 0-20.0V DP20V2A Constant Voltage Constant Current Programmable Control Step-down buck Power Supply Module Regulators #1400152 Product Information The constant voltage and constant current programmable control power supply module is cabinet and delicate, and it put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-20.0V, step by 0.1V. Its adjustable output current range is 0-2.00A, step by 0.01A. Boot voltages can be stored freely and the model has two groups of quick storage voltage. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the model has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power and LCD brightness. Technical parameters Weight:59g/piece Dimension:79mm*42mm*26mm (L*W*H) Open size: 71mm*39mm Input positive:IN+ Input negative:IN- Output current:0-2.00A Output power:Maximum 40W Output positive:OUT+ Output negative:OUT- Ripple frequency:About 330 KHz Input voltage range :DC 4.5-23V (23V is the limiting highest voltage. When you use it, make sure input voltage below 23V) Output voltage range DC 0V-20.0V (In step down voltage mode, input voltage must be higher than 3V), the control button can fast draw up 2 sets data. Ripple peak to peak value : 50mv (typical value) Direction for use Display introduction: U-IN: input voltage U-SET: preset voltage U-OUT: output voltage I-SET: Preset current I-OUT: output current POWER: output power M-PRE: shortcut store LED: background brightness M1: shortcut store1 M2: shortcut store 2 S-MD: setting the mode R-MD: normal operation ON/0FF: open/shut down the module output key function instruction: SET: Function setting, function confirmation; M1: Shortcut extract M1 stored data/Upturning to choose/shortcut store. M2: Shortcut extract M2 stored data/Page down to choose/shortcut store ON/OFF: open or close voltage output. Operating instructions: (1) Adjusting preset voltage: Pressing SET button, page down to U-SET, press the codding potentiometer, then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit adjusting voltage, press shortly SET. In the process of adjusting preset voltage, if you open output voltage mode by pressing the ON/OFF, the output voltage will be refreshing by increasing or decreasing the numeric value; if you close output voltage mode by pressing the ON/OFF, the output voltage will not be refreshing by increasing or decreasing the numeric value. (2) Adjusting preset current: Pressing SET button, page down to I-SET, press the codding potentiometer, then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit adjusting current, press shortly SET. (3)Power-down storage: If you want to use the present value including the preset voltage, the preset current, LCD brightness at the next time of using the module, you should store those value. In the normal operating(R-MD), Keep pressing SET key until "MEMO" in red appears on LCD display, and then loose the key, indicating the preset voltage has been stored. You can use those value next time. (4) Extract Shortcut storage value: When the system is the mode of setting mode( S-MD), Keep pressing M1 or M2 key, Shortcut storage value can be extracted. (5) Store shortcut storage value: Pressing SET button, page down to M-PRE, press the codding potentiometer, then enter the storage place of M1 or M2. In the meaning time, press shortly M1, the value would be stored in the place of M1; press shortly M2, the value would be stored in the place of M2. If you want to exit this mode, press shortly SET (6) Adjusting background brightness: Pressing SET button, page down to the place of background brightness, press the codding potentiometer, then enter to adjust numeric value. Press codding potentiometer in turn to choose the numeric value you want to adjust. Turn codding potentiometer to adjust the numeric value. If you want to exit this mode, press shortly SET. Note 1.When you do not use the module or adjust the preset voltage or current, the output will be advised to be closed in case of wrong operation of high voltage to burn the load. 2.Make sure that the setting voltage is lower than output voltage 3v at least, or else there will be alarm. 3.The input voltage must be under 23v and 23v is the highest Voltage. Please leave adequate leeway, otherwise burn it. 4.When the input voltage drops and cannot satisfy that the input voltage is higher the preset voltage about 3v, the module will automatically shut down output to prevent the module damage. 5.If the module is used under strong sunshine, the LCD will be damaged. So we do not advise you to use the module under strong sunshine. 6.When the module is used at full capacity, please pay attention to keep ventilation and heat dissipation of the module. 7.Please don't use the module to charge the battery. If the input end is not supplied the power, reverse voltage of the battery will damage the module. {if you must use the module ,please add a diode in the output } packing including: 1x DP20V2A power supply module Payment We only accept payments via paypal. All payments must be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us. Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days . We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed. if you need express post please contact us ! About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item . Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop ! Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	PRODUCT NAME	Programmable Control POWER
Output power	Maximum 40W
MODULE NAME	Regulator
Input voltage range	DC 4.5-23V
Output current	0-2.00A
Output voltage range	DC 0V-20.0V
