Ndk Nz2520sd 22.5792 Mhz Crystal Oscillator, -77 Dbc

US $12.00

  • Garland, Texas, United States
  • Jan 29th
Open on mobile:
QR code

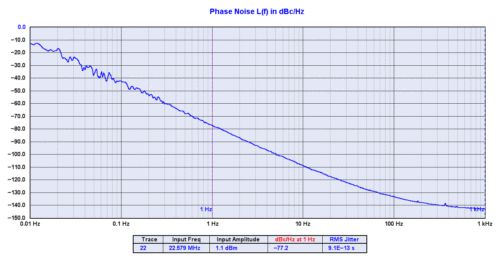

Brand new NDK NZ2502SD oscillator. Burned in for 24-hours, and measured for phase noise. Actual phase noise plot included. Units are graded via phase noise at 1 Hz. Phase noise @ 10 Hz is typically 30 dB lower. It is harder to measure at frequencies lower than 10 Hz, not to mention the numbers aren't as pretty on the data sheet, but measuring at a lower offset is a much better indication of how it will perform in a digital audio application. Compare to CCHD-957, which costs >$20. Which are not spec'ed below 10 Hz. This unit was measured down to 0.01 Hz. (Unit measured in a sealed enclosure.)
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Brand NDK
MPN 22.5792 MHz
Model NZ2520SD
