New 18 X 24 Size! - Wall Chart For Metal Lathe, Milling Machine & Drill Press

US $25.00

Hagerstown, Maryland, United States
May 2nd

Open on mobile:
QR code

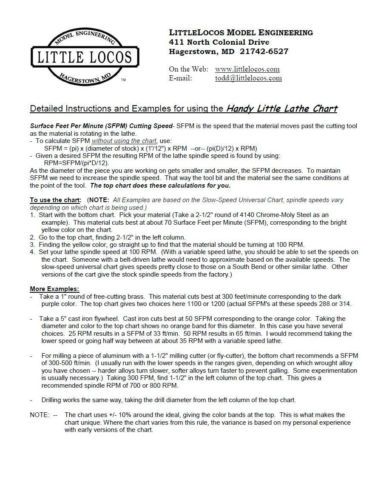

NEW FOR 2015, Littlelocos Model Engineering is proud to introduce our ...... HANDY LATHE, MILL & DRILL CHART LARGE - 18" x 24" FORMAT UNIVERSAL/EXTENDED RANGE EDITION for ALL Metalworking Machines Using High Speed Steel (HSS) Cutters or Bits Spindle Speeds from 10 to 5000 RPM Stock Diameters from 1/64" to 14" and from 0.4mm to 356mm LITTLELOCOS MODEL ENGINEERING is proud to present our HANDY LATHE, MILL & DRILL CHART - NEW FOR 2015 - an outstanding time saver for your shop. Using one chart, you can easily find the correct tool cutting angles and the proper cutting speeds for any of 22 different materials. Cutting speeds for the "Slow-Speed Universal" edition provides 24 Rounded Spindle Speeds, matching most metal lathes, milling machines, and drill presses on the market today! All cutting speeds are COLOR CODED for ease of use. To use the HANDY LATHE, MILL & DRILL CHART: 1. Choose a metal and grind your High Speed Steel (HSS) tool blank to the geometry listed on the “RECOMMENDED TOOL GEOMETRIES” table. Note the color-keyed, recommended cutting speed. 2. Find the diameter of the piece in the left column of the “SURFACE FEET PER MINUTE CUTTING SPEEDS” chart. Follow across and match the color of the recommended speed in that row to the lathe speed in the top row. Set your belts and go!! HANDY LATHE, MILL & DRILL CHART – SPECIFICATIONS and USES Each chart is a FULL-COLOR DIGITAL PRINT on 18” x 24” bright white paper. Each is FULL-SEAL HOT LAMINATED with heavy duty (5-mil) FILM. The chart is totally sealed for years of use and wipes clean with a soft cloth. We use only GBC Ultra-Clear Laminates and a commercial-quality laminator for highest quality. The Recommended Tool Geometries table gives all the angles needed to correctly grind your high-speed-steel cutter blanks to the correct cutting angles for 22 DIFFERENT MATERIALS. The Surface Feet Per Minute Cutting Speed table calculates the speed that the metal stock passes by the tool tip. THIS IS THE CRITICAL SPEED IN WORKING WITH METAL as each different material likes to be cut at different speeds. GRAPHICAL INSTRUCTIONS ARE PRESENTED ON THE FRONT OF THE CHART, PLUS TWO PAGES OF DETAILED INSTRUCTIONS are included with each chart, showing the definitions for each of the grinding angles and walking through a typical use for the chart. USE IT BACKWARD for your MILLING AND DRILLING OPERATIONS as the cutting speeds apply to all HSS cutters. Just take the rotating cutter diameter as the stock diameter and read the recommended RFM from the top of the chart. SHIPPING INFORMATION: FREE US Shipping. $7.00 flat-rate to Canada. $9.00 flat-rate International shipping. - We typically ship within 1 business day of receipt of order PAYMENT INFORMATION: Paypal Only. Please see our “ABOUT ME” page if you would like to know more about Littlelocos terms, policies, recent feedback, etc. Thanks for looking! Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	United States
Model	18x24i
Brand	Littlelocos
