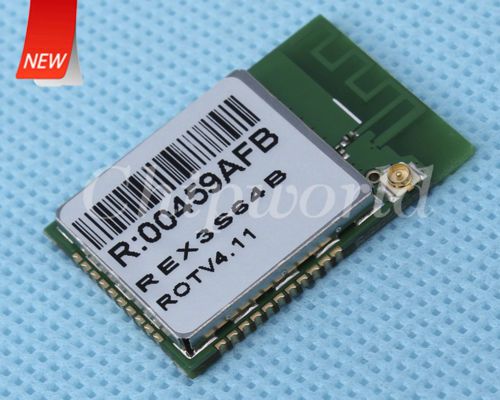

NEW 2.4G Wireless Module STM32W Smart Home Standard ZigBee Module 1mW, US $20.88 – Picture 0

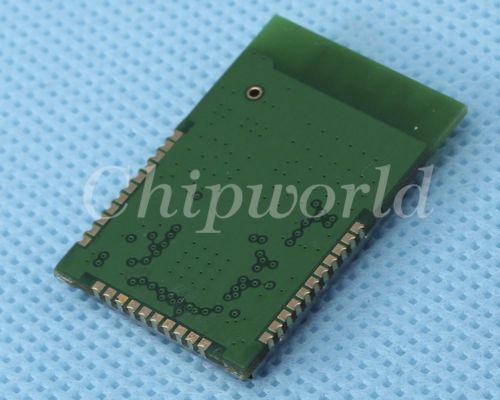

NEW 2.4G Wireless Module STM32W Smart Home Standard ZigBee Module 1mW, US $20.88 – Picture 1

NEW 2.4G Wireless Module STM32W Smart Home Standard ZigBee Module 1mW, US $20.88 – Picture 2

New 2.4g Wireless Module Stm32w Smart Home Standard Zigbee Module 1mw

US $20.88

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Recommendations For You 40% Off, $2.79 Now 50% Off, $2.65 Now 20% Off, $3.60 Now 20% Off, $3.60 Now 50% Off, $5.46 Now Visit my eBay Store:ChipWorld Product Name: NEW 2.4G Steady Wireless Module STM32W Smart Home Standard ZigBee Module 1mW More Items In Our Store,Click Here! SKU: 4932 Parsts No. : Package: Brand: Quantity: 1 2.4G Wireless Module STM32W Smart Home Standard ZigBee Module 1mW 1. Product Information Model :REX3S Product name: Standard ZigBee SMD module Built-in amplifier: No Encapsulation: Patch BAND :2.4GHz Chip :STM32W108CBU64 Processor : 32-bit ARM Cortex-M3 processor MAC layer protocols: ZigBee / IEE 802.15.4 standard Basic Introduction:REX3S is a compact, high sensitivity, low power ZigBee module?The module complies with IEE 802.15.4 specification,Can be used for wireless sensing, control and data acquisition?The module is easy to use, saves space and provides reliable data transmission between devices. 2. Product display 3.Details 4. Antenna configuration 5. Measured distance 6.Product details 7.Chip and network protocol 1)Chip Introduction ZigBee module configuration utility chip has STM32W108CBU61, STM32W108CBU64,EW351 and EM357. STM32W108CBU64 8k RAM,128k Flash,Support SimpleMAC, visit the IEEE802.15.4 bottom,Support RexBee protocol, convenient for the user to the Mesh network. STM32W108CBU61 8k RAM,128k Flash,Version is slightly lower than the Ember,Support ZigBee Pro, support RexBee agreement,Convenient for the user to the Mesh network. EM351 12k RAM,128k Flash,Ember embedded ZNet protocol stack,Support ZigBee Pro,Does not support the RexBee network protocol,Customers can according to the module built-in Ember ZNet protocol stack for development, development requires Ember purchasing dedicated development kits and development environment. WM357 12k RAM,192k Flash,Ember embedded ZNet protocol stack,Support ZigBee Pro,Does not support the RexBee network protocol,Customers can according to the module built-in Ember ZNet protocol stack for development, development requires Ember purchasing dedicated development kits and development environment. 2)Network Firmware Zig Bee network firmware called RexBee firmware,Networking protocol is based STM32WCBU64 chip IEEE802.15.4 SimpleMAC layer development,Support for dynamic networking and ZigBee routing protocol (only applicable to ST64 chip),If users have developed their own ZigBee protocol capabilities,Can according to ST's library files, carries on two times of developments. RexBee firmware is divided into four types:COO,Router,ZED,HHU.A ZigBee network is 1 COO. N Router, N ZED (optional): Coordinator,COO COO node is the logical center of a wireless network center,Generally,COO acts as a gateway in wireless network,To achieve the exchange of information between the outside and the wireless network,COO nodes can set up and manage a new wireless network,Set up a wireless network nodes, the COO can receive other nodes to join the network Request to make wireless network extension,COO nodes usually use wireless power supply, no dormancy, and can manage the dormant node.the serial port parameter configuration is 1152008M1. ROUTER The ROUTER node has routing capabilities, ability to other nodes of the network relay, forwarding data,The ROUTER nodes can't build a new wireless network,But added to an existing wireless networks In the network,The ROUTER node is added to the wireless network, can accept the other node joins the network, so as to realize the expansion of wireless networks,The ROUTER node is usually use cable power supply,no dormancy, and can manage the dormant node.the serial port parameter configuration is 96008N1. Zigbee End Device,ZED ZED node is the terminal node in wireless networks, often use batteries, are dormant nodes,Also can not accept other nodes to join the network,Node ZED to dormant node management ability through other devices (COO or ROUTER) can be added to the wireless network, and the node is called the parent node of the ZED (PARENT).Because the ZED most of the time in a dormant state, sothe PARENT node need to complete the wireless data buffer for the ZED and forwarding, the serial port parameter configuration is 96008N1. For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request 2pcs 2.4GHz NRF24L01+ Antenna Wireless Transceiver Module For Microcontrol new 4pcs 433Mhz WL RF transmitter and receiver link kit for Arduino/ARM/MCU 20pcs 433Mhz WL RF transmitter and receiver link kit for Arduino/ARM/MCU good 5pcs new Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test DIY 9PCS NEW TEC1-12706 Thermoelectric Cooler Peltier 12V 60W 92Wmax good $ 3.8 + free shipping $ 6.0 + free shipping $ 28.0 + free shipping $18.0 +free shipping $ 28.0 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
