New Andrew Commscope Al5nm-psa N Type Male Positive Stop 7/8 Heliax Connector Ps

US $25.00

Atlanta, Georgia, United States
Feb 23rd

Open on mobile:
QR code

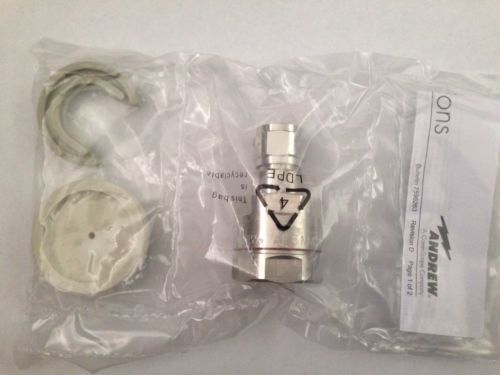

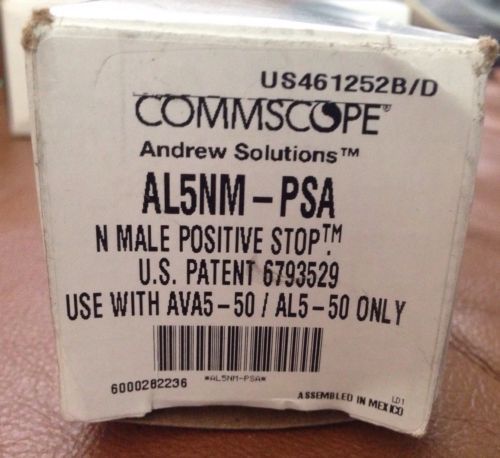

This auction is for a brand new Andrew/Commscope AL5NM-PSA 7/8 in Heliax Positive Stop N Type Male Connector. Good luck and happy bidding. Positive Stop™ Connectors Secure, foolproof, no-special-tools required connection every timeEase connector attachment issues and ensure excellent RF transmission line performance with Positive Stop Connectors from Andrew. Revolutionary Positive Stop Connectors for HELIAX corrugated coaxial cables require no special tools or torque wrenches, eliminating both guess work and time consuming measurements. Using standard wrenches and in less than one rotation, Positive Stop Connectors give the installer a clear visual and mechanical verification of a correct fit, sealing out water and sealing in excellent electrical performance. Positive Stop Connectors are waterproof, even unmated. The connectors' easy verification eliminates the need to control torque levels and provides consistent attachment integrity and electrical performance. No special tools required Full tightens in less than one rotation Visual and mechanical fit verification Integrated sealing mechanism Faster, easier installation Excellent electrical performance General Specifications Interface N Male Body Style Straight Brand HELIAX® | Positive Stop™ Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 – 5200 MHz Cable Impedance 50 ohm 3rd Order IMD, typical -116 dBm @ 910 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltage 2000 V Outer Contact Resistance, maximum 0.30 mOhm Inner Contact Resistance, maximum 2.00 mOhm Insulation Resistance, minimum 5000 MOhm Average Power 0.6 kW @ 900 MHz Peak Power, maximum 10.00 kW Insertion Loss, typical 0.05 dB Shielding Effectiveness -130 dB Outline Drawing Click on image below to enlarge. Mechanical Specifications Outer Contact Attachment Method Ring-flare Inner Contact Attachment Method Captivated Outer Contact Plating Trimetal Inner Contact Plating Silver Attachment Durability 25 cycles Interface Durability 500 cycles Interface Durability Method IEC 61169-16:9.5 Connector Retention Tensile Force 1334 N | 300 lbf Connector Retention Torque 8.13 N-m | 72.00 in lb Insertion Force 66.72 N | 15.00 lbf Insertion Force Method MIL-C-39012C-3.12, 4.6.9 Pressurizable No Coupling Nut Proof Torque 4.52 N-m | 40.00 in lb Coupling Nut Retention Force 444.82 N | 100.00 lbf Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22 Dimensions Nominal Size 7/8 in Diameter 37.21 mm | 1.47 in Length 86.11 mm | 3.39 in Weight 308.20 g | 0.68 lb Environmental Specifications Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F) Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F) Immersion Depth 1 m Immersion Test Mating Unmated Immersion Test Method IEC 60529:2001, IP68 Water Jetting Test Mating Unmated Water Jetting Test Method IEC 60529:2001, IP66 Moisture Resistance Test Method MIL-STD-202F, Method 106F Mechanical Shock Test Method MIL-STD-202F, Method 213B, Test Condition C Thermal Shock Test Method MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C Vibration Test Method IEC 60068-2-6 Corrosion Test Method MIL-STD-1344A, Method 1001.1, Test Condition A Standard Conditions Attenuation, Ambient Temperature 20 °C | 68 °F Average Power, Ambient Temperature 40 °C | 104 °F Return Loss/VSWRFrequency Band VSWR Return Loss (dB) 50–1000 MHz 1.02 39.00 1010–2200 MHz 1.03 38.00 2210–3000 MHz 1.04 35.00 3010–4000 MHz 1.07 29.00 4010–5200 MHz 1.13 24.00

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	AL5NM-PSA
Brand	ANDREW COMMSCOPE
MPN	AL5NM-PS
