New Aprs Radio Board With Bluetooth Module Common Tnc For Yaesu Icom

US $77.99

shenzhen, China
Jun 9th

Open on mobile:
QR code

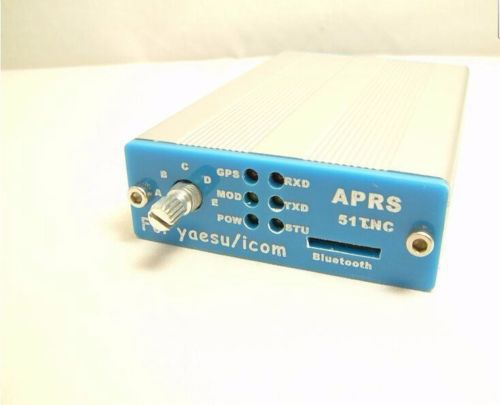

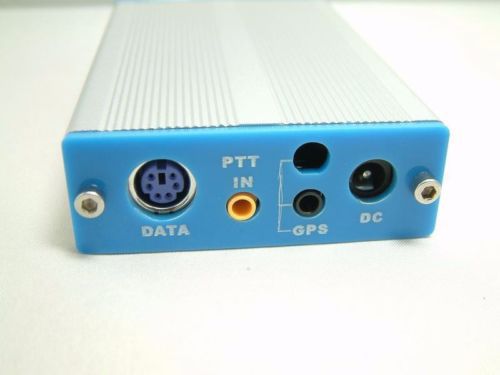

New APRS Radio Board With Bluetooth Module Common TNC for YAESU ICOM Description Wagon version TNC host Features: 8-30V wide voltage input, reverse polarity protection, micro-power: 12V / 0.01A, size: 70 * 24mm. 3.3V low-voltage high-speed CPU STC12LE5A60S2 Import FX604 hardware modem circuit 5-speed fast function selector switch, blind transfer, fast switching while driving. Clear clear LED status indicators DATA standard interfaces, optical isolation of PTT linkage interface RF two-way codec KISS formats Bluetooth or serial bi-directional communication Bluetooth (optional), 9600 rate Support 4800 rate 9600 rate GPS, automatic identification Supports manual GPS beacon (optional PTT linkage), smart GPS beacons, the timing GPS beacons, support voltage report Support DIGI Parameter settings memory ISP firmware upgrade support 1, FUN function gear switch: A file: KISS mode, do not send any beacon, does not respond to manual PTT control. B file: hand microphone PTT linkage hands meters the call is over release PTT, automatic trailing transmit APRS data. C file: Intelligent GPS beacons, GPS beacons transmit automatically depending on the speed, course. D profile: timing of GPS beacon, according to the time set emission GPS beacon E file: DIGI relay mode, receiving and forwarding data in line with set conditions. ● Either stall mode when not connected to GPS, GPS positioning is not valid data, will not transmit GPS data beacon ● Either stall mode, do not affect the RF decoding (decoding at any time), will not affect Bluetooth / Serial send and receive data. ● Either stall mode, GPS always in communication, GPS status can be obtained by GPS lamp. 2, LED indicator: GPS status indicator: - Off: no connection GPS - Slow flashing: GPS positioning is not valid data, automatic identification 4800/9600 rates, the state of communication errors - Solid: GPS has been positioned, the output of valid data MOD: Indicates PTT IN state, when PTT is pressed, lights, release the extinguished. POW: standby, interval 1S flashes to indicate that the board is running normally. RXD: Radio receiving the complete data, synchronized flashes after successfully decoded with the Bluetooth / serial output data. TXD: When the station transmits data shiny shiny. STU: Bluetooth status lights, regardless of the TNC, Bluetooth is not connected, flashing after the connection Always. ● TNC power-up or reset, the above LED (except STU) blinks several times, indicating successful initialization, and for detecting LED. Instruction Set Description: Note: All settings command should + Enter (ENTER key). After setting the parameters, the board will reset and the output of all parameters. Instruction only three. Command 1: AT + DEMO =? Description: Sets the recovery board defaults. Command 2:! GPS + BEACON = BG1WPR-9,0,, r, GPS BEACEN, 1,60! Description: Sets the beacon callsign, ID, relaying path, type, icon, custom information with voltage report, the timing beacon time. It must be seven parameters, separated by a comma in the middle. The default data analysis: BG1WPR-9, 0,, r, GPS BEACEN, 1, 60 1, GPS + BEACON = fixed character 2, BG1WPR-9 beacon callsign, default callsign NOCALL, capital, up to six. Beacon SSID, default 9, the parameter value range 0-15. ID call sign and between the symbol "-" separated. 3,0 beacon transmitted data set contains WIDE1-1 or WIDE1-1, WIDE2-1 relayed path information. 0 = No path 1 = WIDE1-1 2 = WIDE1-1, WIDE2-1. Default = 1, which contains WIDE1-1. 4 ! It indicates the type of character, a word of fixed length, generally do not change. To change the reference APRS protocol manual. 5, r the icon that represents the style of the map display on the server, a fixed-length word, referring to "APRS icon set" Change. 6, GPS BEACEN! Represents the custom message up to 80 characters, English. If you want to write PHG information, fixed form. Note 1. 7,1 beacon information section at the end is inserted TNC voltage report. 1 = yes, 0 = no. 8,60 timing of beacon transmission time, range: 0-65535 seconds, when set to 0, it does not send beacons. TNC effective the timing beacon mode. Note 1: Information section of the top grid, the first seven characters, when filled PHG information, the server will automatically recognize and display. Command 3: AT + SETUP = 2,2,1,0,0 Description: Sets the TNC, it must be five parameters, separated by a comma in the middle. Chapter 1: PTT transmission delay time, unit 250ms, the parameter value range 1-9, that 250ms-2250ms. Default 2, namely 500ms. Chapter 2: packet transmission interval, 50MS, default 2, namely 100ms. Chapter 3: DIGI mode when receiving data containing WIDE1 path forwarding, 0 = disabled, 1 = enabled. Default = 1, which is enabled. Chapter 4: DIGI mode when receiving data containing WIDE2 path forwarding, 0 = disabled, 1 = enabled. Default = 0, which is closed. Bit 5: Allow forwarding inbreaking name, 0 = disabled, 1 = enabled. Default = 0, which is closed. Payment 1.we only accept payment view paypal. It is fast, Easy and Safe. 2.All major credit cards are accepted through our secure payment processor PayPal 3.Payment must be received within 7 business days of auction closing. Shipping 1. If you intend to bid for more than 1 item, then we can ship them together. The total shipping fee will be the sum of individual shipping fees. There is no further discount. 2. We only ship to ebay registered address. So please be assure your address in ebay is Correct and Valid. 3. Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. 4. Delivery time depends on destination and other factors, it may takes up to 30 business days. 5. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: Country Shipping time USA 8-12 business days UK 12-20 business days Australia & Canada 12-20 business days Europe & Others 20-25 business days The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! We ship item promptly and please rate us 5 star on shipping time according to ebay rules. Feedback If you are considering giving a neutral or negative or a low DSR(4 star or below), do write to us and give us an opportunity to address your concerns first. We are always stand-by to help for any questions or concerns. Positive feedback is automatically left for you after you left to us positive feedback. Contact Us 1.If you’re in any way dissatisfied or any question with your purchase,please feel free to contact us via ebay messages.And will response within 48 hours.We will try our best to solve it for you.We are committed to ensuring that you are completely satisfied with every transaction. Your satisfactory is our goals 2.Please allow 1-2 business days for us to response. If you do not receive any reply from us,please check your email ensuring your mailbox has not reached full size. 3.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 4.If you encounter any trouble. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have and will try our best to resolve the issues. 5.We care about our valued customers and will always try to help you. So if you have any problems, please contact us promptly. Return Description 1. 12-months Warranty for defective items (excluding items damaged and/or misused after receipt). Buy with confidence 2. Refund or replacement request is available only the requests within 2 week after parcel received & returning the item as the same condition as received. 3. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. 4. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. 5. Return shipping is to be paid by the Buyer.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
MPN	Does not apply
Model	TNC
Country/Region of Manufacture	China
UPC	Does not apply
