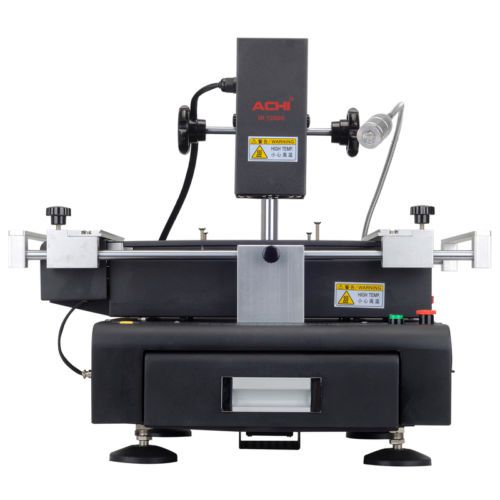

Newest Bga Achi Ir 12000 Dark Infrared Rework Bga Station For Reworking Bga

US $570

Portsmouth, United Kingdom
Jan 31st

Open on mobile:
QR code

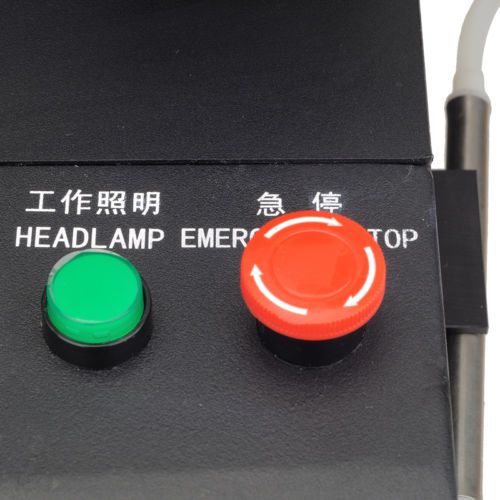

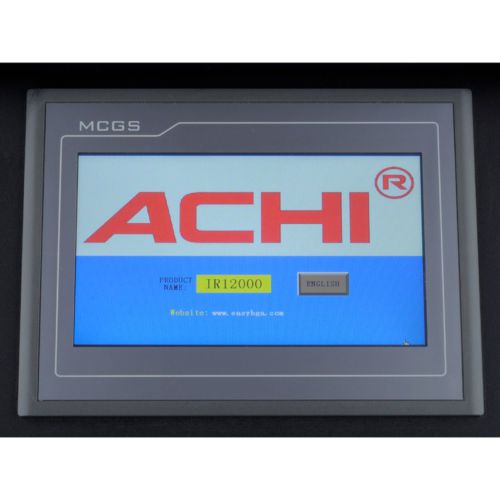

Newest BGA ACHI IR 12000 Dark Infrared Rework BGA Station for Reworking BGA This is my Skype ID: tinalongping1 Please add me,we can Communicate on there directly. Our work time is(GMT+9) You can leave a message for me at the Non- working time.after i see it i will reply to you as soon as possible. Any problems we can solve as the different time,it needs time to communicate well. so please don't open a case on ebay or paypal without contact with us. Quick Details: Type: Other Place of Origin: Guangdong China (Mainland) Brand Name: ACHI Model Number: IR12000 Voltage: 220V Rated Capacity: 3650W Dimensions: 570mm*520mm*420mm Usage: for BGA reworking Certification: CE After-sales Service Provided: No overseas service provided upper heater: Dark IR 400W Bottom Preheating Power: 3200W upper heater Size: 80x80mm Bottom Heater Size: 350x210mm Control mode of bottom heater: Independent temperature control precision±0.5 Control mode of upper heater: Independent temperature control precision±0.5 PCB Fixed Platform: Slide guide bracket upper heating position control: up,down,right,left LEDAuxiliary Light: yes ForceAir Cooling: yes Specifications: ACHI IR12000 Rework Station 1.Top heater uses ELSTEIN RFS/80 400w Ceramic 2.OMEGA K-type sensor 3.MCGS Touch Screen System ACHI IR12000 is a multi-function semi automatic infrared soldering system with Embedded Industrial PC, Drawer design 7” high definition touch screen interface,PLC control and ELSTEIN RFS/80 400W Ceramic(Made in Germany,CE Passed). TECHNICAL SPECIFICATIONS FEATURES: 1.ACHI IR12000 Top heater uses ELSTEIN RFS/80 400 Ceramic (Made in Germany,CE Passed) .The max temperature could up to 750°C. 2.Its high quality top heater and large top heater area(80*80mm) makes CPU block, Various shield cover and component slot get repaired much easier. 3. ACHI IR12000 was packaged with 6pcs rework support jig.There are 6pcs Screw holes in left and right sides,and 34pcs in the front and back sides,which could help to fix the mainboard in any position. 4. Embedded Industrial PC, Drawer design 7” high definition touch screen interface, PLC control, and instant profile analysis function. Real time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary. 5. Three temperature areas(Top IR Heater,Bottom Hot air Heater and Preheating IR Plates) can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface. 6. There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via Touch Screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control. 7. Uses advanced OMEGA K-type thermocouple and the temperature detection is much more accurate. 8. It uses High technology of closedloop Temperature control and automatic temperature adjustment system,with PLC and temperature module to enable precision temperature control of ±2 deg C.External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile. 9. Flexible and convenient removable fixture on the PCB board which protect sand prevent damage to PCB. It can also adapt to rework various BGA packages. 10. Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement. 11. It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip. 12. Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop,so that the machine will not age after heated up. 13. Equiped Emergency Switch and Automatic power -off protection device help avoid accident when emergency happens. 14. ACHI IR1200 can be connected to computer or notebook with USB interface to ungrade the Machine software. If you can't wait for the auction end,this is the fixed price item number:171252365840,please you buy it from there. Below is the details for this full set ACHI IR12000 BGA Rework Station: 1 *ACHI IR12000(220V) 1 * full set 323pcs heat direct BGA stencils 1 * heat direct BGA reballing station 10 * bottles leaed solder ball 25k(0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm, 0.55mm,0.6mm,0.65mm,0.76mm) 1 * bottles original Amtech NC-559-ASM-UV(TPF) No Clean solder flux 10cc 1 *roll aluminum foil tape 50mm*40M 1* roll high temperature tape 50mm x 33M 1* roll soldering wire 0.6mm 100g 1* roll desoldering braid 25mm x 1.5M 1 * tweezer ESD15 /16 /17 1 * scraper 1 * anti-static brush 1 *pair of anti-static gloves 1 * XBOX360 support 1 * 40G/60G PS3 support Note: the machine will be shipped from UK,but the repair parts will be shipped from china. The Real Pictures of ACHI IR12000 BGA Rework Station ELSTEIN RFS-80 80*80 top heater,Made in Germany,best quality Preset USB Ports:You don't have to dissemble machine when upgrade its software Payment 1. We only accept the payment by PayPal. 2. When you payment, please leave your correct address and phone number, we only ship the product to the PayPal address. 3. Immediate payment is required. 1. Shipping time United States Delivery Service Shipping Time Delivery from US USPS 3-5 business days Delivery from China ePacket 7-15 business days DHL 5-7 business days FedEx(Preliminary) 7-10 business days United Kingdom Delivery Service Shipping Time Delivery from UK warehouse Royal Mail(Preliminary) 3-5 business days Parcelforce 1-3 business days DPD 2-4 business days DHL 2-5 business days Delivery from China (Goods' worth is more than 17 pounds need to pay customs duties& VAT) DHL(Preliminary) 5-7 business days FedEx 7-10 business days Australia?Mexico?Canada and Other Asian countries Delivery from China Post 15-30 business days DHL 5-7 business days FedEx(Preliminary) 7-10 business days France?Italy?Spain?Portugal and other European countries Delivery from UK/Germany warehouse DPD 3-7 business days DHL 3-7 business days Delivery from China DHL 5-7 business days FedEx(Preliminary) 7-10 business days 2. Problems always happen, we pledge to do best to solve problem. We welcome everyone to communicate with us in eBay community. But, just in case, anyone open dispute/negative feedback without bilateral communication. It is not welcome and we definitely drag eBay ID to block list. 3. How to contact us by eBay message Purchase history---> contact seller---> select a topic---> other Please don’t select either I haven’t received my item or item I received is not as described. 4. If you don’t received your item(Post is economic but poor service quality. It may have some risk item loss) within the regular transport time, please contact us by eBay Message or Skype as soon as possible, we will deal with it within 24 hours and make sure your satisfaction, through communication, we can give you a refund or a replacement product. Please don’t arbitrarily open disputes and leave a neutral/negative feedback or low DSR without any communication with us. 5. If the goods you receive are partial damaged or don't match with the item description, please take some photos and videos and sent them to us as soon as possible. After checking the photos and videos, we can reissue products or accessories to you. Please don’t arbitrarily open disputes and leave a neutral/negative feedback or low DSR without any communication with us. Customs Tax & Duty 1. As long as item location is China (Except for the United States), all the parcels bound to target countries subject to tax&duty. For specific tariff, please indly contact local customs house for details. All tax&duty are at buyer’s expense. 2. When parcel arrives at inbound country customs house, buyer is liable to clear cargos according to customs staff requirement within certain period. The clearance period is determined by local customs and not included in estimated shipping time. 3. For each parcel, we will take a declaration of 60% the total value of goods .If you have special requirements for the product value of the declaration, please leave a message! Thank you! Return Policy Repairing: In most cases when item got problems we shall send you necessary parts with free cost for your own replacement so you needn't return the machine to us for repairing. And we shall provide online technical guide for you to replace the parts. Exchange: All items from us will be entitled to a 1to1 exchange if you find the item is faulty within 14 days when item is signed. Please note returning item must IN ORIGINAL SHAPE,that means this warranty DOES NOT COVER damage caused by mishandling, abusing, alteration, neglect, disassembly or dropping. After checking we shall send you a new set. Buyer take liability of returning cost. Return: We offer refund if the item is not to your liking. 25% restocking fee will be applied on all kinds of refund. And the returning cost would at the buyer's responsibility. Customer Service Support Country Working Time China Beijing Time 9:30am~6:00pm(Monday ~ Friday) United States New York Time 11:30pm~5:00am(Sunday ~ Friday) United Kingdom London time 2:30am~11:00am(Monday ~ Friday) Other EU countries 3:30am~12:00am(Monday ~ Friday) *If you have any questions about products or transportation, please contact us before bidding or payment! Thanks. *Sometimes we will send an eBay message to tell you something about the product or transportation information before shipment, it will need you confirm, so please remember to check your E-mail after payment. * After you receive the goods, if you have any questions, please contact us by eBay E-mail or our Skype. Feedback * Our service may be not best but pledge to become better and better. * If you have any displeasure on our product, please no hesitate to tell us. We will help you to solve it. Your satisfaction is our first priority. We appreciate your positive feedback. * We sincerely ask you not to leave negative feedback or low DSR before contacting us. No seller can ensure no problem but value how to solve problem. * Any unfriendly behavior is not welcome, such as neutral/negative feedback or low DSR without any communication with us. We will add you in our block list and not deal with you anymore. Thank you for your understanding. Engineered for professional eBay sellers! On Dec-27-14 at 16:23:41 PST, seller added the following information:
