Newest Leadshine Hbs507 3-phase Hybird Servo Drive With 573hbm20-1000 Motor

US $185.00

CD, China
Mar 7th

Open on mobile:
QR code

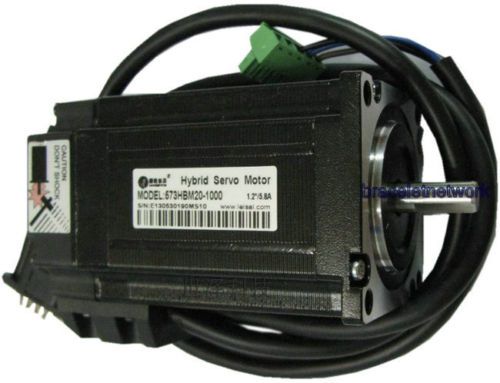

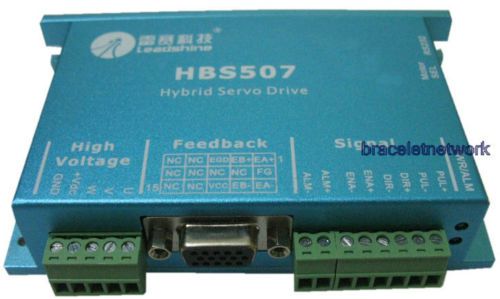

Newest leadshine HBS507 3-phase HYbird Servo Drive with 573HBM20-1000 Motor Description(HBS507): The HBS series provides an alternative for applications requiring high performance and high reliability as the servo is in the only choice, meanwhile it remains cost-effective. The system includes a 3-phase stepper motor with a fully digital, high performance drive and an internal encoder which is used for close the position, speed and current loops in real time, just like servo systems. it combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements on both, while at a fraction of the cost of the servo system. Feature: updated Broader operating range – higher torque and higher speed Closed-loop, eliminates loss of synchronization Reduced motor heating and more efficient a high torque margin is not necessary mooth motion and low motor noise with Fast response, no delay and almost no settle time No Tuning and always stable with high torque at starting and low speed, high stiffness at standstill SPECIFICATIONS: SPECIFICATIIONS HBS507 Min Typical Max Unit Output current 0 - 8.0 (Peak) A Input voltage 20 36 50 VDC Logic signal current 7 10 16 mA Pulse input frequency 0 - 200 kHz Isolation resistance 500 M? Specifications:(573HBM20-1000 Motor): Step angle 1.2° Position accuracy 1.2°± 0.06° Number of phase 3 Temp rise(Max.) 80 Celsius Dielectric strength 500VDC Insulation resistance 100 MOhm(500VDC) ControlLLING Signal Connector - Screw Terminal Pin Name I/O Description 1 PUL+ I Pulse signal: In single pulse (pulse/direction) mode, this input represents pulse signal, each rising or falling edge active (software configurable, see hybrid servo software operational manual for more detail); In double pulse mode (software configurable), this input represents clockwise (CW) pulse, active both at high level and low level. 4-5V when PUL-HIGH, 0-0.5V when PUL-LOW. For reliable response, pulse width should be longer than 10?s. Series connect resistors for current-limiting when +12V or +24V used. The same as DIR and ENA signal. 2 PUL- I 3 DIR+ I Direction Signal: In single-pulse mode, this signal has low/high voltage levels, representing two directions of motor rotation. In double-pulse mode (software configurable), this signal is counter-clock (CCW) pulse, active both at high level and low level. For reliable motion response, DIR signal should be ahead of PUL signal by 5?s at least. 4-5V when DIR-HIGH, 0-0.5V when DIR-LOW. Please note that rotation direction is also related to motor-driver wiring match. Exchanging the connection of two wires for a coil to the driver will reverse motion direction. The direction signal’s polarity is software configurable. 4 DIR- I 5 ENA+ I Enable signal: This signal is used for enabling/disabling the driver. In default, high level (NPN control signal) for enabling the driver and low level for disabling the driver. Usually left UNCONNECTED (ENABLED). Please note that PNP and Differential control signals are on the contrary, namely Low level for enabling. The active level of ENA signal is software configurable. 6 ENA- I 7 ALM+ O Alarm Signal: OC output signal, active when one of the following protection is activated: over-voltage, over current, short circuit and position following error. This port can sink or source 20mA current at 24V. In default, the resistance between ALM+ and ALM- is low impedance in normal operation and become high when HBS57 goes into error. The active level of alarm signal is software configurable. See Hybrid servo software operational manual for more detail. 8 ALM- O Encoder Feedback Connector – DSub15 Female Pin Name I/O Description 1 EA+ I Encoder channel A+ input 2 EB+ I Encoder channel B+ input 3 EGD GND Signal ground 4 HW I Reserved 5 HU I Reserved 6 FG GND Ground terminal for shielded 7 EZ+ I Reserved 8 EZ- I Reserved 9 HV I Reserved 10 NC - Not Connected 11 EA- I Encoder channel A- input 12 EB- I Encoder channel B- input 13 VCC O +5V @ 100 mA max. 14 NC - Not Connected 15 NC - Not Connected Power and Motor Connector- Screw Terminal Pin Name I/O Description 1 U O Motor Phase U 2 V O Motor Phase V- 3 W O Motor Phase W 4 +Vdc I Power Supply Input (Positive) 20-45VDC recommended, leaving rooms for voltage fluctuation and back-EMF. 5 GND GND Power Ground (Negative) Delivery Time:(working time means 5 days a week, not including saturday and sunday.the following is only the estimated delivery time, the actual delivery time may vary due to many reason as custom checking, weather,post strike etc. please be aware of this uncertain international shipping,no seller may control the actual delivery time once it shipped, if you could not accept delay in any circumstance, please do not purchase,thank you very much for your understanding!) The item will be shipped by fedex IE to U.S.A and west EU country, which will takes not over than 2 weeks, but to other country,we shipped by airmail, which will takes much time than u.s.a and west Eu country as russia, brazil,chile, berlus, and others) U.S.A:10-12 working days(by fedex IE service) West EU country: 12-20 working days(by fedex IE service) East European country: 20-30working days(by airmail) Asia:10-12 working days(by air mail) Australia:10-15 working days(by airmail) other:20-30 working day(by airmail) Service: We response all mails on ebay only within 24-48 hours for any your questions.Returning is acceptable as your request within 10 days after the delivery. Feedback:We try our best to fully satisfied all buyers in any cases. Your postive feedback is one of the top priority things in our transation. Please Please offer us chance to serve you before any negative.
