Newport 460 3d/xyz Stage With 3 860a Drives & 860-c2 4 Axes Controller

US $1600

  • Wadsworth, Illinois, United States
  • Mar 8th
Open on mobile:
QR code

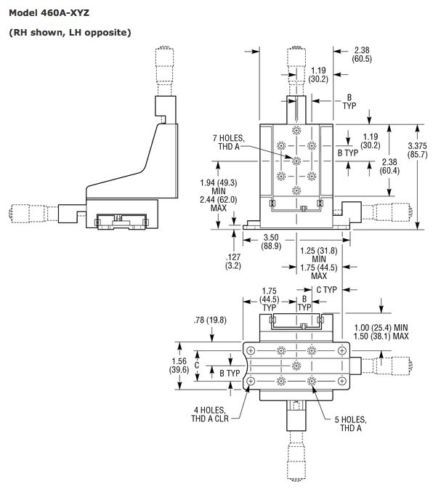

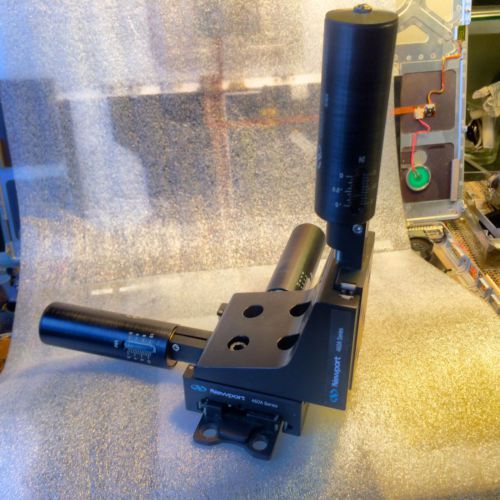

This lot includes: 1. Newport 460 A XYZ 3Dstage 2. 3 860A Motorizer actuators (13 mm) 3. Newport 860-C2 Programmable or manual Controller to control  4 axes. 4. 3 motor cables to connect motors with controller 5. Manual PDF 6. Basic, LabView 3 and 4 drivers are included on CD The 460A-XYZ 0.5 inch (12.7mm) Travel 3 Axis Quick-Mount Linear Stages has an integrated, yet modular, design allowing for increased versatility. The Z Axis Stage/Bracket is user removable allowing conversion of an XYZ Model to an XY Model. The 460A-XYZ features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The stages are spring loaded against the drive actuator for backlash free motion. Vertical-drive assemblies carry the load through the actuator spindle rather than the springs for positive load support. Three required actuators and controller unit are included. Model 460A-XYZ Travel Requirements 0.5 in. (12.7 mm) Axes of Travel X, Y, Z Travel 0.50 in. ( 12.7 mm) Load Capacity 15 lb ( 67 N) Bearings Ball Bearings Material Aluminum Thread Type 1/4-20 Load Capacity, Vertical 5 lb ( 22 N) Precision High Base Material Aluminum Angular Deviation <150 µrad Special Features Low Profile Actuators Required Sold Separately Type Standard Performance
“NO DEFECTS, tested works like new”
Brand Newport
Country/Region of Manufacture United States
Model 460A/3X-860-A/ CMA 25CC
Country of Manufacture United States
