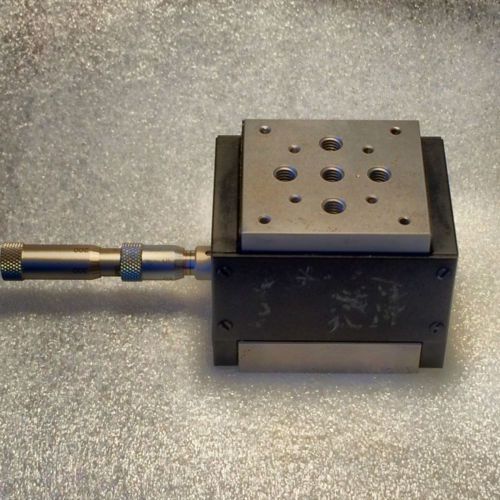

Newport M-MVN50 Vertical Translation Stage Precis Jack w Diff DM11-16 Micrometer, US $395.00 – Picture 0

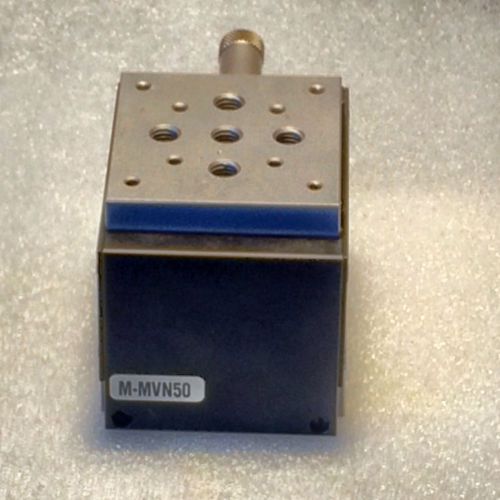

Newport M-MVN50 Vertical Translation Stage Precis Jack w Diff DM11-16 Micrometer, US $395.00 – Picture 1

Newport M-MVN50 Vertical Translation Stage Precis Jack w Diff DM11-16 Micrometer, US $395.00 – Picture 2

Newport M-MVN50 Vertical Translation Stage Precis Jack w Diff DM11-16 Micrometer, US $395.00 – Picture 3

Newport M-mvn50 Vertical Translation Stage Precis Jack W Diff Dm11-16 Micrometer

US $395.00

Wadsworth, Illinois, United States
Jan 30th

Open on mobile:
QR code

The M-MVN50 Precision Ball Bearing Vertical Linear Stage provides precise 8 mm manual height control with micron-scale sensitivity. Its high load capacity makes it especially suited to vertical positioning of heavy payloads. The stage utilizes an inclined plane design consisting of two precision-machined, opposing wedge blocks. Horizontal translation of the lower wedge is transformed into vertical motion of the upper wedge by means of inclined ball races. For linear, backlash-free travel, ball races are fabricated from precision-ground tool steel and are pre-loaded by a spring. A rotation of one division on the micrometer scale corresponds to a vertical displacement of 5 µm. Actual manual positioning sensitivity is about 1 µm using a standard micrometer. This stage has a large mounting platform that incorporates an array of tapped metric mounting holes for the convenient attachment of components. Model M-MVN50 Type Vertical Stage Load Capacity 14 lb ( 60 N) Travel, Z 0.31 in. ( 8 mm) Minimum Height 2.05 in. ( 52.1 mm) Platform Size 1.97 x 1.97 in. ( 50 x 50 mm) Thread Type M3 and M6 Drive Location Center drive Bearings Ball Bearings Material Steel Base Material Alloy Steel Axes of Travel Z Weight 1.8 lb ( 0.8 kg) The DM11-16 Differential Micrometer delivers ultra-fine, sub-micron positioning capabilities and coarse travel up to 16 mm in a single instrument. In most cases, DM Series Differential Micrometers can directly replace BM Series Micrometers and BHC Locking Drives to provide approximately ten times better positioning sensitivity. DM Series Micrometers are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror/Beamsplitter Mounts. In essence, the DM Differential Micrometer is a standard micrometer with a 0.10 mm high-resolution micrometer built around it. Coarse positioning, provided by the control knob at the end of the micrometer, enables rapid translation with a sensitivity of 1 µm. Then, by using the fine adjustment knob closest to the positioner, the position can be further optimized with a sensitivity of 0.1 µm over a limited travel range. The fine adjustment knob is graduated to permit direct reading of position in 1 µm increments. 6.6 lb Load Capacity.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used, excellent conditions”
