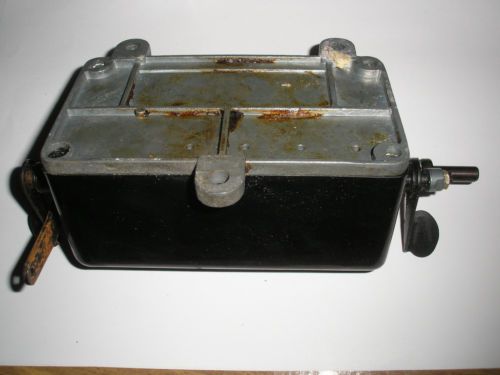

NOS soviet programable winder counter for coil spool reel transformer, US $50.00 – Picture 0

NOS soviet programable winder counter for coil spool reel transformer, US $50.00 – Picture 1

Nos Soviet Programable Winder Counter For Coil Spool Reel Transformer

US $50.00

Europe , Ukraine
Jan 30th

Open on mobile:
QR code

Actual photos. Perfect quality. Purpose: Counter SOP-105 provides for the automatic issuance of a mechanical pulse at a predetermined number of revolutions in the range from 00001 to 99999, except installations on numbers ending with zero. The Rev counter software SOP-105 provides automatic shutdown of the machine or machines on a given number of turns or coils within digits it to 99999. Automatic shutdown can be configured on the machine, coupled with the meter, and on machines operating at a distance (remotely). When appropriate wiring diagram the meter may be off mating with him the car and at the same time enable one or more machines that are with him are not paired, but the work which must be synchronized with the first machine. The Rev counter software SOP-105 can also work without the use of automation. In this case, it is the usual wind counter. Specifications and description of the Rev counter SOP-105: Counter SOP-105 consists of the following main mechanisms: -transfer from the drive roller to reading the reels; -reset to zero; -set the counter to a specified number; - stop. All the mechanisms are mounted on the base, made by injection molding, and are covered with a plastic casing. On the right side of the counter is the drive roller length 22 mm ?7 mm Outside of the hull are the only parts designed to attach and maintenance of the device. In the body fixed frame with viewing Windows, closed organic glass. The device has five measuring drums. This allows to count 99999 rpm, and if there is no need to reset digits, counting repeats again. On the right side is the handle, "I", and ahead of five buttons (respectively the number of measuring drums) for setting the counter to a specified number. On the left side of the counter arm is "0", which serves to reset the counter to zero; there is a lever stop acting in automatic operation. The capacity of the meter - 99999 rpm. Intercept the first reading of the drum on the right is 1 revolution of the drive roller. Working position of the counter - horizontal positioning of the drive roller. The rotational speed of the drive roller is not more than 1000 rpm The direction of rotation of the drive roller clockwise. Meter weight not more than 1100 grams Overall dimensions, mm 205x110x80
