NTE Schottkey Rectifier NTE6094 45V 60A DO5 Silicon Barrier Diode SK9774, US $7.90 – Picture 0

NTE Schottkey Rectifier NTE6094 45V 60A DO5 Silicon Barrier Diode SK9774, US $7.90 – Picture 1

NTE Schottkey Rectifier NTE6094 45V 60A DO5 Silicon Barrier Diode SK9774, US $7.90 – Picture 2

NTE Schottkey Rectifier NTE6094 45V 60A DO5 Silicon Barrier Diode SK9774, US $7.90 – Picture 3

NTE Schottkey Rectifier NTE6094 45V 60A DO5 Silicon Barrier Diode SK9774, US $7.90 – Picture 4

Nte Schottkey Rectifier Nte6094 45v 60a Do5 Silicon Barrier Diode Sk9774

US $7.90

Springville, Utah, United States
Jan 29th

Open on mobile:
QR code

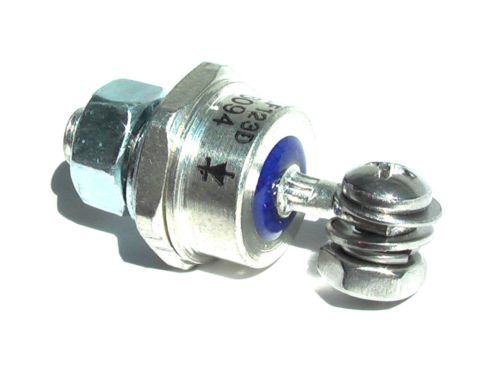

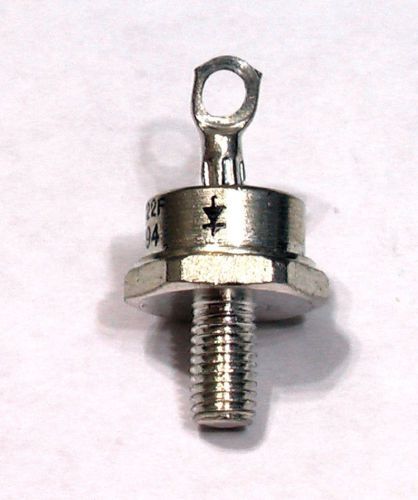

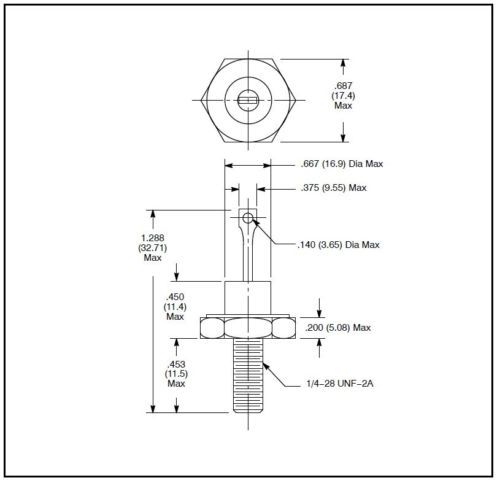

These were used in a discharge protection application that was never implemented. They can also be used for voltage clamping, reverse current protection and switched-mode power OR’ing between a battery and power supply. Money-back guarantee. PLEASE NOTE: Hardware (nuts and washers, types may vary, see photos) is also included, and assembled approximately as shown (washer types and numbers can vary from unit to unit). Some of these units have very small nicks and scratches, and signs of a tool being used to install the diode (see photos), but in no way does any of this degrade its performance. Features: Guaranteed Reverse Avalanche Extremely Low vF Low Stored Charge, majority Carrier Conduction Guardring for Stress Protection Low Power Loss/High Efficiency +150°C Operating Junction Temperature Capability High Surge Capacity Product Information Diode Case Style: DO-5 Diode Configuration: Single Diode Type: Schottky Forward Current If(AV): 60A Forward Surge Current Ifsm Max: 800A Forward Voltage VF Max: 840mV MSL: - No. of Pins: 2 Operating Temperature Max: 150°C Operating Temperature Min: -65°C Packaging: Each Repetitive Reverse Voltage Vrrm Max: 45V Absolute Maximum Ratings: Peak Repetitive Reverse Voltage, VRRM = 45V Working Peak Reverse Voltage, VRWM = 45V DC Blocking Voltage, VR = 45V Peak Repetitive Forward Current, IFRM (VR = 45V, TC = +90°C, Square Wave, 20kHz) = 120A Non–Repetitive Peak Surge Current, IFSM (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60Hz) = 800A Peak Repetitive Reverse Surge Current (Note 1, 2.0microseconds, 1.0kHz), IRRM = 2A Voltage Rate of Change (VR = 45V), dv/dt = 700V/microsecond Operating Junction Temperature Range (Reverse Voltage Applied), TJ = –65° to +150°C Storage Temperature Range, Tstg = –65° to +165°C Maximum Thermal Resistance, Junction–to–Case, RthJC = 1.0°C/W Note 1. Pulse Test: Pulse Width = 300microsecond, Duty Cycle = 2%. inkFrog Analytics

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Removed from a working system, tested, guaranteed.”
