Okuma Lb-15 Cnc Turning Center W Hydraulic Tailstock

US $14,950.00

  • Watertown, Connecticut, United States
  • Jan 30th

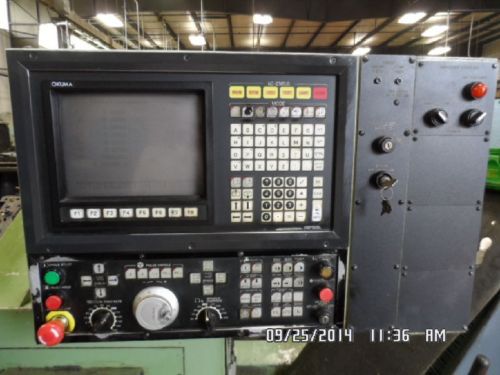

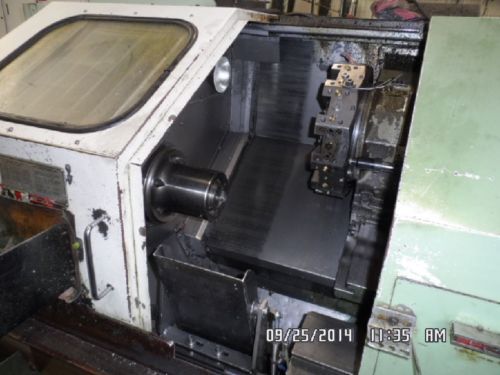

Item# 4027 - Okuma LB-15 CNC Turning Center w Hydraulic Tailstock Equipped With: Hydraulic Tailstock, Parts Cathcer, Collet Chuck, and Hennig Chip Conveyor.   High Rigidity, ready accessibility, excellent chip flow... A powerful Vertical 12- Station Turret and Husky VAC Spindle Drive motor for maximum cutting accuracy and high productivity.... Put these benefits at the service of the easily programmed Okuma OSP5020L and you have a cost-performer beyond compare   Machine Specifications: Model LB15 Nominal Size 10" x 20" Swing over Saddle 15.75 Max Turning Diameter 9.84" Max Work Length 19.69"/ 9.06" Spindle Diameter/ Bore Diameter 3.94"/ 2.20" Spindle Nose A2-6 Internal Taper of Spindle MT No. 6 Range of Spindle Speed 75 to 4,200 RPM Cross-Slide Travel (X-Axis) 6.89" Longitudinal Travel (Z-Axis) 20.47" Cutting Feed Rate .0001 to 40.000 Rapid Traverse Speed 472 IPM Hyd Tailstock Center Taper MT No. 5 Main Motor 10/15 HP Floor Space 108" x 73" Net Weight 10,000 Lbs.   Shipping Point: IL Price: $14,950.00 SPECIFICATIONS SUBJECT TO VERIFICATION** Rigging and Hauling NOT Included Call On Target with all your equipment questions-203-441-4655 kevinb@ontargetmachines.com
