Orion Rotary Tower Automatic Pallet Wrap Machine With Safety Fencing For Sale - Show Original Title

US $14,995.00

Waukesha, Wisconsin, United States
May 8th

Open on mobile:
QR code

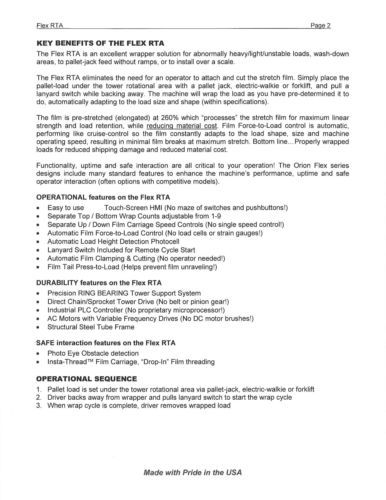

Key Benefits of the Flex RTA The Flex RTA is an excellent wrapper solution for abnormally heavy/light/unstable loads, wash-down areas, to pallet-jack feed without ramps, or to install over a scale. The Flex RTA eliminates the need for an operator to attach and cut the stretch film. Simply place the pallet-load under the tower rotational area with a pallet jack, electric-walkie or forklift, and pull a lanyard switch while backing away. The machine will wrap the load as you have pre-determined it to do, automatically adapting to the load size and shape (within specifications). The film is pre-stretched (elongated) at 260% which “processes” the stretch film for maximum linear strength and load retention, while reducing material cost. Film Force-to-Load control is automatic, performing like cruise-control so the film constantly adapts to the load shape, size and machine operating speed, resulting in minimal film breaks at maximum stretch. Bottom line…Properly wrapped loads for reduced shipping damage and reduced material cost. Functionality, uptime and safe interaction are all critical to your operation! The Orion Flex series designs include many standard features to enhance the machine’s performance, uptime and safe operator interaction (often options with competitive models). OPERATIONAL features on the Flex RTA · Easy to use Color Touch-Screen HMI (No maze of switches and pushbuttons!) · Separate Top / Bottom Wrap Counts adjustable from 1-9 · Separate Up / Down Film Carriage Speed Controls (No single speed control!) · Automatic Film Force-to-Load Control (No load cells or strain gauges!) · Automatic Load Height Detection Photocell · Lanyard Switch Included for Remote Cycle Start · Automatic Film Clamping & Cutting (No operator needed!) · Film Tail Press-to-Load (Helps prevent film unraveling!) DURABILITY features on the Flex RTA · Precision RING BEARING Tower Support System · Direct Chain/Sprocket Tower Drive (No belt or pinion gear!) · Industrial PLC Controller (No proprietary microprocessor!) · AC Motors with Variable Frequency Drives (No DC motor brushes!) · Structural Steel Tube Frame SAFE interaction features on the Flex RTA · Photo Eye Obstacle detection · Insta-Thread™ Film Carriage, “Drop-In” Film threading Operational Sequence 1. Pallet load is set under the tower rotational area via pallet-jack, electric-walkie or forklift 2. Driver backs away from wrapper and pulls lanyard switch to start the wrap cycle 3. When wrap cycle is complete, driver removes wrapped load More Standard Features – Best Value! Deluxe Control Panel uu Tamper Resistant, Password Protection u Industrial Switches for E-Stop & Main Power u Lock-Out capable Main Power Switch u Most Adjustments accessible via Touch-Screen u Cycle Counters & Fault Code Records u High / Low Turntable Speed Toggle u English & Spanish Languages u NEMA 12, UL Approved Control Panel u All AC Motors with Variable Frequency Drives STANDARD SPECIFICATIONS The following Orion standards that will be used if required by your machinery or if purchased as options. If other brands are required, they will be considered deviations and will be priced accordingly. Capacities · Maximum Load Size 48"W x 48"L x 80"H · Minimum Load Size 36"W x 36"L x 15"H · Stretch Film 20” Wide, up to 110 gauge Utilities · 115/1/60, 20 Amp Electrical Service (Not suitable for GFIC) · 80 PSI clean/dry Compressed Air @ 3 CFM Control Features · Deluxe Control Panel with Numerous Features · Easy to use Color Touch-Screen HMI Panel Display for easiest operator use · Password Protection for critical settings · 5 Wrap Program Recipes for quick change and well managed load wrapping · 1 Touch High / Low Rotation Speed Toggle · Industrial Programmable Logic Controller (Non-Proprietary) · Industrial Switches for E-Stop & Main Power · NEMA 12 Dust/Splash-Proof Control Enclosure · Separate Top and Bottom 1-9 Wrap Count Selectors · Separate Film Carriage Up/Down Speed Controls · Photocell for Automatic Load Height Detection · English / Spanish HMI Language choices · 24 Volt DC Controls Tower Structure, Support & Drive · Precision Ring Bearing Tower Support System · Up to 16 RPM Variable Speed with adjustable Soft-Start · Heavy Duty Direct Chain & Sprocket Drive · AC Drive Motor with Variable Frequency Drive · Electronically Adjustable Acceleration/Deceleration Automatic Film Tail Treatment · Film Tail Clamp, Hot-Wire Film Cutter, Film Press-to Load System Film Carriage, Stretch & Delivery · 20" Orion Insta-Thread™ Powered PreStretch Film Delivery System · 260% Standard Pre-Stretch (Sprocket changeable from 100% to 300%) · AUTOMATIC Film Force-to-Load Control works like Cruise Control · “Shock Absorber” Film Dancer Bar with Non-Wearing Sensor · Precision Polyurethane Pre-Stretch Rollers for Consistent Film Yield · AC Drive Motor with Variable Frequency Drive · No Lube Belt Lift/Lower system with “Drop-Lock” Technology · Multi-Point UHMW Precision Carriage Guidance System · Insta-Sense™ Film Out/Broken Sensing Logic · Touch-Screen Film Tension Control Adjustment · Easy “Drop-In” Film Threading Design

“Manufacturer refurbished This wrapper has been professionally restored to working order by the manufacturer-approved vendor. This means the product has been inspected, cleaned, and repaired to meet manufacturer specifications and is in excellent condition. This item may or may not be in the original packaging.”

Brand	Orion
Country/Region of Manufacture	United States
Model	Flex RTA
