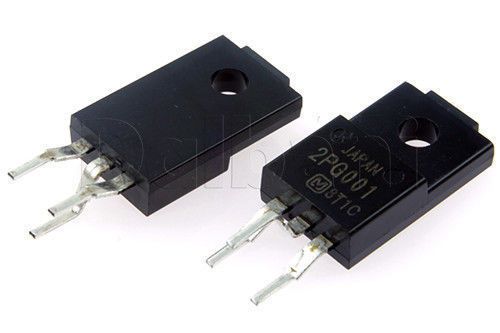

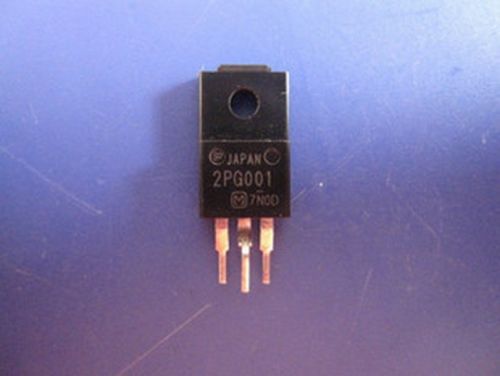

Panasonic 2pg001 To-220 Ship From Us

US $2.29

  • Tucson, Arizona, United States
  • Jan 29th
Open on mobile:
QR code
Our mission is to give you the e–components you need without having to deal with long delivery times from China. All of our components are already in the US. You can order 1pcs of any part, there is no minimum for ordering. just place an order and you will have your parts in no time! All components come in brand new condition with a 2 months limited warranty, you have plenty of time replace them if needed. 2PG001 N-channel enhancement mode IGBT For plasma display panel drive For high speed switching circuits ? Features ? Low collector-emitter saturation voltage: VCE(sat) <2.5 V ? High speed hall time: tf = 250 nsec(typ.) ? Absolute Maximum Ratings TC = 25°C ? Package ? Code TO-220F-A1 ? Marking Symbol: 2PG001 ? Pin Name 1. Gate 2. Collector 3. Emitter ? Internal Connection ? Features ? Low collector-emitter saturation voltage: VCE(sat) <2.5 V ? High speed hall time: tf = 250 nsec(typ.) ? Absolute Maximum Ratings TC = 25°C Parameter Symbol Rating Unit Collector-emitter voltage (E-B short) VCES 300 V Gate-emitter voltage (E-B short) VGES ±30 V Collector current IC 30 A Peak collector current * ICP 120 A Power dissipation PC 40 W Ta = 25°C 2.0 W Junction temperature Tj 150 °C Storage temperature Tstg –55 to +150 °C
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Panasonic
MPN 2PG001
Model 2PG001 TO-220
