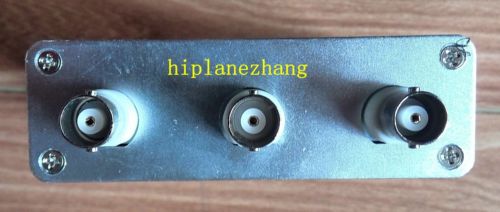

PC USB 40MHz 100MS/s Oscilloscope 20MHz Waveform Function Signal Generator 2in1, US $116.00 – Picture 0

PC USB 40MHz 100MS/s Oscilloscope 20MHz Waveform Function Signal Generator 2in1, US $116.00 – Picture 1

Pc Usb 40mhz 100ms/s Oscilloscope 20mhz Waveform Function Signal Generator 2in1

US $116.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Note: we'll ship this item via Epacket to US, usually the delivery time is about 2-3 weeks; for other countries, we'll ship it via registered air mail of Post, usually the delivery time is about 45-55 days. If you want express mail service, please contact us for extra postage in advance. DDSO-100 dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 40M, 100M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer. Meanwhile, has a the DDS function, supports 5 kinds of waveform output. Sine wave can output up to 20M. The device communicates with the PC via high speed USB2.0. Oscilloscope: > Channels: 2 > Bandwidth: 40MHz > Impedance: 1M? 25pF > Coupling: DC > Vertical resolution: 8Bit > Gain range: 10mV-12V(probe X1) > DC accuracy: ±3% > Timebase range: 1ns-20s > Input Protection: Diode,120Vpk > Autoset: Yes(1Hz to 50MHz) > Trigger Mode: Auto, Normal and Signal > Trigger Type: No, Rising edge, Falling edge and edge > Trigger level: Yes > Trigger Source: CH1, CH2 > Buffer Size: 1KB-256KB/CH > Max sample: 100MS/s > Vertical mode: CH1, CH2, ADD, SUB, MUL > Display Mode: X, Y-T and X-Y > Measurements: Yes > Wave save: Osc(Private), Excel and Bmp > Algorithm: FFT(18 windows), correlation, power spectrum > FFT points: 8-1048576/CHN > Filter processing: FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design DDS waveform function generator: > Wave: Sine, Square(Duty circle variable), Triangle, Up Sawtooth, Down Sawtooth > Amplitude: >=9Vp-p(no load) > Impedance: 200?±10% > Offset: ±2.5V > Frequency range: 1Hz ~ 20MHz(Sine), 1Hz-2MHz(Others) > Frequency resolution: 1Hz > Frequency steadiness: : ±1x10-3 > Frequency precision: ±5x10-3 > Triangular wave linearity: >=98% (1Hz-10kHz) > Sine wave distortion: <=0.8% (1kHz) > Square wave rising/falling time: : <=100ns > Square wave duty circle: 1%-99% SWEEP > Sweep range: Fs to Fe > Sweep time range: 0.1-10 s > Amplitude: 0.5Vp-p-10Vp-p System Windows XP(SP3), Win7 32, Win7 64

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	DDSO-100
Country of Manufacture	China
MPN	DDSO-100
