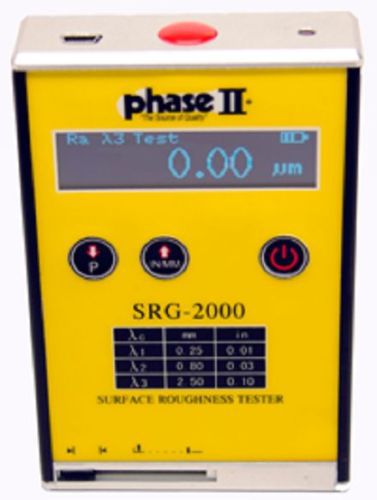

Phase Ii Portable Surface Roughness Tester Profilometer, Srg-2000

US $1,200.00

Saddle River, New Jersey, United States
Mar 9th

Open on mobile:
QR code

Technical Specifications Surface Roughness parameter Ra (ISO), Rz (DIN), Rms(Rq), Rt Measuring range Ra: 0.05-10.0mm / Rz 0.1-50mm Resolution 0.04mm (1.6minch) Cut-off lengths 0.0009in., 0.03in., 0.09in Filter RC analogue Tracing length 0.23in (6mm) Tracing speed 0.04in/second (1.0mm/second) Accuracy +/- 12% of actual Value Pick-up stylus Piezo-electric Tracer tip Diamond, radius 5mm Operating temperature 32-104 degrees F (0-40 degrees C) Power 3.6v / 2xNiMh batteries Charger 9V DC Contact force on probe <1.8ozf (<50gf) Static measuring force of sensor stylus <0.06ozf (<1.6gf) Dimensions 4.9 x 2.8 x 1.0in (125 x 73 x 26mm) Weight 0.4lbs (200g) The PHASE II SRG-2000 surface roughness tester profilometer is a pocket-sized economically priced instrument for measuring surface roughness texture conforming to traceable standards. It can be used on the shop floor in any position, horizontal, vertical or anywhere in between. The large LCD display shows either surface roughness parameter Ra, Rz, Rms(Rq) and Rt at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness values is possible by means of a special CAL button, which makes adjustment of this instrument very easy. A beep signal informs the user about each individual measurement status when ready. The easy to use SRG-2000 surface roughness tester profilometer operates on various surfaces, not only flat but also outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm. The areas of application are wide spread. It is suitable for inspection departments, quality control, on the shop floor during machining, during assembly, and on site. The SRG-2000 determines surface roughness parameters Ra,Rz, Rms(Rq) and Rt within a wide measuring range. The piezo-electric pick-up stylus with diamond tip assures a very reliable measurement within tolerances that conform to ASME B46.1. Surface Roughness parameter Ra is computed to conform to ISO and Rz is computed to conform to DIN.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	Phase II
Model	SRG-2000
