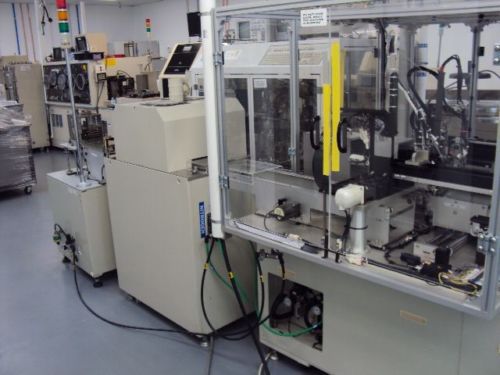

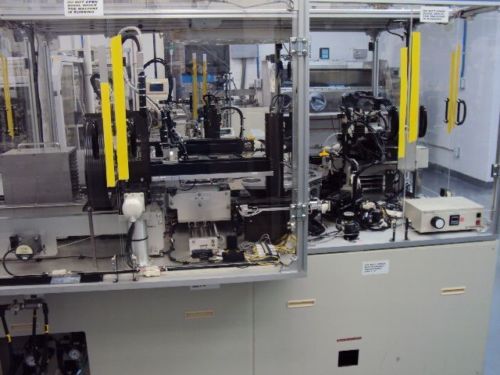

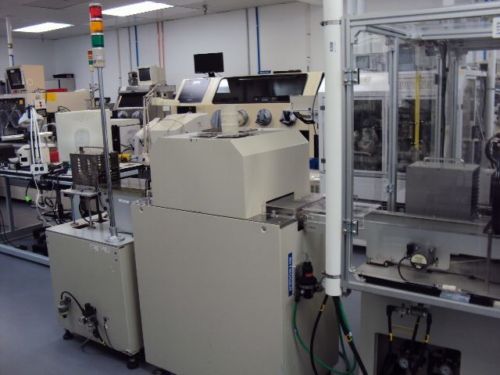

Pioneer Crystal Blank Mounter Pbm-10 For Smd Crystal Or Filter Packaging

US $62,000.00

Las Vegas, Nevada, United States
Feb 27th

Open on mobile:

Pioneer Crystal Blank Mounter PBM-10 Blank Mounter pIaces a blank with glue on the package For SMD crystal or filter package. Features The blank is placed precisely on the package using the image processor after checking and adjustment of the blank position. The blank is guaranteed against dusts and cracks, because of no need to use mechanical centering. Excellent performance with using image processor to check shape of glue and blank Easy to switch to other models of package or blank by changing software data Minimum contamination due to clean booth construction Connection to the Adhesive cure oven is possible (Option) A blank is transferred from a tray changer, is vacuum-chucked and loaded on the measuring stage by a camera to adjust position alignment, is mounted on a package. Dispensing is setup for dual(2) dispensing) and can be done on 2 to 4 points of dispensing position with teaching and a data of position alignment at package measurement stage. Status inspections Image processor recognizes a work, which is carried out secondary application, checks no mounting and a clear crack, etc. are inspected. Work Discharge The mechanism chuck of the work side on Jig is carried out, and it contains on a receipt tray by the X-V robot. If a tray fills, a tray will be discharged at a back process and an empty tray will be supplied from a tray changer. The defect generated at the intermediate process divides according to a process, and contains to NG palette or NG -BOX beside a receipt tray. ( Shipping; Unit may be shipped in three sections, or together in one larger crate. Dimensions: Length 92 Width 62 Height 75 Dimensions: Length 32 Width 20 Height 53 Dimensions: Length 27 Width 27 Height 36 Weight Total 2,000 lbs estimated. Purchaser may arrange crating and shipping; Alternatively, VC America will have created for domestic or international shipment (vapor barrier sealed in approved crate for overseas). Crating; Allow 5-10 days for domestic and 10-15 days for international. For crating costs and details, please contact us by email sales@vcamerica.com Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. International buyers are responsible for any customs duties, taxes, etc. imposed by the buyer's home country. Whether ebay or quote, the cost advised for international shipping is shipper/carrier transit cost only 14 day return policy – money back guarantee – Buyer is responsible for payment of shipping International buyers are responsible for any customs duties, taxes, etc. imposed by the buyer's home country. Whether ebay or quote, the cost advised for international shipping is shipper/carrier transit cost only

“Excellent operating condition; clean, minor scratches”

Brand	Pionner
Country/Region of Manufacture	Japan
Model	PBM-10
