Pipe Flange 1-1/4 400 Wog Cs4730-0108a067dj Brass 4730-00-203-6052 New G2015

US $89.99

Danville, Virginia, United States
Jun 9th

Open on mobile:
QR code

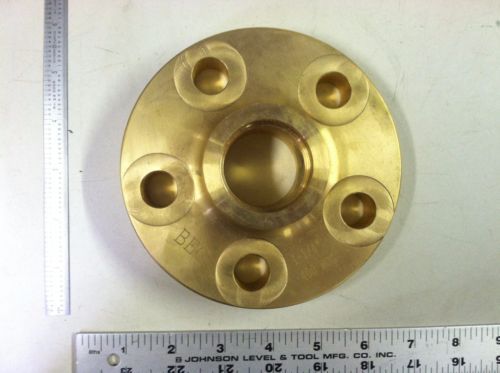

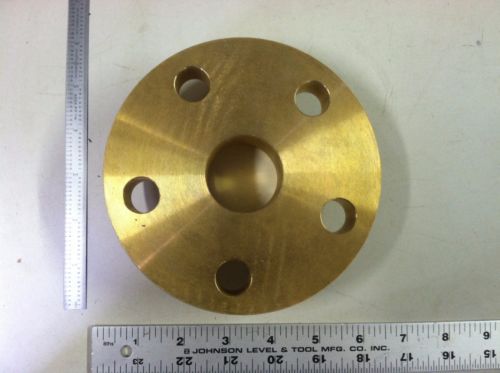

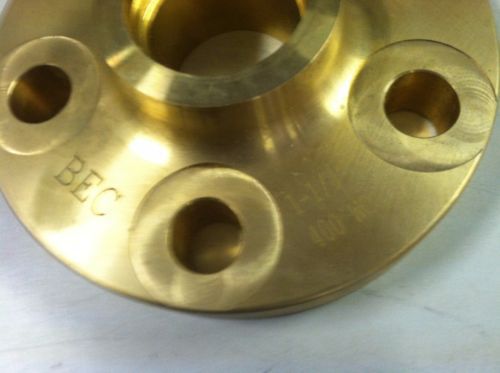

Pipe Flange 1-1/4 400 WOG CS4730-0108A067DJ Brass / Copper Alloy 4730-00-203-6052 NEW New. Stored by US Military. Brass/Copper Alloy. Packaging has tape, labels, marks, and/or shelf wear from US Military storage. See photos for details. NSN Information: 4730-00-203-6052 (MIL-F-20042, CS4730-0108A067DJ) Data 4730-00-203-6052 (4730002036052) NSN Information NSN FSC NIIN Item Name INC 4730-00-203-6052 4730 002036052 Flange, Pipe 03798 4730-00-203-6052 Features MRC Parameter Characteristics ABKG Bolt Circle Diameter 4.062 inches nominal ABKK Flange Diameter 5.375 inches nominal ABNM Thickness 0.812 inches nominal ABXP Socket Diameter 1.660 inches nominal ACSV Tube Outside Diameter FOR Which Designed 1.660 inches nominal AECS Bolt Hole Quantity 5 AHNX Bolt Hole Diameter 0.687 inches nominal AJEG Neck Height 0.812 inches nominal AJEM Flange Section Style Plain face, socket brazing neck AKWE Face Seating Surface Condition Machined CQCJ Maximum Operating Pressure AND Media FOR Which Designed 400.0 pounds per square inch air and 200.0 pounds per square inch steam and 400.0 pounds per square inch gas and 400.0 pounds per square inch oil and 400.0 pounds per square inch water CRWH Maximum Operating Temp AND Media FOR Which Designed 150.0 deg fahrenheit air and 425.0 deg fahrenheit steam and 150.0 deg fahrenheit gas and 150.0 deg fahrenheit oil and 150.0 deg fahrenheit water MATT Material Copper alloy STYL Style Designator Round, one bolt hole circle ZZZT Nondefinitive Spec/STD Data Pr type and 400 class 4730-00-203-6052 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC CS4730-0108A067DJ 16236 A 2 9 5 1 AX CS4730-0108A067DJ 63686 A 2 2 5 3 AX CS4730-0108A067DJ 71905 A 2 2 5 3 AX CS4730-0108A067DJ 72423 A 2 2 5 3 AX CS4730-0108A067DJ 76364 A 2 2 5 3 AX MIL-F-20042 81349 M 2 1 4 E AX 4730-00-203-6052 Replaces the Following Cancelled NSN Cancelled NSN Cancelled NIIN 4730-00-203-9327 002039327 4730-00-203-6052 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM JA N Nimitz Class Cvn JR N Fms - Knox Class Ff XB N Cvn Nuclear Reactor Boundary Area

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	BEC / Mil-Spec / Other US Military Contract
Country/Region of Manufacture	United States
Model	CS4730-0108A067DJ
NSN	4730-00-203-6052
MPN	CS4730-0108A067DJ
Alternate Part Numbers	MIL-F-20042
