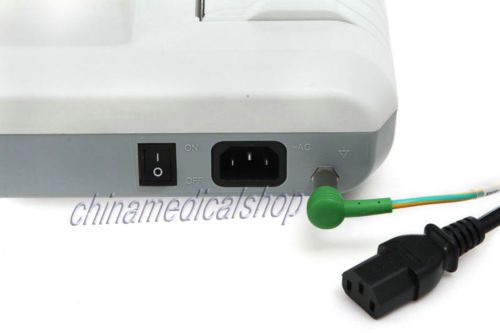

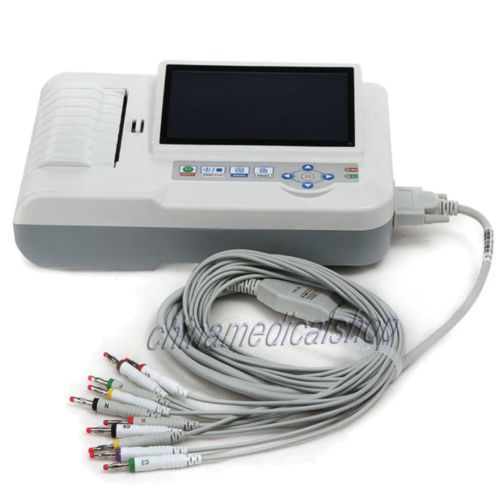

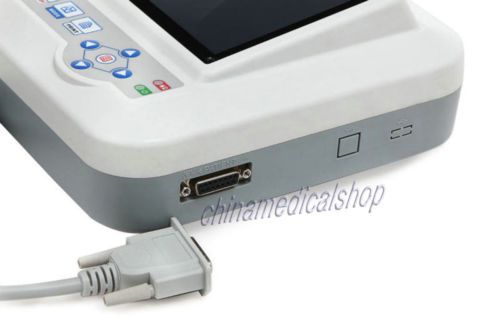

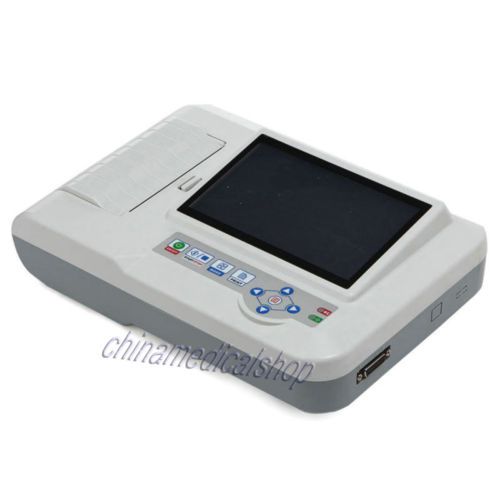

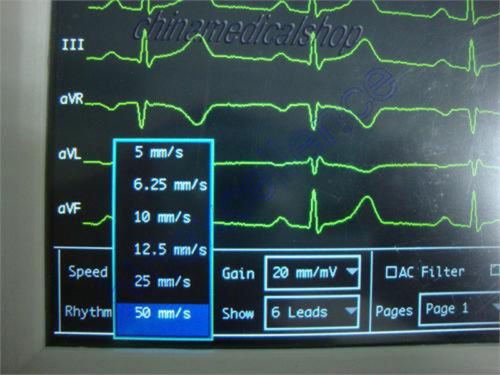

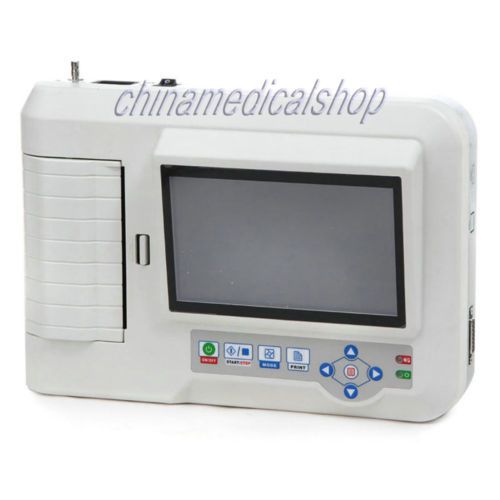

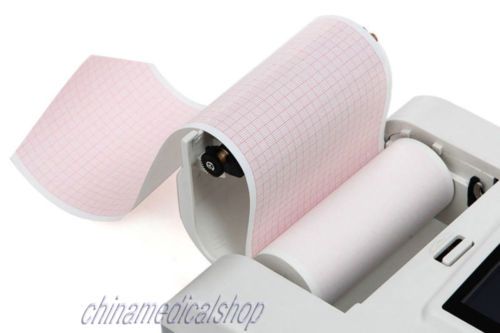

CONTEC Brand ECG Machine Digital 3/6 Channel ECG/EKG Electrocardiograph Model:ECG600G+software Description Main Features ?7''TFT color screen is 800*480, touch screen and function key control at the same time, more convenient and shortcut. ?It is high resolution thermal printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz. ?The device can record real time clear and exact six channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc. ?Full digital filter for resisting baseline draft, AC and EMG interference. ?Adjust the baseline automatically,optimize the print setting,and choose the rhythm leads. ?Under automatic mode, just press the button once, it starts record procedure, which can enhance your work efficiency. ?Soft keyboard and touch screen control at the same time, more convenient for operation. TFT screen shows the working status, more clear for observation. ?The power supply includes both AC/DC. This device includes built-in lithium rechargeable battery, automatic protection circuit,and it will shut automatically if there is no operation for 5 minutes. ?This instrument can record 190 pieces of ECG waveform and print 120 minutes continually under the best DC state. ?This instrument can store more than 1000 pieces patient’s data, more convenient for data review and statistic. ?The figure of whole device is elegant and gliding. ?Digital signal processor for effective inhibition of baseline drift, interference, and the like. ?The instrument has function with regular auto-measurement of ECG waveform parameter, auto-analyze and auto-diagnostic, it will help to reduce doctor's burden and improve working efficiency. ?Sampling twelve leads ECG signal at the same time, analyzing 2x6+1(rhythm lead), 2x6, 3x4, 3x4+1(rhythm lead), 4x3, 4x3+1(rhythm lead), 6x2, 6x2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7 recording mode at the same time, and reporting with multi-formats. ?Multi-lead styles for observing the real-time wave of three leads, six leads or twelve leads, and displaying Lead Off and Lacking of paper, DEMO mode of ECG Waves .it can test the ECG parameter and analyze the report, register the wave with automatic or manual mode, it also can store the patients' information by data storeroom. ?Safety Class: Class I, Type CF applied part, which has defibrillation-proof applied part. ?According to defense degree of deleterious fluid:IPX0 ?Support Chinese, English, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakhstan, Russian operating interface, can print out such language reports of the above. ?Timing print can be set to every 1/2/3/5/10/20/30/60 minutes. ?Print setting has several options, which can be set to “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), “Save no print”(only save case but not print waveform). Instructions ECG600G six channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its functions are as follows:recording and displaying ECG waveforms in auto/manual mode;auto-measuring and auto-diagnosing the ECG wave parameters;prompting the state of lead off and paper lack;switching the interface lauguages (Chinese/English);managing the case database. Major Features ?800x480TFT Color LCD shows the working status and ECG waveform; Touch screen and soft keyboard control, more convenient for operation. ?12 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals. ?Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation. ?Sampling twelve leads ECG signal at the same time,analyzing 2x6+1(rhythm lead),2x6,3x4,3x4+1(rhythm lead),4x3,4x3+1(rhythm lead),6x2,6x2+1(rhythm lead)recording mode at the same time,and reporting with multi-formats. ?The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery. It can standby for 4 hours, print 150 pieces of ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination. ?It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for doctor review and statistic. ?Under the review mode, you can see the saved ECG waveform, auto-analysis and auto-interpretation of ECG waveform parameter, auto-interpretation conclusion. ?Support Chinese, English, Italian and Turkish operating interface, can print out Chinese or Endlish, Italian, Turkish report. Main performance Safety Class: Class I, Type CF applied part. there is defibrillation circuit. Power supply: AC:100V~240V,50/60Hz DC: 7.4V, 3700 mAh rechargeable lithium battery Fuse Specification: 2 pcs ?5x20mm AC time lag; T1.6A/250V(Power Supply:220V) Print Recording way: Thermal printing system Specification of recording paper: 110mm(W)x20m(L) High-speed thermal paper Paper speed: Auto-record:25mm/s?50mm/s,error:±5% Rhythm record:25mm/s?50mm/s,error:±5% Manual-record:5mm/s?6.25mm/s?10mm/s?12.5mm/s?25mm/s?50mm/s?100mm/s,error:±5% Physical Characteristics Size: 315 mm (length) x 215 mm (width) x 92 mm (height) Weight: about 1.7 kg Contents No. Contents Qty 1 ECG machine 1 set 2 Patient Cable 1 set 3 Limb Electrodes 4pcs/set 4 Chest Electrodes 6pcs/set 5 Power Cable 1piece 6 Grounding Cable 1piece 7 Printing Paper 1roll 8 9 10 Operation Manual USB cable Software 1copy 1 piece 1 piece Other ECG machines: ECG100G ECG80A ECG300G ECG600G ECG1200G ECG1200F ECG Holters TLC9803 TLC5000 Payment Paypal account: contecgyj@gmail.com All payments are expected within 7 days after the last winning auction is closed. Shipment 1. We will ship the item within 48 hours after receiving your payment, please kindly leave your detail shipping address and telephone number, both are very important for the shippment, thank you. 2. Usually we will ship by EMS to worldwide, to USA, Canada, we will ship by UPS, to Italy, UK, Germany and other European countries, we will ship by FEDEX. So if you have special requirements about the shipping company, please contact us immediately after your payment, leave the note in the paypal, thank you. 3. We will upload the tracking number after shippment, you can search from both ebay and paypal. You can track online. 4. If you haven't received the item after 2 weeks of your payment, please contact me immediately! Email/MSN:contecmandy@hotmail.com Contact Contact Person :Mandy Email: contecmandy@hotmail.com Tel: 86-335-8015528(CN) Cell phone: 86-15032312869(CN) Contec Medical Systems Co.,Ltd, Manufacturer, Qinhuangdao,China Address: No.24 Huanghe West Road, Qinhuangdao Economic and Technical Development Zone, Hebei Province, China Terms Of Sale 1. All items are brand new, with 2 years warranty. 2. Client is responsible for the custom clearance and custom duty. If any, we will not be responisble for the customs clearance and duty, if you have special requirements for the declaration for your customs office, please contact us before your payment. 3. Customer is responsible for the returning shipping fee and we will send the replacement after receiving the returned item. 4. Your positive feedback will be appreciated very much, and in any case, please do contact us before leaving nagative feedback or ship the item back, we promise we will give you a satisfied answer. Buy Safe Product The following FDA Disclaimer is required for all eBay listing in Healthcare category and is included for REFERENCE: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item. Certifications From CONTEC Medical systems: CE & ISO certification FDA K Number ?Pulse Oximeter Premarket Submission Number(510K): K073454 Listing Number: D045684 ?Pulse Oximeter Premarket Submission Number(510K): K082641 Listing Number: D064765 ?Pocket Fetal Doppler Premarket Submission Number(510K): K082480 Listing Number: D072247 ? Pulse Oximeter Premarket Submission Number(510K): K090671 Listing Number:D078664, ? ECG machine Premarket Submission Number(510K): K090936 Listing Number: D081157 If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health. Add me to your Favorites list Visit my ebay store:chinamedicalshop My store: About us Contec Medical Systems focusing on research,manufacture and distribution of medical instruments,was founded in 1992 as a high tech company. At present we have 33 branch offices in China and more than 1500 employees. Our product line covers a wide range of 13 categories. Thousands of domestic hospitals are our customers. We have passed ISO 9000 and some of our products have got CE certificate. Contec hopes to cooperate with international companies to supply more innovative design and advanced technology products at affordable prices. Agent in the world! We are looking for partners in the world now! Do you want to become our agent in your country? Join us!
