Potentiometer Board A By Actobotics # 605124

US $3.49

Winfield, Kansas, United States
Jun 9th

Open on mobile:
QR code

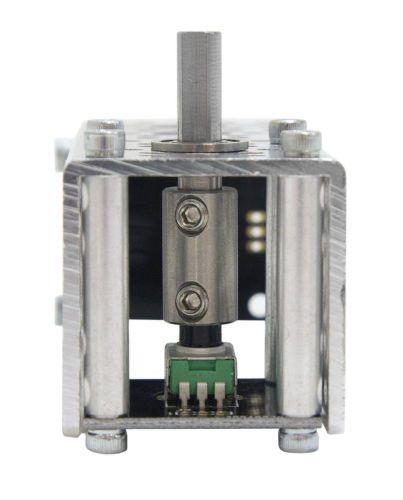

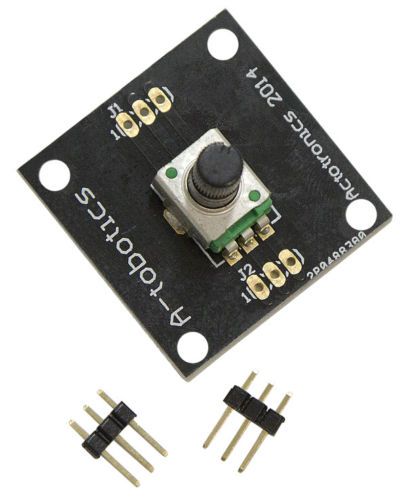

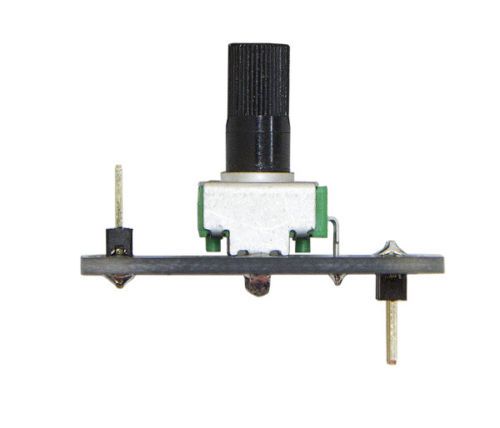

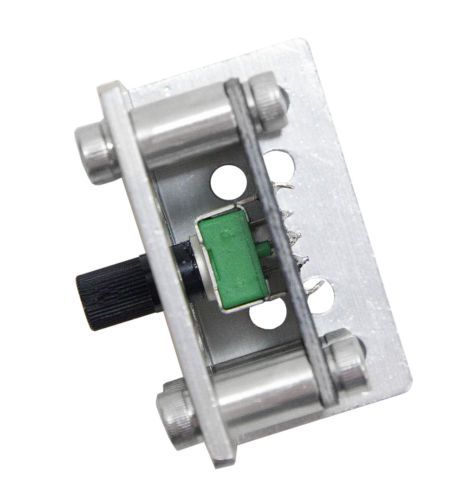

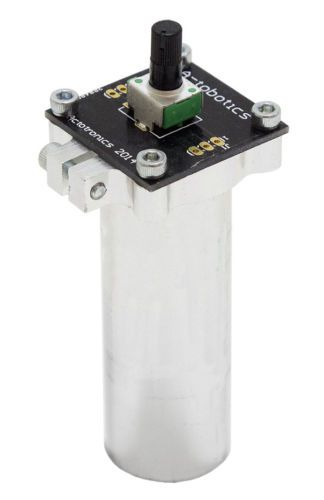

DREAM. DESIGN. BUILD. REPEAT. The Potentiometer Board A offers a simple way to attach a potentiometer to a structure constructed from Actobotics components. The board has a 1.30” footprint which allows it to mount to any side of channel from the inside or the outside. Mounting the board with the 1.5” hub pattern holes ensures that the shaft of the potentiometer will be concentric with one of the 1/2 ” holes in the channel. This means that it’s simple to drive the potentiometer using our drive components such as gears, pulleys, sprockets, etc. The convenient 6mm diameter potentiometer shaft size is compatible with any of our 6mm bore components including hubs, couplers and gears. The .100” spacing row pins (2 sets of 3 pins are included with each board but not soldered in place) can be soldered to either side of the board to easily connect wires. Creating a servo drive can be done by driving the potentiometer with some moving part of the assembly and connecting it and drive motor to a motor controller with feedback. Or, creating a controller with a remote potentiometer can be done using this board and a controller that accepts an analog input. 1.30” x 1.30” footprint Mounted on the end of channel using beam blocks Shown mounted to a short channel bracketusing short 6-32 threaded standoffs. Uses 6-32 socket head machine screws to mount this board (sold separately) click here Utilizes a 1.50” hub pattern.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Actobotics
MPN	605124
Model	Board A
