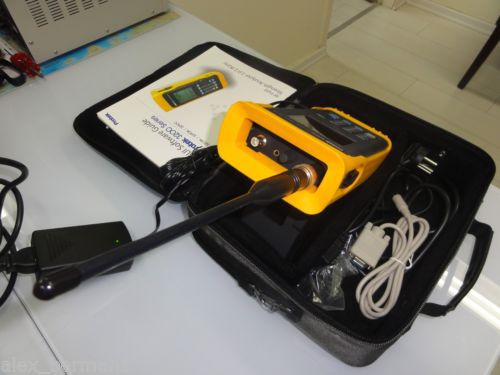

Protek 3290n , Rf Field Strength Analyzer, 100khz To 2900mhz +counter+ Rs-232 .

US $1,799.00

  • Rishon Le-Ziyyon, , Israel
  • Jan 29th
Features Hand-Held and battery operated 100kHz to 2900MHz measurement range (2060MHz for 3201) 125 Ch/sec scan rate (12.5 Ch/sec for 3201) Built-in 2.9GHz frequency counter (2GHz for 3201) High sensitivity (-117 dBm max) Detects Wide band and Narrow band FM, AM and Single Sideband Signals Phase lock loop for precise frequency tuning RS-232 interface Up to 160 channels may be scanned and displayed Audio output with built-in speaker Detachable antenna included Back-lit display All functions are menu selected Instrument setups & display data may be stored in memory Includes software and RS-232 Cable Hard copy printer output of spectrum and bar graph displays Ideal for IEEE 802.11 applications, Cellular Telephones, RF paging systems, Indoor repeaters, Surveillance applications Technical Spec Frequency Frequency Range (3201): 100kHz to 2060MHz Frequency Range (3290): 100kHz to 2900MHz Frequency Step: 5kHz to 9995kHz in multiples of 5kHz or 6.25kHz Ref. Oscillator Accuracy: ±3 PPM Frequency Marker Accuracy: ±25 PPM Frequency Measurements: Narrow Band FM, Wide Band FM, AM and Single side band Input Input Impedance: 50W Maximum Input Volts: 5V RMS (+270dBm) Measurement Units: dBmV, dB?V, dBm Attenuation: 0dB or -10dB internal; 0dB to 60dB with external Attenuator Narrow Band FM Level Measurement Range (3201): -117dBm to -67dBm (1MHz to 2060MHz) Level Measurement Range (3290): -117dBm to -67dBm (300MHz to 1800MHz) -107dBm to -67dBm (1MHz to 300MHz and 1800MHz to 2900MHz) Resolution: ±0.5dB; Accuracy: ±3dB Bandwidth: 12.5kHz Wide Band FM, AM & SSB Level Measurement Range (3201): -108dBm to -58dBm (10MHz to 2060MHz) Level Measurement Range (3290): -107dBm to -57dBm (300MHz to 1800MHz) -97dBm to -57dBm (10MHz to 300MHz and 1800MHz to 2900MHz) Resolution: ±0.5dB; Accuracy: ±3dB Bandwidth: Wide band FM: Approx. 180kHz AM and SSB: Approx. 2.4kHz BFO Frequency Range: ±1.5kHz Reception Sensitivity: 0 to 6dB?V EMF with supplied antenna Antenna Reception S/N Ratio: N-FM: 10 dB; W-FM: 12 dB Display Display Modes: Spectrum, Bar graph, Frequency counter Spectrum Display: Displays 160 channels Bar Graph Displays: Multi channel (2, 5, 10, 20, 40, 80, 160 bar graphs per display), Single Channel and 2 Channel difference Sweep Modes: Single, Normal, Free run Spurious Signals: (internally generated) -35dBc for W-FM -45dBc for N-FM (typical below full scale signal level) Scan Mode Manual, Channel (memory scan) and Search scan Scan Rate (3201): 12.5 Ch./sec. Scan Rate (3290): 125 Ch./sec. Memory Data Memory: Stores 10 displays of up to 160 CH per display Setup Memory: Stores 10 setups for each scan mode Frequency Counter Bandwidth (3201): 9MHz to 2060MHz Bandwidth (3290): 9MHz to 2900MHz Resolution: 1kHz Accuracy: 50PPM ±1 count Input Impedance: 50W Max Input Volts: 5V RMS Response Time: 0.512 Sec. Input Sensitivity (3201): 9MHz to 2060MHz: 120mV 20MHz to 1500MHz: 50mV 2MHz to 2060MHz: 500mV Input Sensitivity (3290): 9MHz to 2060MHz: 120mV 20MHz to 1500MHz: 50mV 2MHz to 2800MHz: 500mV 2800MHz to 2900MHz: 750mV Data Memory: Stores 10 Readings Miscellaneous LCD: 192 x 192 Pixels, Light green Back Light: LED. Back light will shut off 5 seconds after the last key depression Interfaces: Std RS-232 interface with female 8 pin mini Din connector. Baud Rates of 1200, 2400, 4800 or 9600 BPS are menu selected. The software supplied is a Windows®-based program, which runs under Windows 95/98/ME/XP/2000. Auto Power Off: 5, 10, 20 or 30 minutes after the last key depression–user selected. Audio Output :120mW into a 8W Speaker Power Requirements: (6) AA NiCd or Alkaline Batteries, 12 volt car adapter or 11V to 16V 500 mA Max AC to DC adapter Gereral Specifications Operating Temperature: 0°C to 40°C Relative Humidity: 35% to 85% Storage Temperature: -10 to 50°C Size: 9.5" H x 4.0" W x 1.8" D Weight: 1.4 lbs Supplied Accessories: Manual, (6) 1.5V AA NiCd Batteries, Detachable 9" whip antenna, RS-232 Cable, Carrying case, Earphone, Carrying strap and Software, Vehicle power adapter, AC/DC converter
Condition New other (see details) :
A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes Brand New, No Original package.
