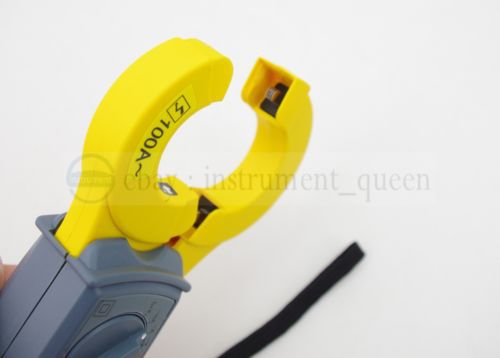

PROVA-23 Digital Power Harmonics and Leakage Tester Meter V/A 100A, US $286.30 – Picture 0

PROVA-23 Digital Power Harmonics and Leakage Tester Meter V/A 100A, US $286.30 – Picture 1

PROVA-23 Digital Power Harmonics and Leakage Tester Meter V/A 100A, US $286.30 – Picture 2

PROVA-23 Digital Power Harmonics and Leakage Tester Meter V/A 100A, US $286.30 – Picture 3

Prova-23 Digital Power Harmonics And Leakage Tester Meter V/a 100a

US $286.30

Qingdao City, China
Jan 29th

Open on mobile:
QR code

1.Introduction: MODEL PROVA 19, 21, 23 True RMS value (V and A) Leakage Current Measurement at 10 ? A Resolution Harmonic Analysis (V and A) to the 99 th Order Better Understanding of High Frequency Harmonic Analysis (up to 5/6 KHz) Non-interrupted Harmonic Analysis Analysis of Total Harmonic Distortion (THD-F) Analysis of Crest Factor (C.F.) Fast Peak Function (33 ? s and 39 ? s) Programmable CT Ratio (1 to 250) Model 21(50A) and 23(100A) W, KW, H.P. VA, KVA, VAR, KVAR PF, Phase Angle ( ? ) Energy (mWH, WH, KWH) Analysis of Standby Power Consumption Balanced 3 ? Power Quality Balanced 3 ? Sequence 2.Specification: SPECIFICATION: Please refer to users manual for more detailed and up-to-date description of specification. AC Watt (50 or 60 Hz, PF 0.5 to 1. CT = 1, Accuracy of Readings) Model 21 (0 to 50A), Model 23 (0 to 100A) Range Resolution Accuracy 21 (0 - 30A) Accuracy 23 (0 - 60A) Accuracy 21 (30 - 50A) Accuracy 23 (60 - 100A) 0.000 – 9.999 W 0.001 W ±1% ± 0.02 W ±2% of VA ± 5dgts 10.00 – 99.99 W 0.01 W ±1% ± 0.2 W ±2% of VA ± 5dgts 100.0 – 999.9 W 0.1 W ±1% ± 0.2 W ±2% of VA ± 5dgts 1.000 – 9.999 KW 0.001 KW ±1% ± 0.02 KW ±2% of VA ± 5dgts 10.00 – 99.99 KW 0.01 KW ±1% ± 0.2 KW ±2% of VA ± 5dgts 100.0 – 999.9 KW 0.1 KW ±1% ± 0.2 KW ±2% of VA ± 5dgts 1000 – 9999 KW 1 KW ±1% ± 2 KW ±2% of VA ± 5dgts AC Current (50 or 60 Hz, True RMS) Range (Model 19,21) Range (Model 23) Resolution Accuracy of Readings 0.30 – 60.00mA 0.30 – 60.00mA 0.01mA ±0.5% ± 5dgts 60.0 – 600.0mA 60.0 – 600.0mA 0.1mA ±0.5% ± 5dgts 0.030 – 3.000 A 0.030 – 9.999 A 0.001 A ±0.5% ± 5dgts 3.00 – 30.00 A 10.00 – 60.00 A 0.01 A ±0.5% ± 5dgts 30.00 – 50.00 A 6 0.00 – 99.99 A 0.01 A ±1.0% ± 5dgts AC Voltage (50 or 60 Hz, True RMS) Range Resolution Accuracy of R. Range Resolution Accuracy of R. 3V – 250V 0.1 V ±0.5% ± 5dgts 250V – 600V 0.1 V ±0.5% ± 5dgts Harmonics of AC Voltage in % and Magnitude (1 to 99th order) Range Resolution Accuracy in % Resolution Accuracy in Magnitude 50V – 600V 0.1 % ±0.5% 0.1 V ±0.5% ± 0.5V Harmonics of ACA in % Percentage and Magnitude (1 to 99th order) Range (Model 19, 21) Range (Model 23) Res. Accuracy (%) Res. Accuracy of R. 10.00 – 60.00mA 10.00 – 60.00mA 0.1 % ±0.5% 0.01mA ±0.5% ± 0.1mA 60.0 – 600.0mA 60.0 – 600.0mA 0.1 % ±0.5% 0.1mA ±0.5% ± 1mA 0.5 – 3.000 A 0.5 – 9.999 A 0.1 % ±0.5% 0.001 A ±0.5% ± 0.01 A 3.00 – 30.00 A 10.00 – 60.00 A 0.1 % ±0.5% 0.01 A ±0.5% ± 0.1 A 30.00 – 60.00 A 6 0.00 – 99.99 A 0.1 % ±1.0% 0.01 A ±1.0% ± 0.1 A Power Factor and Phase Angle (PF, ? ,Model 21 and 23) Range (PF) Resolution Accuracy Range (?) Resolution Accuracy 0.000 – 1.000 0.001 ± 1° -180° to 180° (0 ° to 360 ° ) 0.1° ± 1° Total Harmonic Distortion (THD-F, 1 to 99th order) Crest Factor (C.F., Accuracy of Readings) Range Resolution Accuracy of R. Range Resolution Accuracy of R. 0.0 – 999.9 % 0.1% ± 0.5% ± 5 digits 1.00 – 99.99 0.01 ± 5% ± 30 digits General Specification Conductor Size 30mm (approx.) Battery Type 1.5V SUM-3 x 2 Display 4+2+2 digits LCD Power Consumption 5mA (approx.) Auto-Power-Off 30 minutes No. Of Samples/Period 512 (V & A), 256 (W) LCD update rate 2 times / sec. Weight 200g (battery included) Operating Temperature -10 ° C to 50° C Operating Humidity < 85% relative Storage Temperature -20° C to 60° C Storage Humidity : < 75% relative Dimension 210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H) Accessories test leads, Carrying bag x 1, Users manual x 1, Batteries 1.5V x 2 Option alligator clips Notice: The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support! Shipping: We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can. Standard Shipping: To USA,UK and Australia Canada France by ePacket,need 7-15 working days. Other by China post or Singapore post ,need 15-35 working days. Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 5-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties. Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility. Warranty&Reture Policy: We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. 30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements. On Oct-14-14 at 03:55:10 PDT, seller added the following information:On Oct-14-14 at 08:14:45 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	PROVA
Model	PROVA-23
