Red Yb27va Dc Voltmeter/ammeter Led 0-100v/5a Panel Amp Meter Digital Volt Gauge

US $12.26

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

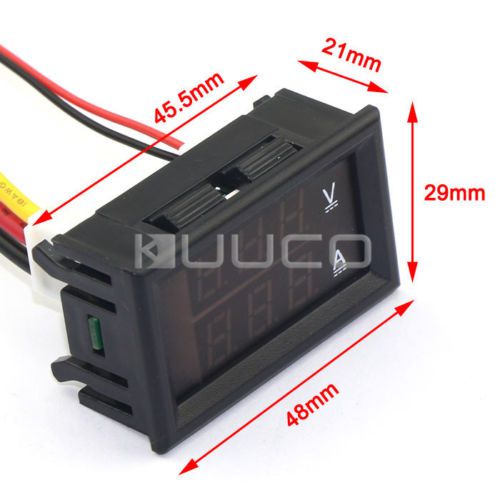

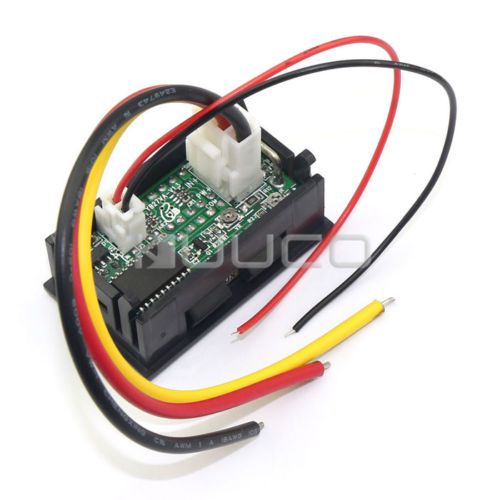

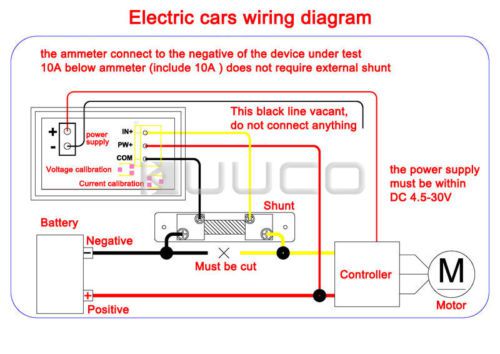

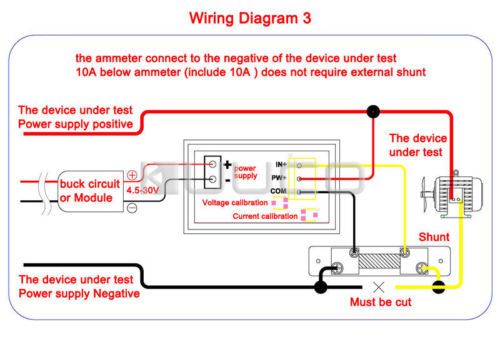

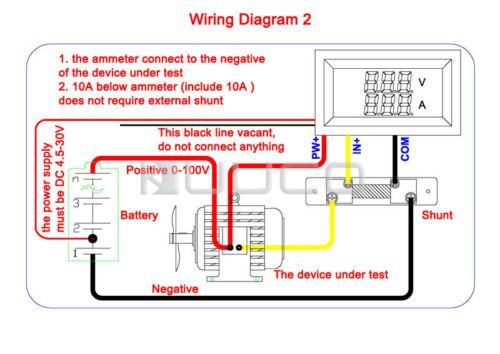

Red YB27VA DC Voltmeter/Ammeter LED 0-100V/5A Panel Amp Meter Digital Volt Gauge Dual Display In One Screen #100008 Product Description Features: Operating voltage:DC 4.5 ~ 30V Measure voltage: DC 0 ~ 100V Minimum resolution(V): 0.1V Measure current: DC 5A (direct measurement,built-in shunt) Minimum resolution(A): 0.01A Operating Current: <20mA Display: three 0.28" LED digital tube Display color: Red (dual display) Dimensions: 48 x 29 x 21 mm Mounting cutout: 45.5 x 26.5 mm Refresh rate: about 500mS / times Measure accuracy: 1% (± 1 digit) Operating temperature: -10 to 65°c Operating Humidity: 10 to 80% (non-condensing) Working pressure: 80 to 106 kPa Wiring: Black line (thin): vacant or buck circuit (module) negative Red line (thin): power supply+ Black line (thick): COM, common measuring Red line (thick): PW+, measuring terminal voltage input positive Yellow line (thick): IN+, current input+ (Please refer to the wiring diagrams for more details) Notice: the voltage between the thin red and thin black lines must be within DC 4.5-30V the ammeter can only be connected to the negative of the device under test 10A below ammeter (include 10A), built-in shunt, does not require external shunt Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket when the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits if just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing Package include: 1x Digital Amp Volt Meter Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	SKU	100008_YB27VA R_5A
Display color	Red (dual dIsplay)
Operating voltage	DC 4.5 ~ 30V
Dimensions	48 x 29 x 21mm
Measure voltage	DC 0 ~ 100V
Mounting cutout	45.5 x 26.5mm
Minimum resolution(V)	0.1V
Refresh rate	about 500mS / times
Measure current	5A (direct measurement,built-in shunt)
Measure accuracy	1% (± 1 digit)
Minimum resolution(A)	0.01A
Operating temperature	-10 to 65° c
Operating Current	<20mA
Operating Humidity	10 to 80% (non-condensing)
Display	three 0.28" LED digital tube
