Renishaw Scr200 Cmm Stylus Module Change Rack New Stock In Box W 1 Year Warranty

US $2,950.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

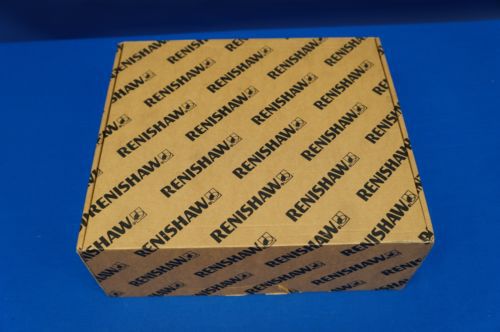

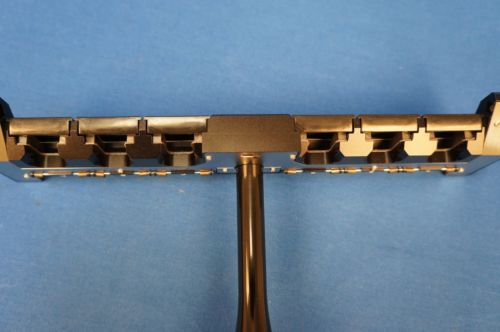

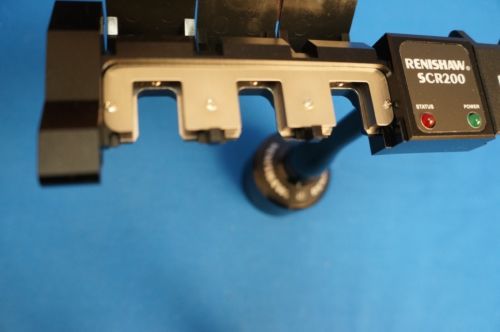

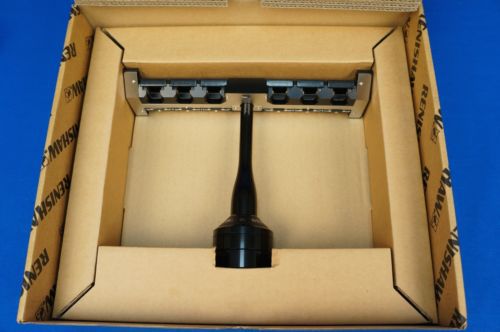

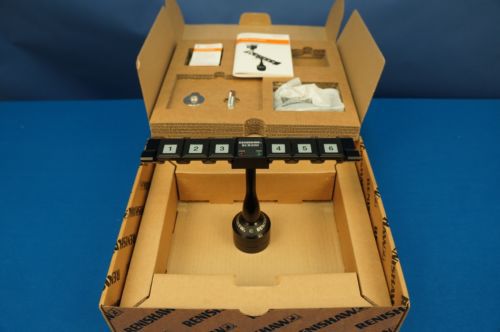

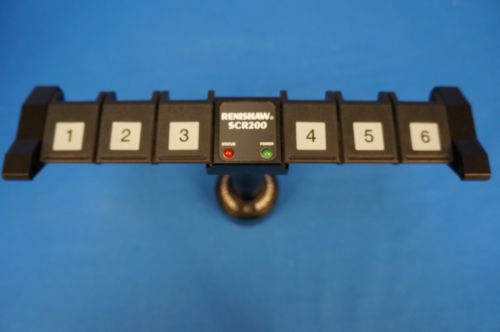

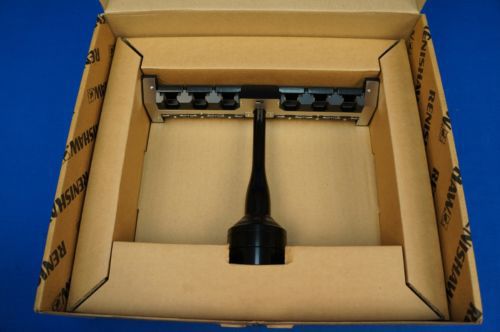

Powered by Frooition Pro Shop Search Renishaw SCR200 CMM Stylus Module Change Rack New Stock in Box w 1 Year Warranty Click here to view full size. Full Size Image Click to close full size. Item Description New Stock in Box Renishaw SCR200 Stylus Changing Rack with One Year warranty Also included are new SCR200 Mounting Kit and SCR200 Location Plate. The TP200 is a electronic probe using strain gauge technology which gives higher accuracy than kinematic touch trigger probes. Renishaws current retail price for all that is included in this sale is $6855.00 About TP200 The TP200 system components are: TP200 or TP200B probe body (the TP200B is a variant with increased vibration tolerance) TP200 stylus module - choice of fixed overtravel forces: SF (standard force) or LF (low force) PI 200 probe interface SCR200 stylus changing rack There is also an EO module (extended overtravel) which has the same overtravel force as the SF but provides increased operating range and protection in the probe Z axis. Features and benefits Strain-gauge technology offers excellent repeatability and precision 3D form measurement. Zero reseat errors. No lobing effect. 6-way measuring capability Stylus reach of up to 100 mm (GF styli) Rapid probe module changing without the need to re-qualify the stylus tips Life of >10 million triggers TP200 / TP200B probe body The TP200 probe uses micro strain gauge transducers to deliver excellent repeatability and accurate 3D form measurement even with long styli. The sensor technology gives sub-micron repeatability and eliminates the lobing characteristics encountered with kinematic probes. The solid state ASIC electronics within the probe ensure reliable operation over millions of trigger points. The TP200B uses the same technology as TP200 but has been designed to have higher tolerance to vibration. This helps to overcome the problem of 'air' trigger generation which can arise from vibrations transmitted through the CMM or when using long styli with faster positioning speeds. Please note that we do not recommend the use of TP200B with the LF module or cranked/star styli. TP200 specification Summary TP200 TP200B Principal application DCC CMM where high accuracy is required. As TP200 but where 'air' trigger events occur. Sense directions 6-axis: ±X, ±Y, ±Z 6-axis: ±X, ±Y, ±Z Unidirectional repeatability (2s µm) Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in) XY (2D) form measurement deviation Trigger level 1: ±0.80 µm (0.000032 in) Trigger level 2: ±0.90 µm (0.000036 in) Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.2 µm (0.000047 in) XYZ (3D) form measurement deviation Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.40 µm (0.000056 in) Trigger level 1: ±2.50 µm (0.0001 in) Trigger level 2: ±4 µm (0.00016 in) Repeatability of stylus change With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max. With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max. Trigger force (at stylus tip) XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N XY plane (all modules): 0.02 N Z axis (all modules): 0.07 N Overtravel force (@ 0.50 mm displacement) XY plane (SF/EO module): 0.2 N to 0.4 N XY plane (LF module): 0.1 N to 0.15 N Z axis (SF/EO module): 4.90 N Z axis (LF module): 1.60 N XY plane (SF/EO module): 0.2 N to 0.4 N XY plane (LF module): 0.1 N to 0.15 N Z axis (SF/EO module): 4.90 N Z axis (LF module): 1.60 N Weight (probe sensor and module) 22 g (0.78 oz) 22 g (0.78 oz) Maximum extension (if on a PH10 series head) 300 mm (11.81 in) 300 mm (11.81 in) Maximum recommended stylus length (M2 styli range) SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GFLF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF SF/EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GFLF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF Mounting method M8 thread M8 thread Suitable interface PI200, UCC PI200, UCC Stylus module changing rack Automatic: SCR200 Manual: MSR1 Automatic: SCR200 Manual: MSR1 Stylus range M2 M2 TP200 stylus modules The stylus module is mounted on the TP200/TP200B probe body via a highly repeatable magnetic kinematic joint, providing a rapid stylus changing capability and probe overtravel protection. There are three modules available, with 2 different overtravel forces. Module SF (standard force) LF (low force) EO (extended overtravel) Application General use. Small diameter stylus balls or where minimum force is essential. Extra overtravel to enable the CMM to stop safely from higher probing speeds. Comments Styli up to 100 mm long and ball diameter > 1 mm. Balls less than 1 mm diameter. Same overtravel force as SF. Extra 8 mm of overtravel in probe Z axis. SCR200 changing rack The SCR200 provides automatic, high speed changing of up to six TP200 stylus modules. The SCR200 is powered by the separate probe interface, PI200, and provides features to facilitate safe stylus changing. The SCR200 is available in low force and standard force kits, where each kit comprises one SCR200 plus three stylus modules of the same force. Specification Height 190 mm (7.84 in) Width 245 mm (9.65 in) This is by the far the best price you will find on a new stock in box SCR200 in box with Warranty. If you would like to add additional probing please do not hesitate in contacting us. Why pay retail prices when you can purchase with warranty from Metrology Parts. Purchase with confidence from a Paypal verified retailer with 6 Month Warranty If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any questions feel free to contact us. With 25 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	United Kingdom
MPN	A-1085-0370
Brand	Renishaw
Country of Manufacture	United Kingdom
Model	SCR200
Renishaw	CMM
