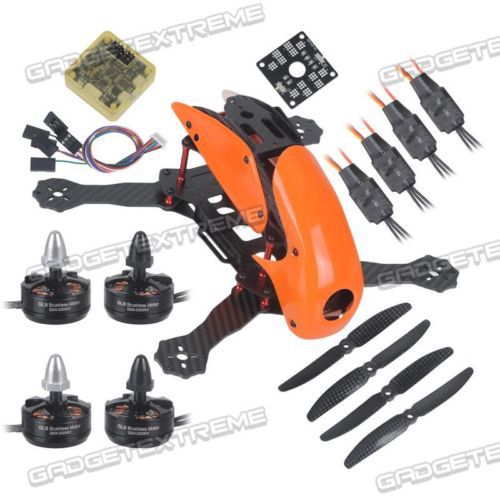

Robocat 4-axis Carbon Fiber Quadcopter Frame 2204 Motor Esc Cc3d Props Orange Us

US $118.88

Los Angeles, California
Jun 9th

Open on mobile:
QR code

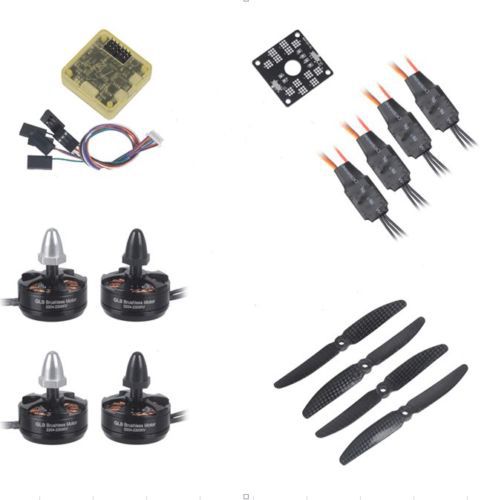

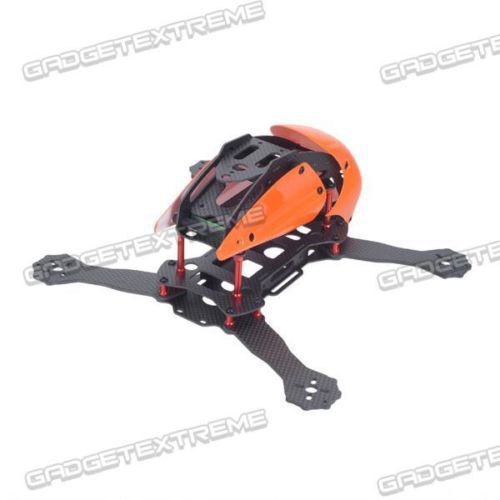

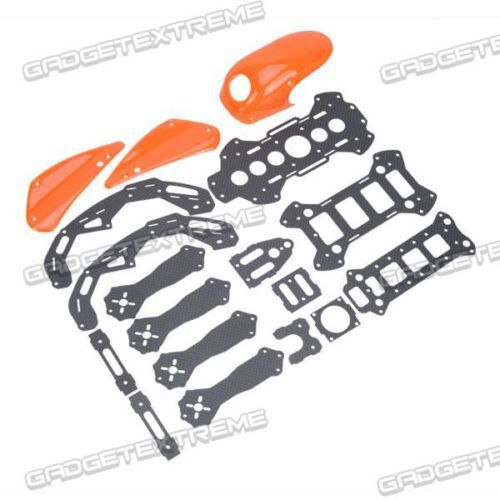

???? 1 Robocat 4-Axis Carbon Fiber Quadcopter Frame MT2204 Motor 12A ESC CC3D Prop Robocat 270mm 4-Axis Carbon Fiber Mini Quadcopter Specification: - Wheelbase: 270mm - Material: 100% Carbon fiber - Removable hood make from shock-absorbing PC materials - Flying weight: 410~430 (Battery excluded) - Model net weight: 190g - Hood color: Orange - 1.5mm thick fuselage & 3mm thick arms - No assembled,just kit MT2204 2300KV Motor: Features: - Light weight design - Longer duration of flight - Low CG Design, decreasing vibration when motor runs - Using Japanese NMB ball bearing, Japanese Kawasaki stator, Ndfeb with strong magnetic and high temperature resistance, decreasing heat generation during pperation, increasing efficiency. - CW and CCW Propeller adapters, holding the propellers tight. - Designed for mini multicopters, better flight performance Specification: - KV: 2300 - Max Trust: 440g - No. of cell: 2-3S - Framework: 12N14P - Propeller: 5" - 6" - Length: 32.2mm - Shaft: 3mm - Diameter: 27.9mm - Weight: 25g SimonK 12A Brushless ESC Speed Controller: Features: - Based on Simon K firmware, further optimized to the perfect drive performance. - Low-voltage protection, over-heat protection and self-check functions. - Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference. - Parameters of the ESC can be set via program card or transmitter. - Throttle range can be set to be compatible with different receivers. - Equipped with built-in linear BEC or switch BEC. - Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole. Specifications: - Continuous Current: 12A - Burst current (10S): 15A - Li-xx Battery (cell): 2-3 - Dimension (L*W*H): 25mm x 20mm x 7mm - Weight wires Included: 9 - BEC Mode: Linear - BEC Output: 1A/5V - Programmable: Yes CC3D Flight Controller Introduction: OpenPilot is a next-generation Open Source UAV autopilot. It is a highly capable platform for multi-rotor craft, helicopters, as well as fixed wing aircraft. It has been designed from the ground up by a community of passionate developers from around the globe, with its core design principals being quality, safety, and ease of use. Simplicity does not come with any compromises either: with no hard-coded settings, a complete flight plan scripting language and other powerful features, OpenPilot is an extremely capable UAV autopilot platform. Package includes: - Mini 250 FPV Quadcopter Frame x1 (Not assembled) - ESC Connection Board x1 - 2204 2300kv Brushless Motor x4(cw 2PCS+ccw 2PCS) - Simonk 12A Simonk ESC x4 - 6030 Carbon Fiber Propeller x2 Pair - CC3D Flight Control Board x1set Shipping & Payment: Here Offer 100% Satifiation Service,Inlucde re-send item&refund payment; All items here offer 1 year warranty It is not my Duty for Custom Tax All items will be shipped via DHL global mail or USPS from US, the time normally takes 2-3 business days. We only accept paypal payment.

Condition:	New: A brand-new, unused, unopened, undamaged item (including handmade items). See the seller's listing for full details. ...	Brand	Unbranded/Generic
Model	Robocat 270mm 4-Axis
Country/Region of Manufacture	China
UPC	Does not apply
