Rockwell 11 Inch Metal Lathe Instruction & Parts Manual S/n: 138-9101 & Up *467

US $720

  • Goddard, Kansas, United States
  • Jan 30th
Open on mobile:
QR code

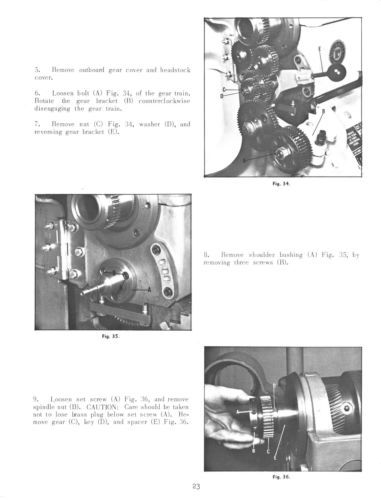

 Rockwell 11" Metal Lathe Instruction & Parts Manual For models: Rockwell 11" S/N: 138-9101 & up Description: This is a high quality reproduction manual  for the late production Rockwell 11" lathes with    serial numbers 138-9101 and up.  It is the full manual including both the operation and parts sections.  For just the operation or parts sections, please see my other listings. To inspect the quality and to read the contents page, please click on the gallery images to enlarge. Note: This manual now includes a 10 page section on Electrical Wiring Diagrams for Rockwell               Factory Wired 11" Metal Cutting Lathes. Originally printed by Rockwell for the 11" Lathes. Includes sections on: Installation Operation and Controls Service Adjustments Lubrication Chart Maintenance and Repairs Parts List Parts Breakdown Drawings 10 Page Wiring Diagram Section Number of pages: Approx 57 Condition of original: Very Good Publication No.:  414-01-651-5002 Publication date: 3-15-1968 Added Notes:  Due to others copying this manual for resale, I have added a light watermark on select pages to discourage this practice. Questions? Email: eugene@fabersurplus.com Phone: 316-210-4079 after 11:00 am Central Time Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Reprinted from original manual using high quality 24lb paper and comb binding. Covers are printed from 65lb cardstock for extra durability. See my for more manuals
Condition New other (see details) :
A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes “New reproduction Manual”
