Rotary Incremental Encoder, Quadrature Output, Bourns Ecw1d-zzz-se0/034

US $2.99

Spring, Texas, United States
Jan 29th

Open on mobile:
QR code

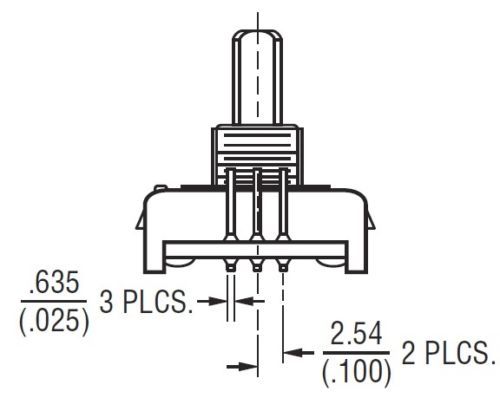

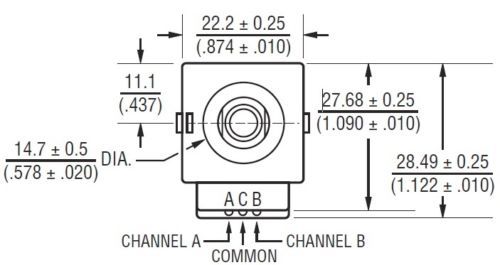

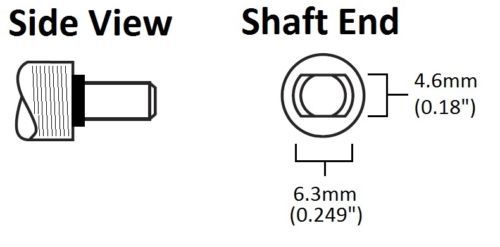

Bourns Rotary Encoder This 3-pin encoder produces a quadrature signal at the A and B channels to allow decoding of the rotational shaft movement. The internal detents are at 15 degree angles, for a total of 24 signals per revolution. There are no end-stops, so the encoder can be continuously rotated. The encoder is mounted by the shaft bushing (0.25" deep, M9 thread) by means of an M9 panel nut (not included). Two flattened sides on the bushing can be used to prevent rotation of the housing. See specifications for additional details. Specifications Contact Resistance: Max 5 Ohms Cutout Diameter: 9.2 mm Height: 23 mm Length: 27.7 mm Mounting: Shaft Bushing Pins: 3 Width: 23.8 mm Links & Downloads Datasheet (Page I-14) Additional Information Manufacturer P/N: ECW1D-ZZZ-SE0/034 Brand: Bourns Color: Black SKU: ROTENCA If you have any questions about this product, please send us a message via eBay, call customer service at (281) 257-8587 or send us an email. m Combined Shipping We combine shipping on all items unless specifically stated otherwise in the description To be eligible for combined shipping discounts, all items must be paid for together in a single paypal payment, using ebay checkout. m Shipping Cost & Options We offer USPS First Class Package (up to 13 ounces), Parcel Select and Priority Mail for most domestic shipments, including APO/FPO/DPO destination. We offer USPS First Class International Package (up to 4 lbs) and Priority Mail International for most international shipments. The (combined) shipping cost is calculated based on the total weight of all items and includes postage, packaging, tracking, handling and insurance. All domestic, and most international shipments are tracked with USPS Tracking (formerly known as Delivery Confirmation). The tracking number is emailed to you upon shipment, and uploaded to eBay. International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. Accurate customs declarations are included on all international shipments, and includes the shipping cost so that it can be insured; requests to falsify customs documentation will be ignored. m Feedback, Customer Satisfaction, Returns & Cancellations More than 99.5% of our orders ship within 1 business day (Mo-Fri except USPS holidays). We leave feedback upon shipping your order. We appreciate positive feedback and strive to earn a five-star rating. If you are not satisfied with your purchase, please contact us via an eBay-message, send us an email or phone us at (281) 257-8587 (leave a message if necessary). We offer returns on MOST items, please click on the Shipping tab above. Orders that have not been paid can be cancelled at any time. eBay requires the seller to start the cancellation process, and we will be happy do so for you, just send us a message via eBay. Paid-for orders that have not yet shipped can be cancelled subject to some restrictions. Please contact us by phone at (281) 257-8587 to inquire if your order is cancelable. If your paid order can be canceled, we will refund your payment less a 50 cent fee to cover non-refundable PayPal charges that we incur. m Payment / Local Pickup / Sales Tax We really prefer PayPal, it is the quickest and most reliable payment method. If you wish to pay by Check, please write your eBay user name on the check and mail to: Memotronics, LLC 134 Vintage Park Blvd. Ste A-108 Houston, TX 77070 To pay with a Visa or MasterCard by phone, call us at (281) 257-8587 Local Pickup is generally not available, unless your order exceeds $300. All orders shipping to Texas will be subject to 8.25% Sales Tax on the entire order, including shipping.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer Part Number	ECW1D-ZZZ-SE0/034
Height	23 mm
Brand	Bourns
Length	27.7 mm
Color	Black
Mounting	Shaft Bushing
Contact Resistance	Max 5 Ohms
Pins	3
Cutout Diameter	9.2 mm
Width	23.8 mm
