Saga Precision Servo Arms Vacuum Vinyl Cutter 1350iip 53.1" / 49.6" Pp1350fbr

US $1135

Peoria, Arizona, United States
Jun 9th

Open on mobile:
QR code

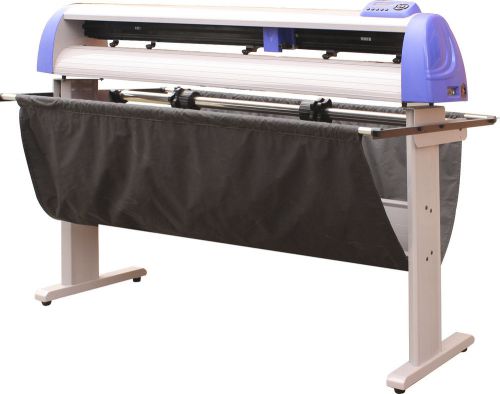

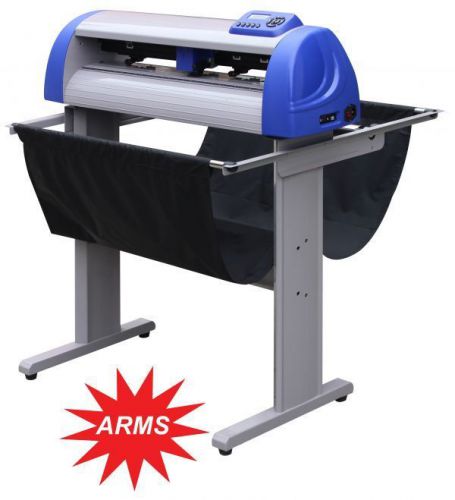

A great servo ARMS system that comes with DragonCut full version. For videos of the software and cutter in action, see www.DragonCut.cn Motor: Servo Maximum Cutting Width (mm): 1260 Maximum Media Width (mm): 1350 Measurements (cm): 173 x 51 x 38 Gross Weight (kg): 41 Net Weight (kg): 38 Feed System: Direct Pull Construction: Aluminum Alloy, ABS End Caps Maximum Drawing Speed (mm/s): 960 Maximum Cutting Speed (mm/s): 960 Control System: Servo Motor Power (w): 25 Tracking: 3 Maximum Force (g): 750 Maximum Force Increment (g/step): 3 Mechanical Resolution (mm/pulse): .01254 Connections: RS-232, USB Power Supply: AC 110V-240V / 50-60HZ 6A Maximum Noise (dB (A)): 35 Ambient Temperature Range °C: 5 - 35 Command Language: HPGL Media: Release liner backed materials, magnet, stencil Pen Included: Yes Included Blades: 30°, 45°, 60° Packaging: Machine in carton box, stand in carton box, two carton boxes are individual Computer Connection: True USB, no driver needed, direct connection to USB Printer Carriage Type: Cutting head with 4 wheels Contour Cutting: Laser sensor, automatic ARMS Straight Line Speed (mm/s): 0 - 960 Curve Speed (mm/s): 0 - 600 Motor Speed (RPM): 0 - 3500 0-3000 RPM Time Idle Load (miliseconds): 20 0-3000 RPM Time Working Load (miliseconds): 1200 Encoder Signal Physical (line / round): 1016 Encoder Signal Logical (line / round): 4060 Processor (bits): 64 DSP Processor Flash (M): 32 Accuracy (±mm): .01 Repeating Precision (mm): .082 Stand Availability: Upright Basket Availability: Yes Standard Warranty: 3 Year Parts And Labor Perf Cut Capable: No CE Certification: Yes Color: Grey / Blue Compatibility PC: XP, Vista, 7-32, 7-64, 8-32, 8-64 Compatibility MAC: Yes Software - SignCut: PC, Mac Software - DragonCut: PC, Mac with BootCamp Software - Flexi: PC (won't drive ARMS system) Software - ArtCut: PC (won't drive ARMS system) Software - VinylMaster: PC, Mac with BootCamp (won't drive ARMS system) Software - WinPC Sign: PC (won't drive ARMS system) Software - Onyx: No (won't drive ARMS system) Software - Plug In Driver: Direct Plug In Driver, PC only Software - Stencil Cutting: No Flip Up Top: Yes Enhanced Frame Rigidity: Yes Tangential Drive Rollers: Yes Enhanced Carriage Strength: Yes Stand Rollers: Ball Bearing
