Seeeduino ATmega 328P V3.0 Development Board Learning Arduino Compatible NEW, US $220 – Picture 0
Seeeduino ATmega 328P V3.0 Development Board Learning Arduino Compatible NEW, US $220 – Picture 0

Seeeduino Atmega 328p V3.0 Development Board Learning Arduino Compatible New

US $220

  • Arno Bay, SA, Australia
  • Jun 9th
Open on mobile:
QR code
Please take note of the longer handling time for this listing due to working away (see note at the bottom of the listing). This is a brand new Seeeduino ATmega 328P V3.0 development learning board that is compatible with Arduino based micro-controller projects: I2C and Serial Grove connector. Mini USB and DC Jack. Inherits all of Arduino Duemilanove's features. Compatible with Duemilanove's pin layout, screw hole and dimensions. Evolved with SMD components. Improved on extensibility and convenience General specifications Microcontroller - Atmel ATmega328 (AVR 8-bit) in TQFP-32 package Operating voltage - 5V or 3.3V (choice by slide switch) Mini USB input voltage - 5V (Max. is 5.5V) DC jack input voltage - 7V to 12V (lower is preferred). Maximum is 20V. If input lower than 7V and switch set to 5V, then VCC at AVR is about 2V below the input. Digital I/O pins - 14 (of which 6 provide PWM output) Analog input pins - 8 (of which 2 are used for I2C communication - PC4 and PC5) Flash memory - 32KB SRAM - 2KB EEPROM - 1KB Clock speed - 16 MHz LED information  User LED with 'L' label, connected to ATmega328P PB5/SCK pin (Digital header pin 13). Reset LED with 'RST' label, connected to ATmega328P PC6/RESET pin. It is lite when Reset is low. Power LED with 'PWR' label, always on. It is connected to ATmega328P VCC pin. Transmit LED with 'TX' label, connected to FT232RL CBUS1 pin. Receive LED with 'RX' label, connected to FT232RL CBUS0 pin Included in the sale 1 x Seeeduino ATmega 328P V3.0 Development Board Item will be posted in anti-static slip to prevent electrical damage to the sensitive electrical components during transit. The handling time is a guide only and the item may be shipped earlier than specified. No exceptions will be made for requests of refunds still within the 20 days handling time. We endeavor to do our best, however, if for some reason we are not able to process your order within the handling time given you will be contacted to discuss options.

Directions

Similar products from PCB boards & Kits

PARTS/REPAIR PCB ONLY Western Digital/WD 2TB 3.5'' SATA Hard Drive WD2003FYYS

PARTS/REPAIR PCB ONLY Western Digital/WD 2TB 3.5'' SATA Hard Drive WD2003FYYS

  • San Jose, California, United States
  • Jun 9th

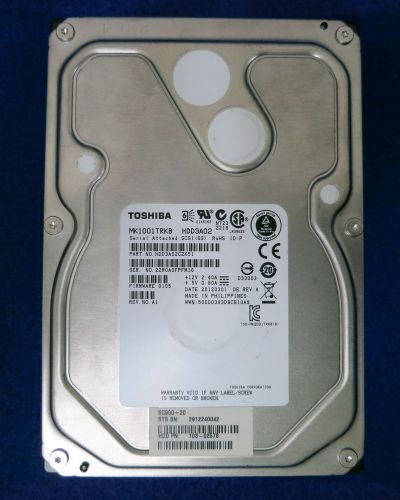

PARTS/REPAIR PCB ONLY Toshiba 1TB 3.5'' SAS Hard Drive MK1001TRKB HDD3A02

PARTS/REPAIR PCB ONLY Toshiba 1TB 3.5'' SAS Hard Drive MK1001TRKB HDD3A02

  • San Jose, California, United States
  • Jun 9th
QFP/TQFP/LQFP 32-144pins Switch Over DIP Doubleside Pinboard Adapter Converter

QFP/TQFP/LQFP 32-144pins Switch Over DIP Doubleside Pinboard Adapter Converter

  • Shenzhen, China
  • Jun 9th
Universal Plated Through Holes Prototype Double Side PCB Tinned Breadboard 10Pcs

Universal Plated Through Holes Prototype Double Side PCB Tinned Breadboard 10Pcs

  • Shenzhen, China
  • Jun 9th
ADEPT TECH 10330-00088 BACKPLANE MODULE FOR STAUBLI CS7 RX90 ROBOT CONTROLLER

ADEPT TECH 10330-00088 BACKPLANE MODULE FOR STAUBLI CS7 RX90 ROBOT CONTROLLER

  • Reno, Nevada, United States
  • Jun 9th
SD to IDE 2.5" 44Pin SD TO 44 Pin 2.5"IDE Adapter for Laptop

SD to IDE 2.5" 44Pin SD TO 44 Pin 2.5"IDE Adapter for Laptop

  • shenzhen, China
  • Jun 9th

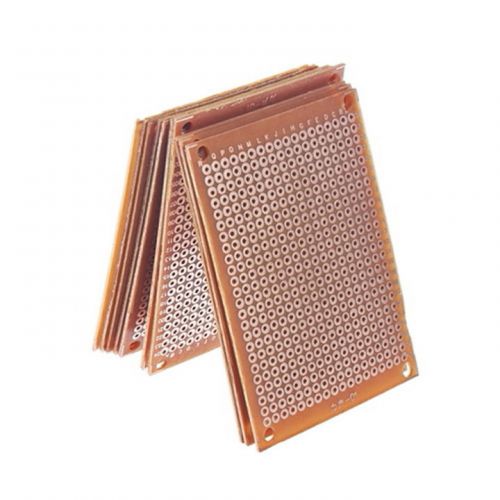

10Pcs DIY Prototype Paper PCB Universal Experiment Matrix Circuit Board 5x7cm #~

10Pcs DIY Prototype Paper PCB Universal Experiment Matrix Circuit Board 5x7cm #~

  • HongKong, Hong Kong
  • Jun 9th
5x Stripboard Veroboard 10x15cm joint uncut pcb platine Single Side circuit vero

5x Stripboard Veroboard 10x15cm joint uncut pcb platine Single Side circuit vero

  • Beijing, China
  • Jun 9th

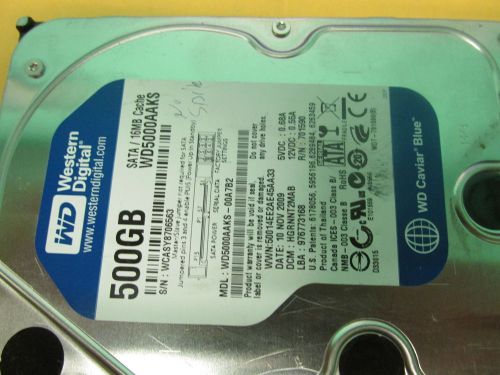

WD 500GB WD5000AAKS-00A7B2 2061701590( PCB BOARD ONLY)
