Single Channel True Rms Ac Voltage Current Data Logger 600v 200a Usb Memory 100k

US $207.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

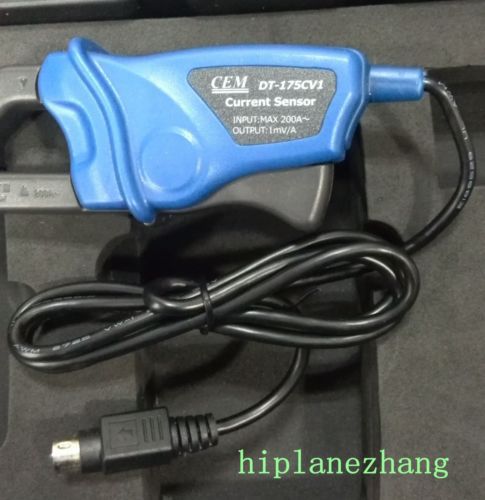

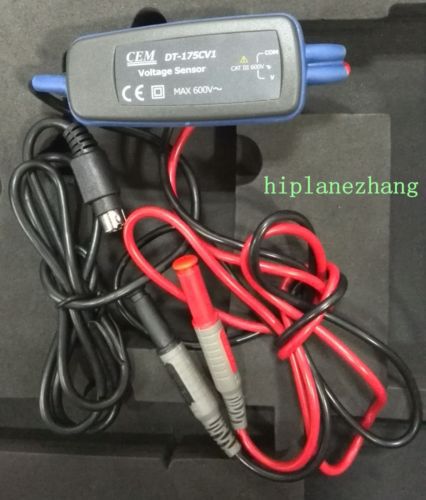

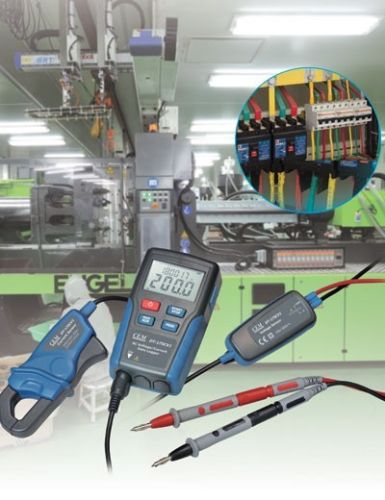

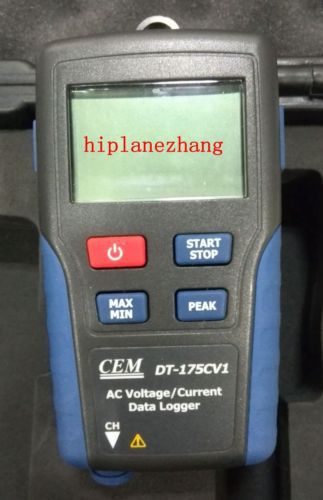

175CV1 The 175CV1/176CV2/177CV3 is a datalogger for measuring and recording True RMS current and voltage. The readings are saved in the logger and simply read out by your PC via USB interface. The LCD can show current readings, MAX, MIN and sign of alarm. 1. Large capacity for storing measuring data points 2. ACA current clamp sensor (CP-09) 3. Voltage sensor measure the floating voltage to meet CAT III 600V 4. LCD to show some logging information easily. 5. Freely selectable measurement cycle from 1sec. to 24h 6. Download collected data through USB interface 7. Alarm display if user-defi ned maximum/minimum values exceed 8. Analysis software used to view graph for logging data Features: 175CVS 175CV1 176CV2 Channel input Dual Single Dual Digital LCD Display * YES * ACV/Load current/Leakage current measurement * YES * True RMS measurement YES * Data memory 100,000 100,000 256,000 Wave memory YES * MAX / MIN, Peak mode YES * Time & Date Display * YES * Wave store YES * Auto power off * YES * USB interface * YES * Manual and Automatic mode * YES * Specifications: Function Range Basic Accuracy 175CVS 175CV1 176CV2 177CV3 AC Current (True RMS) 2-200A ±2% * YES * * AC Voltage (True RMS) 6-600V ±1.5% * YES * * Reading Memories 100,000 100,000 256,000 256,000 Measuring rate 1 sec. to 24h Analysis software windows 98/2000/XP/Vista Size(HxWxD) 114mm x 63mm x 34mm Weight 248g Accessories: ACA current clamp sensor(CP-09) & Voltage sensor, USB cable, Software, 3.6V Lithium battery and gift box. Note: we'll ship this item via express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Malta, Norway, Sweden, Swiss, Spain, Italy, UK, Japan, Korea,Thailand, Malaysia, Indonesia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	175CV1
Country of Manufacture	China
MPN	175CV1
