Special Furnace/l&l Kilns Gs1714 2350°f 1.71 Cubic Feet Electric Box Furnace

US $2,534.99

Phoenix, Arizona, United States
Jun 9th

Open on mobile:
QR code

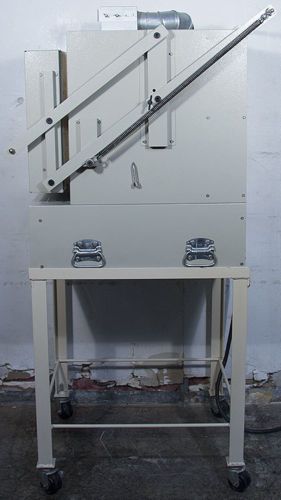

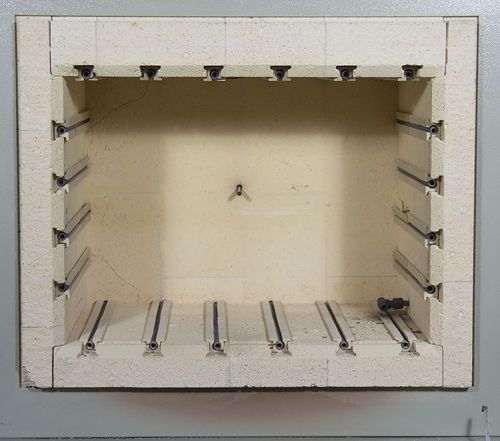

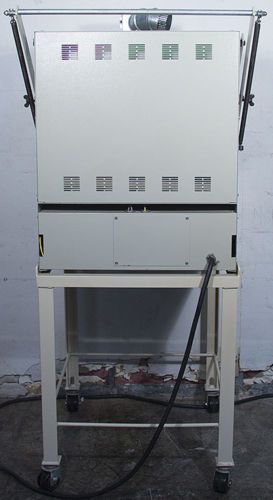

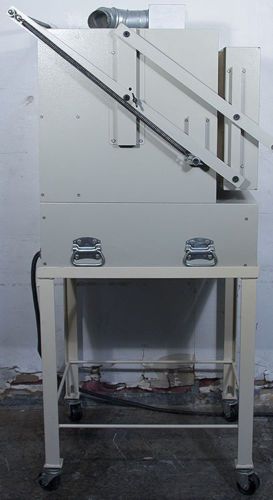

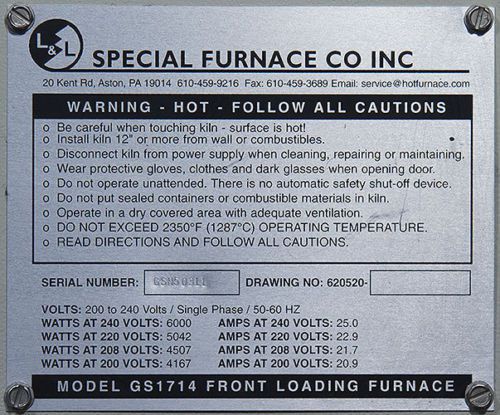

Special Furnace/L&L Kilns Front Loading Electric Box Furnace Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Special Furnace/L&L Kilns and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This furnace has been tested to max. temperature and is guaranteed to be in working condition. The Unit's Serial Number Tag Reads: Model Number: GS1714 Serial Number: GSH503LL Power Requirements: 200 to 240 Volts / Single Phase / 50-60 Hz / 20.9 - 25.0 A / 4167 - 6000 W Link to the Datasheet: Special Furnace GS1714 Front-Loading Furnace Datasheet Link to the Manual: L&L Kilns/Special Furnace Dynatrol 700 Controller Manual Applications: The GS1714 Bench Furnace is an excellent general purpose bench mounted box furnace. The spring-loaded vertical door makes loading and unloading effortless, even at high temperatures. Elements are located uniformly around the sides, top and bottom. A sophisticated program control allows up to 6 programs to be stored. Standardized production makes the price and value of this furnace ideal. Features: Unique Dyna-Glow Element Holders: Provide easier maintenance and more efficient firing of the kiln, helps prevent dusting. Elements won't fall out of roof. No pins. 2350°F - 1287°C - CONE 10: Use for heat treating, tempering, annealing, solution heat treating, glass, ceramics, enameling and many other applications. Dynatrol Program Control Included: 6 programs with 8 segments each (2 programs can be linked for a total of 16 segments). Sheated Thermocouple Included Elements on Top, Bottom and Sides Results in Tight Gradient Uniformity: A nine point temperature uniformity survey demonstrated better than ±7-1/2°F (a total variation of 15°F) from corner to corner in the chamber from 500°F to 2000°F. Counterbalanced Vertical Door: Lift easily with one hand. Air-cooled handle stays cool to touch. Slot in Door: There is a 1-1/2" wide by 2-1/2" high slot in the bottom of the door. You can work through the door. Includes removable insulated plug with a handle. The slot is approximately 3/4" above the hearth plate. Four Lifting Handles: Makes moving easy. Two people can pick up kiln. Ceramic Heart Plate Included: Hearth is 16" wide by 13" deep with 1/2" high ceramic standoffs. Coated Hardened Firebrick Reduces Dusting: The firebrick is coated with a proprietary reflective ceramic coating which penetrates, binds and hardens the surface of the entire interior of the kiln. Firebrick & Back-up Multi-Layered Insulation: 3" firebrick on top (for extra strength), 2-1/2" on other surfaces. Brick is backed up with 2" of mineral wool. It only takes about 850 watts to maintain temperature at 2000°F. Back up insulation keeps case relatively cool to touch. Multi-Voltage Makes it Easy to Hook Up: Furnace will operate on any single phase voltage from 200 volts to 240 volts, 50 Hz or 60 Hz. Truly a universal kiln/furnace. Door Cut Off Limit Switch: Turns power off when door opens. On/Off Toggle Switch and Control Fuse Specifications: Firing Capacity - Max Load: 1.71 cubic feet (2958 cubic inches, .048 cubic meters). 125 Pounds Max Load. Interior Dimensions: 17" W x 12" H x 14.5" D Hearth Plate: 16" W x 13" D x 5/8" Thick Exterior Dimensions: 26" W x 32" H x 34" D (Height with door open is 45" tall) - does not include stand Power Supply Required: 30 Amp, Fuse 30 Amps Power Requirements: 200 V to 240 V, 50 or 60 Hz, Single Phase For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Right Side View Picture 4 - Left Side Picture 5 - Inside the Furnace Picture 6 - Controller Picture 7 - Accessories Picture 8 - Serial Number Tag $100.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 08/26/15 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“This furnace has been tested to max. temperature and is guaranteed to be in working condition.”

Brand	L&L Special Furnace
Model	GS1714
