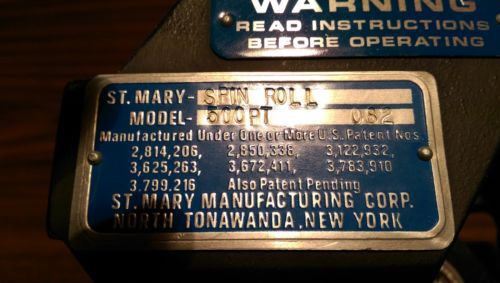

St. Mary - Spin Roll Grinding Fixture

US $1,995.00

  • Gorham, Maine, United States
  • Jan 30th
Excellent condition. Barely used. Description: Power driven by a 1/8 HP motor, this Spin Roll model can be used as an accessory or a self-contained bench unit. Now, even machine shops with minor capacity rotary operations cannot afford to be without this time, work, and money-saver. Also available with special mounting platens for other machine tools. Features: Assured concentricity .0002 Power driven, enclosed motor Quick, easy, and accurate loading Constant torque handle standard Compact and lightweight Specifications: Overall Dimensions (inches): 12 long x 10-1/2 high x 8 wide Diameter (inches): 1/64 to 1-1/4 Length (inches): 5/8 to 5 standard Power: 1/8 HP, 110 V Bearings: 12 Permanently Sealed and Lubricated Clamping: Adjustable torque handle Weight: 28 lbs
