Stm32f107vct6 Stm32f107 Stm32 Development Board Kit + Tft Lcd + Ethernet Modules

US $86.99

Shenzhen, Guangdong, China
Feb 14th

Open on mobile:
QR code

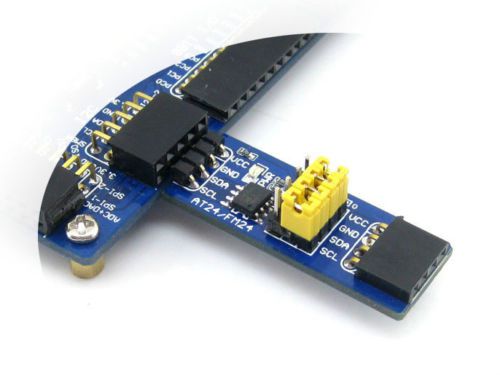

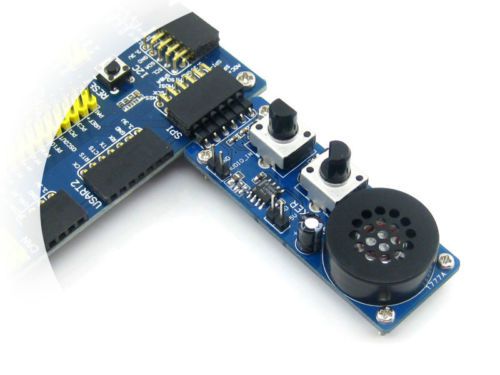

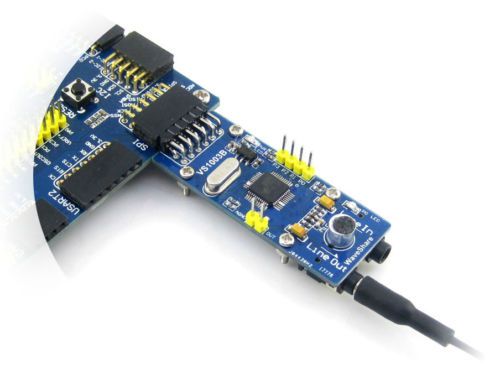

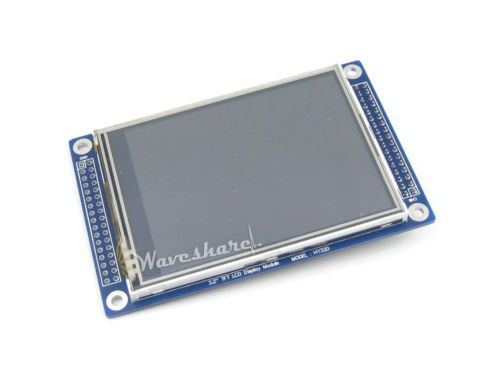

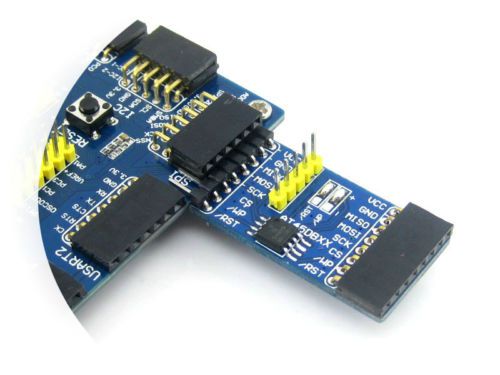

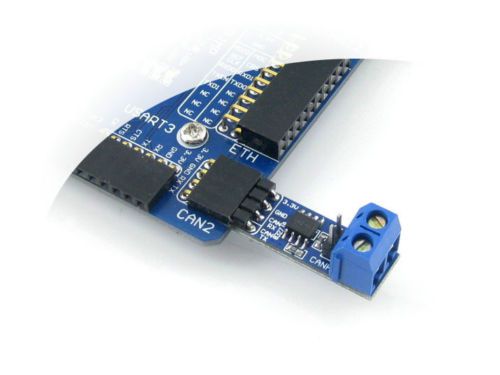

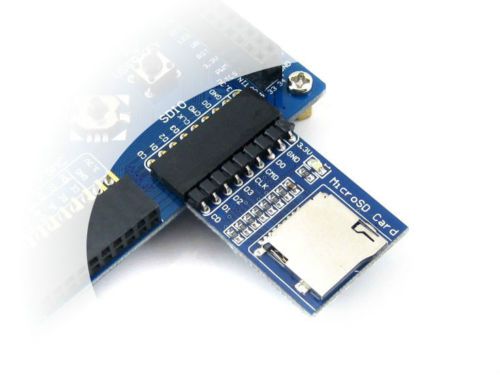

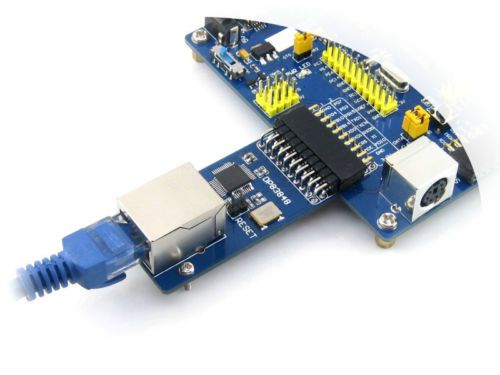

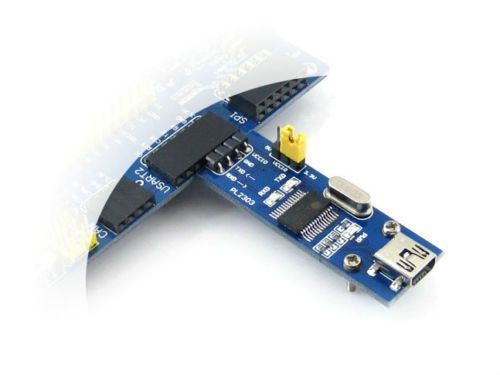

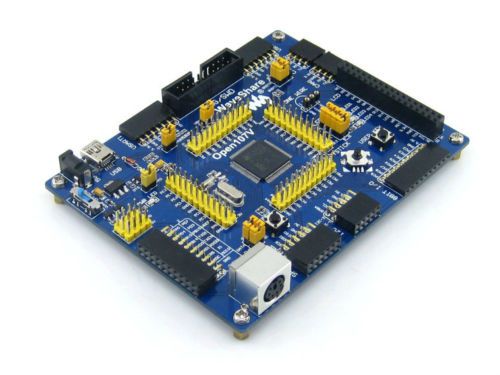

This auction is for Open107V Package B STM32 development board designed for STM32F107V series, features the STM32F107VCT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions. Overview Open107V is a STM32 development board that features a STM32F107VCT6 device as the microcontroller. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 connectivity line microcontroller. What's On Board STM32F107VCT6: the high performance STM32 MCU which features: Core: ARM Cortex-M3 32-bit RISC Operating Frequency: 72MHz, 1.25 DMIPS/MHz Operating Voltage: 2-3.6V Package: LQFP100 I/Os: 80 Memories: 256K Flash, 64K RAM Communication Interfaces: 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 2 x I2C, 1 x Ethernet MAC, 1 x USB OTG, 2 x CAN AD & DA converters: 2 x AD (12-bit, 1?s, shares 16 channels); 2 x DA (12-bit) Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP AMS1117-3.3: 3.3V voltage regulator Power supply switch: 5V DC or USB Power indicator; LEDs: Convenient for indicating I/O status or program running state Reset button; User key; Joystick: Convenient for I/O input (five positions) 32.768K crystal oscillator: for internal RTC 25M crystal oscillator; Ethernet Interface: easily connects the MCU to ethernet network by using an additional ethernet module 8 I/O Interface: easily connects to keypad, motor, etc. CAN1 Interface: communicates with accessory boards which feature the CAN device conveniently CAN2 Interface: communicates with accessory boards which feature the CAN device conveniently SPI1/SPI2 Interface: easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3, etc. I2C1/I2C2 Interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc. LCD Interface: easily connects to the touch screen LCD ONE-WIRE Interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. PS/2 Interface: easily connects to PS/2 keyboard or mouse USART1 Interface: easily connects to RS232, RS485, USB TO 232, etc. USART2 Interface: easily connects to RS232, RS485, USB TO 232, etc. USB OTG: Communicating with USB Device or USB Host 5V DC jack; 5V/3.3 V power input/output; MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion JTAG/SWD interface: for debugging/programming Boot Mode Selection: for configuring the BOOT0 and BOOT1 pins USB OTG Selection Jumper Short the jumper to enable USB OTG, connects to MCU I/O Open the jumper to disable USB OTG, disconnects from MCU I/O PS/2 Interface Jumper Short the jumper to connect the PS/2 device to default I/Os Open the jumper to connect the PS/2 device to custom I/Os via jumper wires LEDs Jumper Short the jumper to connect the LEDs to default I/Os Open the jumper to connect the LEDs to custom I/Os via jumper wires VBAT Selection Jumper Short the jumper to use system power supply Open the jumper to make it possible to connect the VBAT to external power, such as battery Photos Open107V Development Board Connecting to touch screen LCD Connecting to ST-LINK Connecting to various peripherals Open107V ?C/OS-II (I) Open107V ?C/OS-II (II) Open107V ?C/OS-II (III) Open107V ?C/OS-II (IV) Connecting to RS232 Board via USART Connecting to USB UART Board via USART Connecting to CAN Board via CAN Connecting to VS1003B MP3 Board via SPI Connecting to NRF24L01 RF Board via SPI 8 Push Buttons on the 8Bit I/O 4x4 Keypad on the 8Bit I/O Test Board on the AD/DA port Connecting to EEPROM Board via I2C Multi I2C peripheral Module connected to the I2C bus Connecting to DataFlash Board via SPI Connecting to Ethernet Board via Ethernet Interface Connecting to any accessory board you need Note: The Open107V supports programming via STM32 USART bootloader, a USB TO UART accessory board is also provided in the package. The Open107V does NOT integrate any debugging function, a debugger is required. JTAG/SWD Interfaces The figure 1, and 2 show the header pinouts of JTAG/SWD interface Figure 1. JTAG Header Pinout Figure 2. SWD Header Pinout Development Resources The User Guide CD includes development resources listed as follow: Related softwares (KEIL etc.) Demo Code (examples in C, ?C/OS-II) Schematic (PDF) STM32 Development documents (Datasheet etc.) Package Contains The "Standard Package" and "Accessory Boards Package" below are included. Standard Package Open107V development board x 1 PL2303 USB UART Board (mini) x 1 USB type A plug to mini-B plug cable x 1 USB type A receptacle to mini-B plug cable x 1 4-pin wire x 2 2-pin wire x 2 USB power cable x 1 User Guide CD x 1 1 2 3 4 5 6 7 8 Accessory Boards Package 3.2inch 320x240 Touch LCD (A) x 1 Analog Test Board (for AD/DA testing) x 1 SN65HVD230 CAN Board (CAN) x 1 DP83848 Ethernet Board x 1 AT24CXX EEPROM Board (I2C) x 1 Micro SD Storage Board (SDIO/SPI) x 1 AT45DBXX DataFlash Board (SPI) x 1 VS1003B MP3 Board x1 Ethernet Cable x 1 1 2 3 4 5 6 7 8 9 Terms & Conditions Payment: · PayPal is the only method of payment that we accept. Shipping: · We ship items to Worldwide! · Please confirm your address in paypal, phone number is also very important. · All items will be shipped within 48 working hours on receipt of cleared payment. · We'll add a tracking number after sending the item so that you can track your parcel. Returns Policy: · We are happy to return any unused item in its original packaging within 14 days of delivery. · Buyers are responsible for the round(two-way) shipping cost. Feedback: · We'll leave POSITIVE FEEDBACK on receipt of cleared payment. · If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us. · Once any problems occured, please contact us first. We'll try our best to work things out. FAQ: ·More details(Click) If you have any question, please feel free to contact us. It's our pleasure to serve you! We appreciate your business!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Waveshare
Country/Region of Manufacture	China
Model	Open107V Package B
Onboard MCU	STM32F107VCT6
