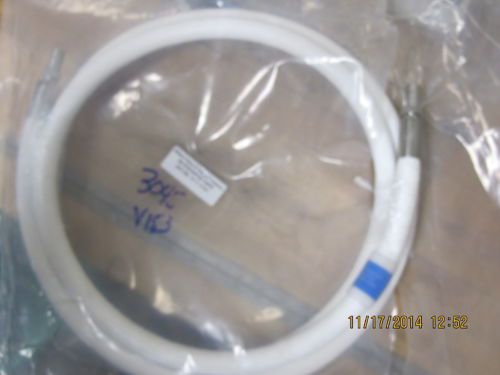

Swagelok 1/2 ” X 120” Ptfe Stainless Braid Silicone Cover Sanitary S Series Hose Fl

US $125.00

Walled Lake, Michigan, United States
Jan 30th

Open on mobile:
QR code

Swagelok 1/2 ” x 120” PTFE Stainless Braid Silicone Cover Sanitary S Series Hose Fluid Temperature & Pressure Extremes SS-ST8TA8TA8-120 You are bidding on a roll of Swagelok 1/2 ” x 120” PTFE Stainless Braid Silicone Cover Sanitary S Series Hose Fluid Temperature & Pressure Extremes SS-ST8TA8TA8-120. http://www.swagelok.com/search/find_products_home.aspx?SEARCH=/search/Fiber+Braid,+304+SS+Braid,+Silicone+Cover/id-10002633/type-1&item=841c1d94-eb2a-4b02-9069-cc9971d9161f Coreflex S Series—Fiber Braid and 304 SS Braid Reinforcement, Silicone Cover S series hose is commonly used where where flexibility and chemical compatibility are desired. Optional carbon black-filled PTFE core is available for applications that require static dissipation. Custom hose lengths and end connections are available. Specifications • Materials • Nominal Hose Sizes • Working Pressures • Temperature Range • End Connections Core: smooth-bore PTFE Reinforcement: fiber braid, 304 SS braid Cover: silicone Collar: 300 series SS End connections:316 SS 1/8 through 1 in. Up to 3500 psig (241 bar) –65 to 450°F (–53 to 230°C) Swagelok tube fittings, Swagelok tube adapters, NPT fittings, sanitary clamps, tube butt weld fittings, SAE 37° (JIC) female swivel fittings, cam and groove fittings, tube stubs, VCR metal gasket face seal fittings, female VCO O-ring face seal fittings, ISO/BSP parallel thread fittings, vacuum flanges, lap joint flanges, I-line fittings Testing Every Swagelok S Series hose assembly is pressure tested with water at room temperature for 30 seconds to a requirement of no detectable leakage. Testing is performed at 1000 psig (69 bar), or 225 psig (15.5 bar) if an end connection is rated below 1000 psig (69 bar). How Swagelok PTFE Hose Is Bringing New Flexibility to Fluid Systems Choose from Swagelok X, S, or W Series PTFE Hose. The X Series hose is a PTFE hose constructed with Swagelok's unique braiding process that bonds a nonconductive fiber braid to the smooth-bore PTFE core to help the core resist kinking and enhance flexibilty with a 304 stainless steel over-braid to protect the core from abrasion and enhance the hose's pressure rating and flexibility. It is commonly used where chemical compatibility and ultra flexibility are desired. The S Series PTFE hose is the X Series with a Silicone cover that provides smooth, non-contaminating, easy-to-clean surface and insulation from internal system fluid temperature extremes. SHIPPING: This item has a combined shipping weight of 4 pounds and will be shipped FedEx or USPS MAIL. We combine shipping on multiple orders. Check with us for competitive shipping rates. There is no charge for pick up at our Northwest Detroit Suburb location. You are welcome to physically inspect this item. We are located in a Northwest Suburb of Detroit Michigan. Make an appointment. Robert at spectorequipment.com 248-752-5084 We accept most forms of payment including: Credit Cards, Pay-Pal, personal, company and cashier’s checks, pay on pick up. All funds must clear our bank before delivery. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Swagelok
MPN	SS-ST8TA8TA8-120
Model	1/2" PTFE Stainless Braid Sanitary Hose
Country/Region of Manufacture	United States
