Syncwatch 200 Probe By Chronos Technology And Symmetricom

US $150.00

Palo Alto, California, United States
Jan 29th

Open on mobile:
QR code

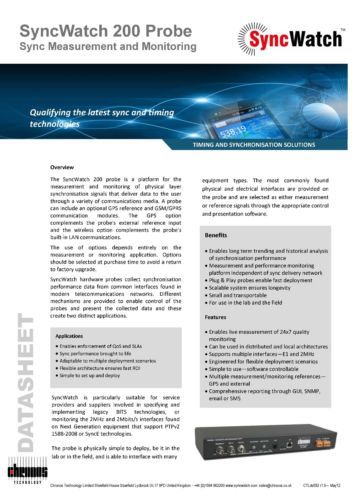

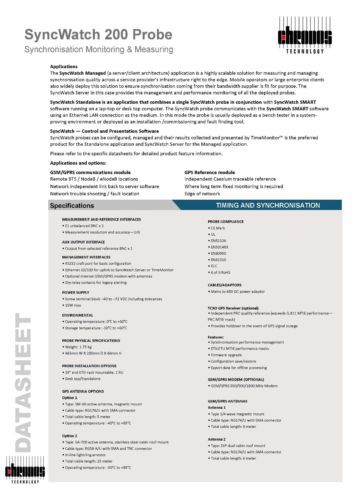

The SyncWatch 200 probe (often known as the MKI probe) is a simple synchronisation data acquisition device that can measure 2MHz, 2Mbits signals found in most Telecom Networks globally. The probe is able to operate in different “modes” to suit operating requirements. SyncWatch StandaloneTM systems allow users to prove the performance of all the current synchronisation protocols and timing interfaces found in legacy and evolving networks. SyncE, ESMC, 1588_v2, 1PPS+TOD, 1PPS, Frequencies (64K-200MHz), T1 & E1 protocols and interfaces are supported Full specs: SYSTEM REFERENCES INPUTS & OUTPUTS TIE Measurement Engine: TIE, MTIE, RTIE & RMTIE 1nS (4nS for 1PPS) resolution & accuracy. One reference signal and two measurement signals can be chose from any of the following signals (subject to availability): External Connectors: 2 x telecom inputs for E1 and T1 signals—either G.703 -13 or G.703-9, 75/120? or G.703-5 100?—BNC or RJ48 2 x frequency inputs—64kHz to 200MHz in 8kHz steps 50? or Hi-Z BNC 1 x frequency input—1, 1.544, 2.048, 5 or 10MHz 50? BNC 1 x PPS—100k ? or 50 ? BNC 1 x 100M Fast Ethernet SyncE frequency only 2 x 100M/1G Electrical SyncE + ESMC RJ45 2 x optical SyncE + ESMC SFP 1 x PPS/ToD G.8271 interface 8P8C/RJ45 style (RS.422/V.11) Internal signals from optional features: GPS: 2.048MHz and 1PPS PTP: 2.048MHz and 1PPS Output signal: Buffered output of any non-framed external input or PTP Packet Measurement Engine: 1588-2008 v2 telecom profile G.8265.1 and G.8275.1 (draft) 1588-2008 v2 power profile IEC 61850 IEEE C.37.118 & C.37.238-2011 Timestamp resolution 8nS Time stamp accuracy when using GPS <50nS RMS to UTC Time stamping of Sync/Follow-up and/or Del-Req/ Delay_Resp messages REFERENCE OPTIONS Rubidium GPS Receiver Reference: Independent PRC quality reference (exceeds G.811 MTIE performance) Provides Rubidium holdover in the event of GPS signal outage Standards L1 GPS, 5V @ max 25mA antenna current, SMA connector female OCXO GPS Receiver Reference: Independent PRC quality reference (exceeds G.811 MTIE performance) Provides no holdover in the event of GPS signal outage Standards L1 GPS, 5V @ max 25mA antenna current, SMA connector female Support for correction field values (Transparent clock) GrandMaster clock: supports up to 10 PTP clients (application specific) GENERAL PROBE FEATURES Probe Management Interfaces: 10/100 BaseT on RJ45 RS232 on DB9 connector Probe Management: CLI and SyncWatch SMART software Probe Power Supply: -40 to –72 VDC 15W max (base probe) 40W max (with options) Probe Environmental: Op temperature: 0°C to +50°C Storage temp: -10°C to +60°C Probe Physical Specifications: Weight: (base probe) 1.75 kg Weight (with options) 2.2 kg 443mm W x 200mm D x 44mm H Probe Installation Options: 19” and ETSI rack mountable, 1U Cables/Adaptors: Mains to 48V DC power adaptor Cable and connector kit (optional) GPS antenna kit (optional) Probe Compliance: UL CE Mark RoHS (6 of 6) FCC EN55022 PC SOFTWARE IS NOT INCLUDED! Signature is required upon delivery. International bidders ask for a shipping quote before placing a bid.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Symmetricom
MPN	SW100490
Model	TimeWatch
Manufacturer	Chronos
