T12 Oled Digital Welding Iron Station Blue Display Temperature Controller Board

US $450

Shanghai, China
Nov 14th

Open on mobile:
QR code

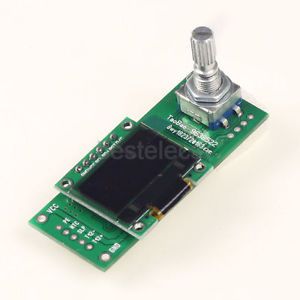

T12 OLED Digital Welding Iron Station Blue display Temperature Controller Board Description Features: Automatic standby Vibration wake-up NTC temperature compensation, Beep reminder Automatic shut-down Low voltage protection Screen protection Display: OLED display PCB Size: 61*24mm Note 1: T12 positive and negative short circuit may burn PMOS, short circuit with other lines may burn IO, so before powering, please make sure the wiring is right and good. Power supply voltage is best not to exceed DC 25V, otherwise it may affect the life of T12. When replacing the soldering iron head, please switch off the power supply. Operation: Main interface, short press the encoder to enter the enhanced mode, the upper left corner of the main interface to highlight the enhanced (enhanced temperature adjustable, the default temperature is 50℃) Main interface, press the encoder (about 1-2 seconds) into the standby mode, the upper left corner of the main interface shows standby (default standby temperature is 200℃) Long press to enter the menu settings, click to enter the sub-menu, turn left to return to the previous menu, turn right to the next level menu, long press to exit the menu item and save the setting parameters. Main interface, turn left to reduce the temperature (minimum 180℃), turn right to increase the temperature (maximum 430℃) Temperature calibration: Prepare a white T12 of the soldering iron thermometer. After the normal heating and stabilizing the temperature of the soldering iron, the tip of tin and the thermometer temperature line full contact, and follow the steps to enter the settings. Step: long press the encoder ---- into the menu "basic settings" ---- "thermoelectric parameters" ------ adjust the appropriate value (default 42) First observe the default parameters, the temperature difference between the thermometer and OLED display, and then increase or decrease the value, long press the exit menu (which will automatically save the set parameters), then observe whether the temperature is close or not. You can try several times until you reach a satisfactory value. Note 2: Low voltage protection: When the battery voltage drops to the preset "buzzer voltage", the buzzer will be warned and it can be used normally. When the battery voltage drops again to the "sleep voltage", the buzzer warning, and forced it into the sleep state, the soldering iron completely stop heating and reduce the temperature. At this point any wake-up mode is invalid, you can only enter the menu to reduce the sleep voltage or shutdown charge, so as to protect the role of the battery. The default is off, minimum voltage is 4V. If you need this function, you set the desired beep voltage and sleep voltage. Burning screen: After OLED display screen displaying for a long time, if there is no screen protection function, there will be the original font or symbol display blur or bad display in the fixed display position. You can use the screen protection to avoid this situation. Package List: 1pcs T12 OLED Digital Smart Welding Iron Station Temperature Controller Board Payment We accept Paypal as the payment method. Shipping policy The default shipping is by China Post air mail/Hongkong air mail. We provide combined shipping to USA by e-Packet service. When you place order for multi items,please contact us. We will only charge you 1.8USD shipping cost for the whole order. Item will be shipped within 1-2 working days after full payment is received. The delivery to most of the countries will take 2-4 weeks, if there's no problem when pass through the customs. We only accept your eBay address. Please make sure payment address in PayPal is correct. Any non-received items caused by invalid address registered on PayPal are not in our full refund or replacement policy. The extra fee occured when the product pass through the customs should be paid by buyer Return policy If you can't receive the product within 2 months (60 days), please contact with us,we promise to payback 100% of your money. We ensure our products work normally before post.If the products is broken before arrival to you,all you should do is taking a photo to show us our broken product.We promise to payback 100% of your money. If you don't satisfy with our product,please help to post our product back to us.You should pay the post back postage.After we receive our product,we promise to payback 100% of your money. About us We sell Electronic Components including Capacitors, Resistors, LEDs, Transistors, IC's, Bridge Rectifiers and other hard to find parts. We can also provide customized design and manufacture services. Contact us If you have any questions, please feel free to leave us ebay message or email us directly! All messages will be replied within 1~2 business days except weekends and holidays. Please do not leave negative feedback or open a case before you contact us. Many thanks for your understand On Nov-14-16 at 01:10:57 PST, seller added the following information:
