Tektronix Dsa70604 4 Ch, 6 Ghz, 25 Gsa/sec, 20 Msa Digital Serial Analyzer

US $14,900.00

Skokie, Illinois, United States
Jan 29th

Open on mobile:
QR code

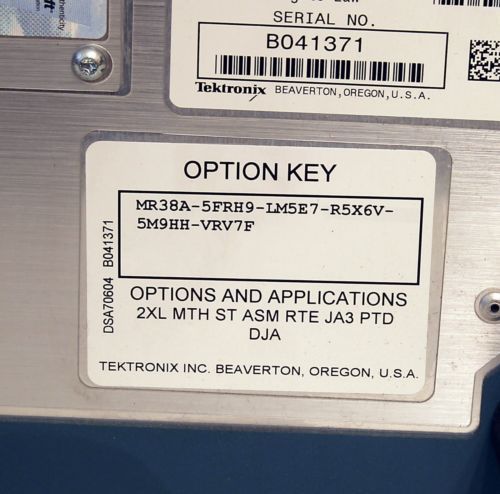

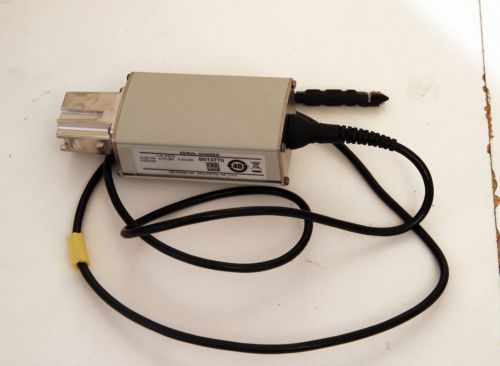

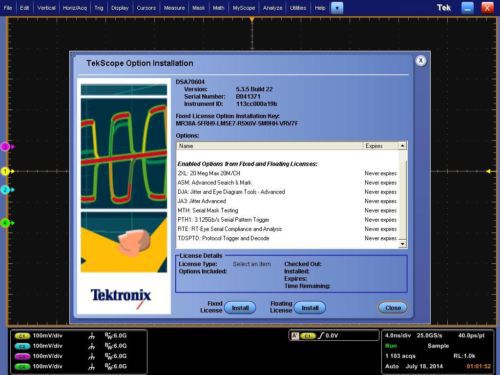

Tektronix DSA70604 4 Ch, 6 GHz, 25 GSa/sec, 20 MSa Digital Serial Analyzer. Good working order. Taken from a working environment. One probe is included. Options included: 2XL -20 Meg Max 20m/CH ASM - Advanced Search and Mark DJA - Jitter and Eye Diagram Tools - Advanced JA3 - Jitter Advanced MTH - Serial Mask Testing PTH1 - 3.125GB/s Serial Pattern Trigger RTE - RT-Eye Serial Compliance and Analysis TDSPTD - Protocol Trigger and Decode Features & Benefits On All Four Channels Simultaneously 20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models Up to 50 GS/s Real-Time Sample Rate Up to 200 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel Digital Serial Analyzer Models with Dedicated Configuration for High-Speed Serial Design and Compliance Testing Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity. Pinpoint® Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation Unique Serial Pattern Triggering up to 3.125 Gbps and 8b/10b Standard Protocol Triggering for Isolation of Pattern-Dependent Effects and NRZ Serial Test Pattern Triggering up to 6.25 Gbps Serial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fiber Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0 High-Speed Serial Data Link Analysis for Transmitter Channel Embed or De-embed and Receiver Equalization Emulation Most Popular Jitter, Timing, and Eye-Diagram Analysis Package DDR Memory Bus Analysis 12.1-in. Largest XGA Touch-Screen Display in the Industry Event Search and Mark to Facilitate the Comprehension of Event Relationships MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency OpenChoice® Software with Microsoft Windows XP OS Enables Built-In Networking and Extended Analysis Applications Signal Integrity, Jitter, and Timing Analysis Verification, Debug, and Characterization of Sophisticated Designs Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards Investigation of Transient Phenomena Spectral Analysis Unmatched Performance for Greater Insight Into Your Design to Get Your Work Done Faster The DPO70000 and the DSA70000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging, and testing sophisticated electronic designs. The specialized DSA70000 Series provides a complete and dedicated solution to address the challenges of high-speed serial designs. The family features exceptional performance in signal acquisition and analysis, operational simplicity, and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Tektronix
Channels	4
Model	DSA70604
Sample Rate	Over 20GSa/s
Type	Digital
Make	Tektronix
Bandwidth	4GHz - 7GHz
