Tektronix Tds 784d Opt 13/1f/2f/hd/1m 1 Ghz 4gs/s

US $3,150.00

Encinitas, California, United States
Mar 9th

Open on mobile:
QR code

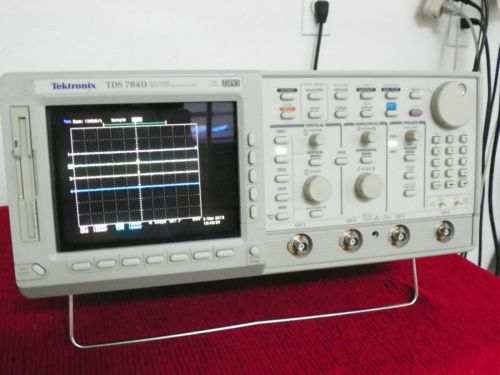

These TDS 784D S/N B032855 and B023684 have options13, 1F, 2F, HD and 1M and are in immaculate condition. Units pass self test, SPC and all functional/diagnostic tests. 1 GHz Bandwidth, 4 Channels Sample Rates to 4 GS/s Record Lengths to 8 M Points Up to 200,000 Waveforms per Second 8-Bit Vertical Resolution, >11 Bits with Averaging and >13 Bits with Hi-res 1 ns Peak Detect Floppy Disk Storage Iomega Zip and Zip Plus Drive Compatible Advanced Triggering 29 Automatic Measurements and Measurement Statistics FFT, Advanced Math, Histograms, Limit Test FastFrame Time Stamp Communication Signal Analysis, Including Mask Testing and SONET/SDH and Fibre Channel Optical Reference Receivers GPIB Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application The scope has the following options: 05: Video Trigger gives you a variety of tools for investigating events that occur when a video signal generates a horizontal or vertical sync pulse. It allows you to investigate a range of NTSC, PAL, SECAM and high definition TV signals. 13: RS-232-C and Centronics interface ports. 1F: 1.44MB Floppy drive. 1M: Extended Acquisition Memory 2F: Advanced DSP math features such as FFT, integration, and differentiation. HD: Hard disk drive. This particular scope has a 175MB solid-state flash drive, so no worries about the heads crashing if the scope is bumped during operation. 2C: Communication Signal Analyzer. Oscilloscope comes configured for communications signal triggering and mask testing. Features & Benefits Measurements Include: Cycle-Cycle, N-Cycle, Skew, Period, Width, Duty Cycle, Frequency, Time Interval Error, Data Jitter, Jitter Spectrum, Ch-Ch Delay, Setup Margin, Hold Margin, Clock to Output Timing, Rise, Fall, High and Low Time Characterize Jitter on Single Inputs, Differential Inputs and Channel to Channel Waveforms Define Timing Analysis Features by Slope, Level and Hysteresis Measure Jitter Timing Parameters Over Contiguous Clock Cycles Analysis is Performed on Each and Every Valid Pulse in a Single-shot Acquisition Plot Trends of all Jitter Timing Measurements vs. Cycle or Time Comprehensive Statistics and Customized Histograms on all Jitter Parameters Perform Jitter Analysis Without External Equipment Installs Inside the Oscilloscope Offers Measurement Automation and Control Through GPIB Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Tektronix
Channels	4
Model	TDS 784D
Sample Rate	4GSa/s - 4.9GSa/s
MPN	TDS 784D
Make	Tektronix
Type	Digital
Number of Channels	4
Bandwidth	1GHz - 1.9GHz
