Terasic Technologies P0103 Video & Embedded Dev Kit (veek Mt) Multi-touch

US $590.00

Damascus, Maryland, United States
Jan 29th

Open on mobile:
QR code

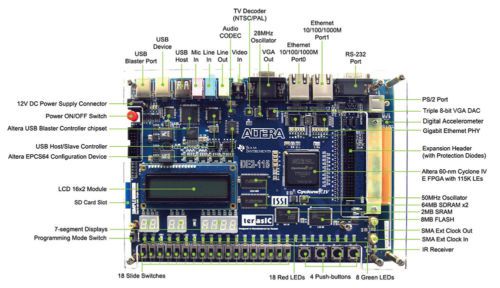

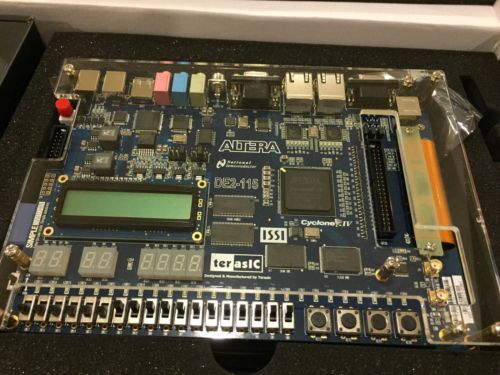

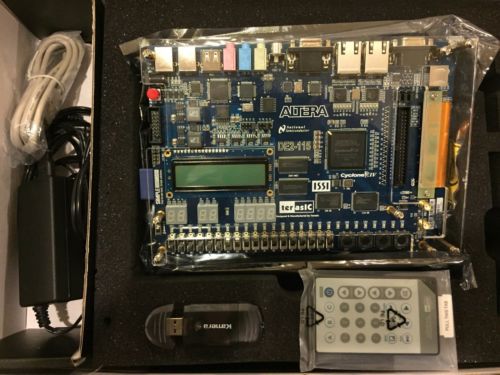

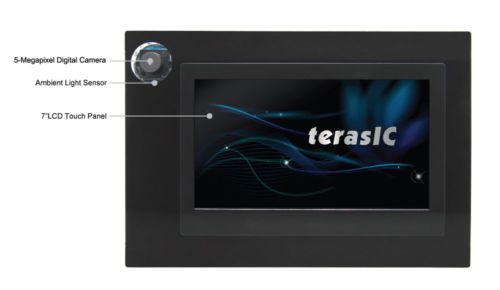

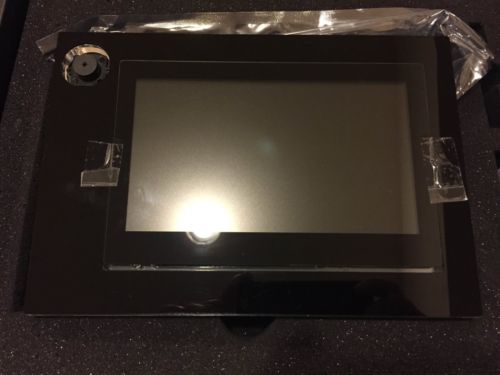

You are bidding on a Terasic Technologies P0103 VEEK-MT. This item is in excellent condition and has hardly been used at all. The Video and Embedded Evaluation Kit - Multi-touch (VEEK-MT) is a comprehensive design environment with everything embedded developers need to create processing-based systems. VEEK-MT delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs for developing embedded software and hardware platform in a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT features the DE2-115 development board targeting the Cyclone IV E FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports multi-touch gestures. A 5-megapixel digital image sensor, ambient light sensor, and 3-axis accelerometer make up the rich feature-set. DE2-115 Development Board Cyclone IV EP4CE115 FPGA • 114,480 logic elements (LEs) • 432 M9K memory blocks • 3,888 Embedded memory (Kbits) • 266 Embedded 18 x 18 multipliers • 4 General-purpose PLLs • 528 User I/Os Configuration • EPCS64 serial configuration device • On-board USB-Blaster circuitry • JTAG and AS mode configuration supported Memory Devices • 128MB SDRAM • 2MB SRAM • 8MB FLASH with 8-bit mode • 32Kbit EEPROM Switches and Indicators • 18 switches and 4 Push-buttons • 18 red and 9 green LEDs • Eight 7-segment displays Audio • 24-bit encoder/decoder (CODEC) • Line-in, line-out, and 3.5mm jacks Character Display • 16x2 LCD module On-board Clocking Circuitry • Three 50MHz oscillator clock inputs • SMA connectors (external clock input/output) SD Card Socket • Provides SPI and 4-bit SD mode for SD card access Two Gigabit Ethernet Ports • Integrated 10/100/1000 Ethernet 172-pin High Speed Mezzanine Card (HSMC) • Extension for LCD and camera module • Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V) USB Type A and B • Provides host and device controller compliant with USB 2.0 • Support for data transfer at full-speed and low-speed • PC driver available 40-pin Expansion Port • Configurable I/O standards (voltage levels: 3.3/2.5/1.8/1.5V) VGA-out Connector • VGA DAC (high speed triple DACs) DB-9 Serial Connector • RS-232 port with flow control PS/2 Connector • PS/2 connector for connecting a PS/2 mouse or keyboard Remote Control • Infrared receiver module TV-in Connector • TV decoder (NTSC/PAL/SECAM) Power • 12V DC input • Switching and step-down regulators LM3150MH Capacitive LCD Multi-touch Screen • 7-inch TFT LCD with pixel resolution of 800*480 • 16 million colors (8-bit RGB) • LED backlight 5-Megapixel Digital Image Sensor • 2,592H x 1,944V active pixels with Bayer color arrangement • Programmable frame rate up to 70FPS (VGA) • Snapshot-mode mode to take frames on demand • Simple two-wire serial control interface Digital Accelerometer • Up to 13-bit resolution at +/- 16g • SPI (3- and 4-wire) digital interface • Flexible interrupts modes Ambient Light Sensor • Precise illumination measurement under diverse lighting conditions • Programmable interrupts • 16-bit digital output with I2C fast-mode at 400 kHz • Programmable analog gain and Integration time • 50/60Hz lighting ripple rejection
