tested National Instruments Ni Pxi-6123 Tb-2709 Smb 8-ch Simultaneous Daq Kit

US $975.00

Boise, Idaho, United States
Feb 15th

Open on mobile:
QR code

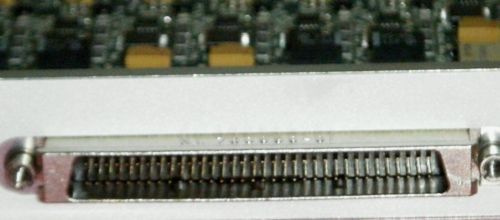

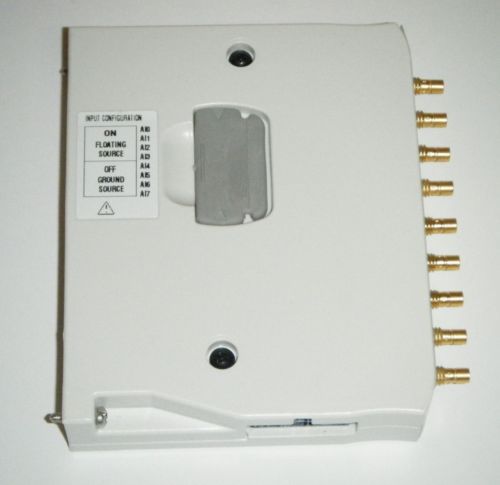

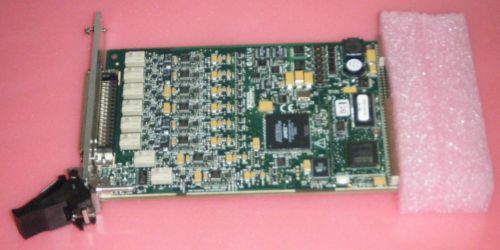

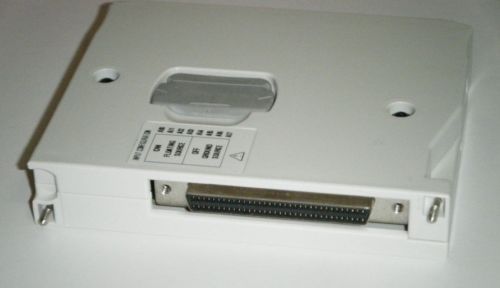

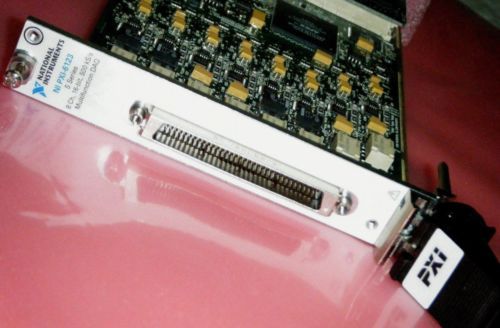

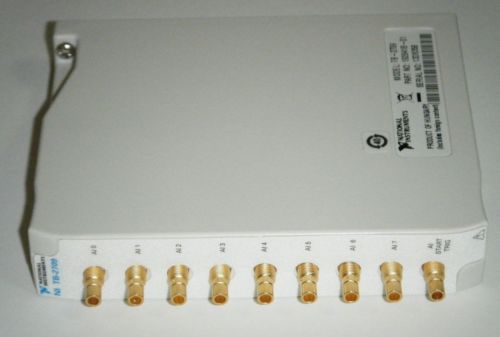

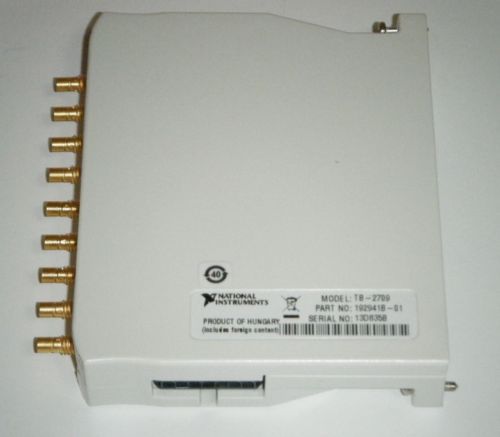

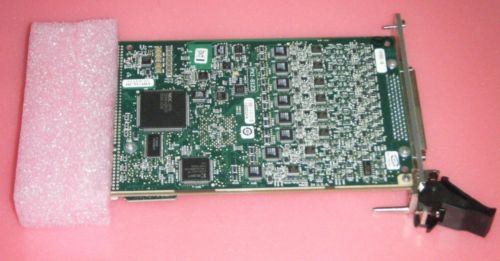

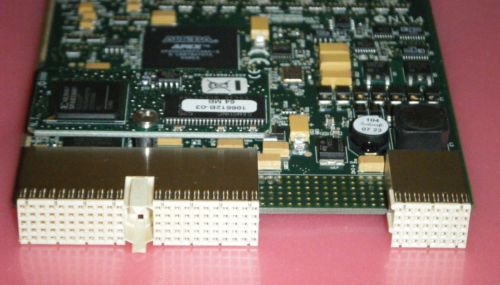

This listing is for fully tested National Instruments (NI) PXI-6123 8 Channel, 16-Bit, 500 kS/s/ch, Simultaneous Sampling Multifunction DAQ module with front panel mating Terminal Block, TB-2709, providing SMB interface to each of the 8 channels. The TB-2709 can be set for floating or ground referenced signal on a channel by channel basis. The TB-2709 also provides for an interface for pigtail cable (not included- available from NI) on bottom edge of TB that provides access to 8-bit digital IO and subset of counter/timer lines of the PXI-6123, accessible directly from the 68-pin edge connector if not using the TB-2709. The PXI-6123 has the 16MS memory option and has assembly # 191855C-04. The TB-2709 has assembly # 192941B-01. Also included is one used SMB-100, 24" SMB to female BNC cable, a Pomona 36" male BNC to male BNC cable, copy of PXI-6123 specifications, 68-pin connector pin-out, block diagram, and TB-2709 Installation Guide. From NI- The National Instruments PXI-6123 S Series multifunction data acquisition (DAQ) module features a dedicated analog-to-digital converter (ADC) per channel for maximum device throughput and higher multichannel accuracy. With 500 kS/s per-channel sampling rates, four input ranges from ±1.25 to ±10 V, two 24-bit counter/timers, and eight hardware-timed digital I/O lines, the NI PXI-6123 can be used in a variety of applications, including: - High-speed, continuous data logging - Transient and ballistics measurements - Radar, sonar, ultrasound - High-energy physics - IF digitization Summary Features- 8 simultaneously sampled analog inputs, 16-bit, 500 kS/s per channel 4 input ranges from ±1.25 to ±10 V and deep onboard memory (16 MS) 8 hardware-timed digital I/O lines; two 24-bit counters; analog and digital triggering The PXI-6123 module, TB-2709, and other items will be packaged and sent by USPS Priority Mail, insured, signature required. The tracking # will be entered into ebay and paypal systems after shipment.

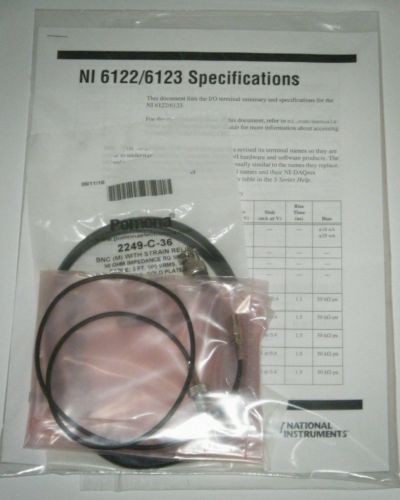

“PXI-6123 and TB-2709 are fully tested and in excellent condition. The module and terminal block have minor cosmetic wear that will not affect function or performance. Also included is one SMB-100 24" SMB to female BNC cable (used), one new Pomona 36" Male BNC to Male BNC cable, hardcopy of the PXI-6123 specification, PXI-6123 68-pin connector pin-out with signal identification, PXI-6123 block diagram, and a TB-2709 installation guide.”
