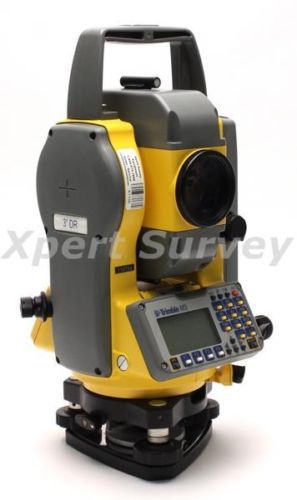

Trimble M3 3" Dr Mechanical Reflectorless Total Station M 3

US $3,595.00

Southgate, Michigan, United States
Jan 30th

Open on mobile:
QR code

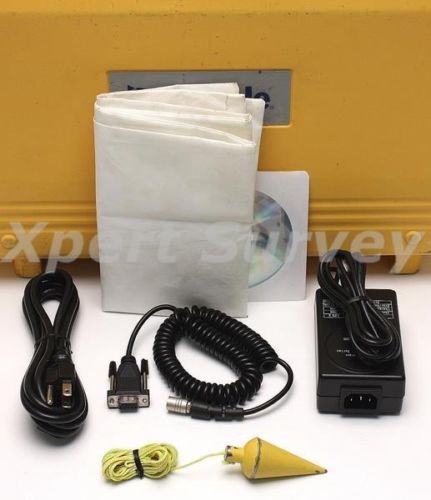

Included Items Item Description Shipping Info Payment Info * Trimble M3 3" DR Mechanical Total Station [ID- X1108] * Plumb Bob * RS232 Charger Cable * Rain Cover For Unit * BC-80/65 Battery Charger P/N: HXE21202 * Power Cord * User Manual On CD-ROM * Hard Carrying Case Condition: Refurbished Warranty: 90 Day Exchange Trimble M3 3" DR Mechanical Reflectorless Total Station Trimble M3 Mechanical Total Station One of Your Toughest and Most Reliable Crew Members When you arrive on the job site, just pull the Trimble® M3 Total Station out of its ruggedized case and get to work. This rugged and reliable instrument delivers whatever the conditions. The Trimble M3 combines tough construction with practical hardware and software functionality: Rugged aluminum housing ensures IPX6 water resistance Long battery life provides 7 hours of continual measurement or one full day of typical measurement activities without needing to recharge A large internal memory stores up to 10,000 data lines in the field ... several days’ worth of data collection. The onboard software supports multiple jobs so you can work on different jobs or projects without downloading in-between. DR (direct reflex) technology lets you measure safely to hard-to-reach places without a prism. This feature also enables one-person surveying, freeing up the time of other crew members. The Trimble M3 Total Station is also extremely easy to use. Its intuitive software and workflow mean your crew won’t lose time and productivity on a steep learning curve. The Accuracy You Need Every Time No matter what the conditions, you can rely on the Trimble M3 to consistently deliver the accuracy you need for every job. To ensure accuracy, the Trimble M3 offers the following features: An internal optical plummet expedites setup and ensures high accuracy stationing. Proven Nikon optics ensure clear, quality and precise aiming. 3 mm + 2 ppm EDM provides fast, accurate and reliable measurements. Focusing DR technology provides complete measurement confidence. You always know that what you see is what you’re measuring. By The Surveyors at Trimble For Surveyors Like You Only a surveyor knows what a surveyor needs. And at Trimble, qualified surveyors develop products they know will help surveying professionals like you get the job done ... every time. So when you’re investing in a total station, Trimble is the name you can trust. The Trimble M3 Total Station gives you access to Trimble’s long reputation in developing the highest quality surveying instruments. And our 24/7 worldwide support means you’re never alone; the surveyors at Trimble are ready to lend a hand whenever you need it. Features: A rugged workhorse with practical hardware and software functionality Proven Nikon optics and Trimble onboard software Unique features for accuracy and measurement confidence Not just a total station, a partnership with Trimble Specifications: PERFORMANCE Angle Measurement Angle reading (least count) 1"/0.2 mgon Automatic level compensator Dual-axis compensator ±3', (±50 mgon) Distance Measurement Accuracy Prism mode Standard Tracking ±(3 mm + 2 ppm) ±(0.01 ft + 2 ppm) ±(3 mm + 3 ppm) ±(0.01 ft + 3 ppm) ±5 mm (±0.016 ft) for less than 10 m (32.8 ft) with mini-prisms ±(10 mm + 5 ppm), ±(0.033 ft + 5 ppm) Reflex tape Standard Tracking ±(3 mm + 2 ppm) ±(0.01 ft + 2 ppm) ±(3 mm + 3 ppm) ±(0.01 ft + 3 ppm) ±5 mm (±0.016 ft) for less than 5 m (16.4 ft) with reflector sheet ±(10 mm + 5 ppm), ±(0.033 ft + 5 ppm) DR mode Standard Tracking ±(5 mm + 2 ppm) ±(0.016 ft + 2 ppm) ±(5 mm + 3 ppm) ±(0.016 + 3 ppm) ±(10 mm + 5 ppm) ±(0.033 ft + 5 ppm) Shortest possible range to target 1.6 m (5.25 ft) Measuring time Prism mode Standard Tracking 1.3 sec (initial 2.0 sec) 0.5 sec (initial 1.6 sec) DR mode Standard Tracking 1.6 sec (initial 2.6 sec) 0.8 sec (initial 2.0 sec) Range (under standard clear conditions) Prism mode 1 prism 3 prism Reflective foil 20 mm Reflective foil 60 mm (1.97 in) 5000 m (16,404 ft) 5000 m (16,404 ft) 200 m (656 ft) 300 m (984 ft) DR mode Kodak Grey Card (18% reflective) Kodak Grey Card (90% reflective) 85 m (278 ft) 210 m (688 ft) GENERAL SPECIFICATIONS Light source Pulsed laser diode 870 nm, Laser Class 1 Atmospheric correction Manual setting temperature and pressure Leveling Plate level vial 30"/2 mm, circular level vial 10'/2 mm Clamps and slow motions Coaxial tangent, clamp knobs Centering Centering system Optical plummet Magnification Shortest focusing distance Trimble 3-pin Erect 3x 0.5 m (1.64 ft) Telescope Magnification Aperture Field of view at 100 m Shortest focusing distance 26x 40 mm (1.57 in) 2.6 m (8.5 ft) at 100 m (328 ft) (1?30") 1.6 m (5.25 ft) Environmental Operating temperature Dust and water proofing –20 ?C to +50 ?C (–4 °F to +122 °F) IP56 Display Graphic LCD (128x64) with LED backlight Keyboard 25 keys, alphanumeric (cell phone style) Power supply Internal battery Operating time Rechargeable Ni-MH 7.2 V, 3.8 Ah Approx 7 hours Weight Instrument Tribrach 4.7 kg (10.4 lb) (no tribrach w/battery) 0.7 kg (1.54 lb), detachable Dimensions Dimensions (instrument) (DxWxH) Trunnion axis height 173 mm x 168 mm x 347 mm (6.81 in x 6.61 in x 13.66 in) 181.5 mm (7.15 in) Software and Recording Software features Resection; known station; station elevation; measure topo; stakeout (known stake out elements); RefLine 2D; DivLine 2D; eccentric measurement; connecting distances (radial, polygonal); remote object; station and offset; vertical plane; computation area Memory capacity 10,000 data lines Data input/output RS232, baud rate up to 38,400 bps, data formats: M5 and Nikon External recording via RS232 Nikon CERTIFICATION Class B Part 15 FCC certification, CE Mark approval and C-tick approval We will attempt to ship your item(s) within 24 hours after payment has been received. Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you Put your listings on autopilot with Kyozou eBay Listing Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Trimble
Model	M3
