Two Hole Pins. Vertical Level Vial. Standard, 1/2" To 1-5/8" Rebel. Aluminum!

US $53.00

Sulphur Springs, Arkansas, United States
Jan 30th

Open on mobile:
QR code

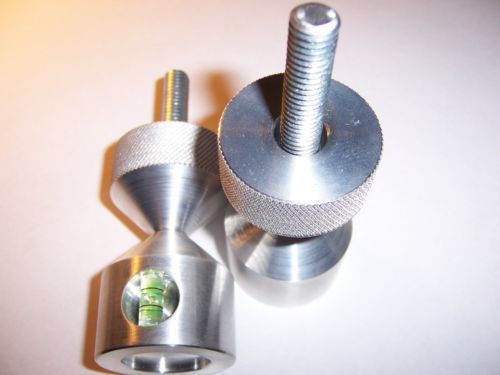

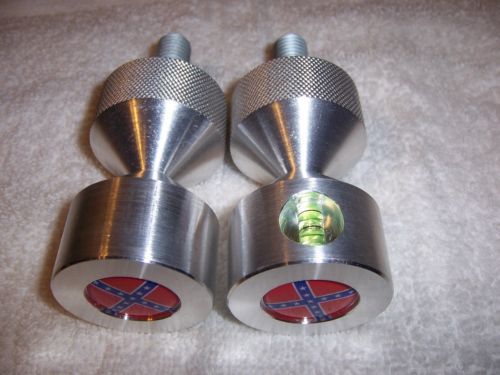

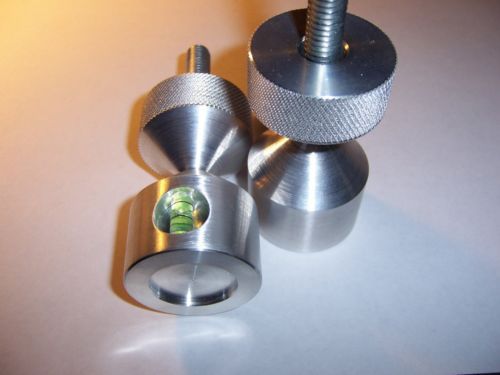

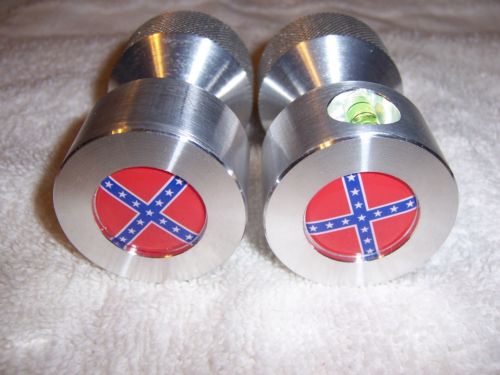

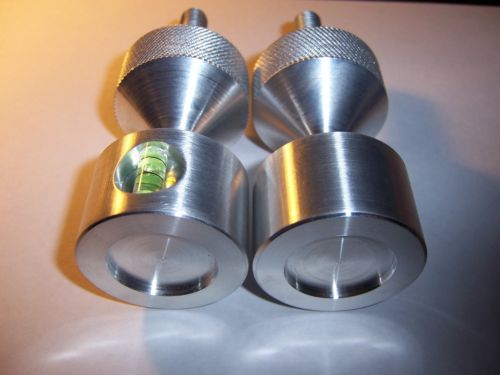

Hi, up for sale is 1 set of standard sized, aluminum, "2 hole" pins. One pin has a level vial for easy vertical leveling, and comes with a 360° vial that just "snaps" in for easy replacement. These are also spot faced 15/16" I.D. by .070" deep, for customizing, and have the Rebel Battle Flag added. The decals are 15/16" O.D., Polyurethane, and U.V. resistant. The 1" will not fit, unless you can trim them. I have replacement Level vials in my store, as well. These measue 1-5/8" O.D., and will fit holes from 1/2" to 1-9/16", and are very light weight, but strong. These have a 45 degree taper with 1/2"-13 removable threads, 3" long, with knurled nuts. Welding splatter is fairly easy to remove from the aluminum, if it should get on there. Every serious pipe fitter, metal fabricator, millwright, or welder in the field should have a set. I will combine shipping for International shipping. Just order more than 1 set at a time, and I will refund the difference. I don't make money on shipping. Thanks for looking. Carbon and stainless, flange reference guide - Class 150 Flanges - outside and inside diameters, bolt circles, numbers and diameters of bolts for Weld neck, Threaded, Slip-on, Lap joint, Socket weld and Blind flanges. Carbon and stainless steel qualities according ASME B16.5 Table 1A. Pipe Size (inches) Flange Outside Diameter (inches) Pipe Outside Diameter (inches) Number of Bolt Holes Bolt Hole Diameter (inches) 1) Bolt Circle (inches) 1/2 3-1/2 0.84 4 5/8 2-3/8 3/4 3-7/8 1.05 4 5/8 2-3/4 1 4-1/4 1.32 4 5/8 3-1/8 1-1/4 4-5/8 1.66 4 5/8 3-1/2 1-1/2 5 1.90 4 5/8 3-7/8 2 6 2.38 4 3/4 4-3/4 2-1/2 7 2.88 4 3/4 5-1/2 3 7-1/2 3.50 4 3/4 6 3-1/2 8-1/2 4.00 8 3/4 7 4 9 4.50 8 3/4 7-1/2 5 10 5.56 8 7/8 8-1/2 6 11 6.63 8 7/8 9-1/2 8 13-1/2 8.63 8 7/8 11-3/4 10 16 10.75 12 1 14-1/4 12 19 12.75 12 1 17 14 21 14.00 12 1-1/8 18-3/4 16 23-1/2 16.00 16 1-1/8 21-1/4 18 25 18.00 16 1-1/4 22-3/4 20 27-1/2 20.00 20 1-1/4 25 24 32 24.00 20 1-3/8 29-1/2 1) Recommended bolts are 1/8 smaller than the nominal bolt hole diameters shown. Class 300 Flanges - outside and inside diameters, bolt circles, numbers and diameters of bolts for Weld neck, Threaded, Slip-on, Lap joint, Socket weld and Blind flanges. Carbon and stainless steel qualities according ASME B16.5 Table 1A. Pipe Size (inches) Flange Outside Diameter (inches) Pipe Outside Diameter (inches) Number of Bolt Holes Bolt Hole Diameter (inches)1) Bolt Circle (inches) 1/2 3-3/4 0.84 4 5/8 2-5/8 3/4 4-5/8 1.05 4 3/4 3-1/4 1 4-7/8 1.32 4 3/4 3-1/2 1-1/4 5-1/4 1.66 4 3/4 3-7/8 1-1/2 6-1/8 1.90 4 7/8 4-1/2 2 6-1/2 2.38 8 3/4 5 2-1/2 7-1/2 2.88 8 7/8 5-7/8 3 8-1/4 3.50 8 7/8 6-5/8 3-1/2 9 4.00 8 7/8 7-1/4 4 10 4.50 8 7/8 7-7/8 5 11 5.56 8 7/8 9-1/4 6 12-1/2 6.63 12 7/8 10-5/8 8 15 8.63 12 1 13 10 17-1/2 10.75 16 1-1/8 15-1/4 12 20-1/2 12.75 16 1-1/4 17-3/4 14 23 14.00 20 1-1/4 20-1/4 16 25-1/2 16.00 20 1-3/8 22-1/2 18 28 18.00 24 1-3/8 24-3/4 20 30-1/2 20.00 24 1-3/8 27 24 36 24.00 24 1-5/8 32 1) Recommended bolts are 1/8 smaller than the nominal bolt hole diameters shown. FREE! Sellers: Add a FREE map to your listings. FREE!

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Jermamma's
