Tyco Circuit Breaker W23-x1a1g-7.5 Nsn 5925-00-089-3031 New Lot Of 2 - L2214

US $19.99

Danville, Virginia, United States
Mar 7th

Open on mobile:
QR code

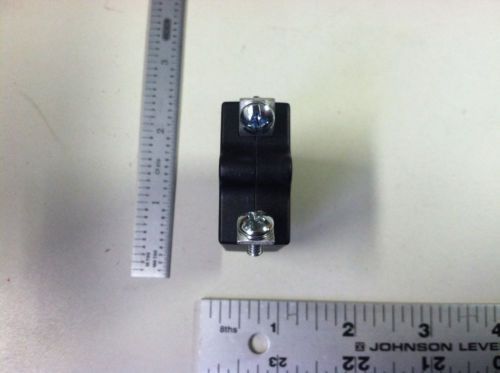

Tyco Circuit Breaker W23X1A1G7.5 NSN 5925-00-089-3031 NEW Lot of 2 New. Stored by US Military. See photos for details. NSN Information: 5925-00-089-3031 (13-0550-0075, 109-507-101, W23X1A1G7.5) Data 5925-00-089-3031 (5925000893031) NSN Information NSN FSC NIIN Item Name INC 5925-00-089-3031 5925 000893031 Circuit Breaker 00136 5925-00-089-3031 Features MRC Parameter Characteristics AAQL Body Style Single pole type ABXD Bushing Length 0.375 inches nominal ADAQ Body Length 1.375 inches nominal ADAT Body Width 0.687 inches nominal ADTV Case Material Plastic AEBP Center TO Center Distance Between Terminals Parallel TO Length 1.020 inches nominal AFJN Fragility Factor Moderately rugged AJWX Mounting Surface TO Terminal END Distance 2.035 inches nominal AKPX Pole Quantity 1 APNQ ARC Quenching Method AIR AXHR Mounting Facility Type AND Quantity 1 threaded bushing BBRG Storage Type General purpose warehouse CMLP Thread Quantity PER Inch 24 CPLM Maximum Continuous Load Current Rating PER Pole 7.5 amperes ac single location and 7.5 amperes dc single location CPRF Operating Voltage Type AND Rating PER Pole IN Volts 250.0 ac single location and 50.0 dc single location CPRG Maximum Interrupting Capacity Current Type AND Rating PER Pole IN Amps 1000.0 ac single location and 2500.0 dc single location CPRH Circuit Protection Type Overcurrent single location CPRJ Trip Release Method Thermal single location CPRL Trip Release Characteristic Time delay single location CPRN Ultimate Trip Rating OF Continuous Current Rating PER Pole IN Percent 135.0 single location CPRQ Reset Method Manual CPRR Main Contact Tripping Mechanism Type Trip free CPRT Manual Actuator Type AND Quantity 1 push-pull CPRW Actuator Function Trip-reset CPRX Actuator Position Designation At pole one CPSM Internal Trip Release Configuration Series trip single location CQJX Nominal Thread Size 0.375 inches CQWN Trip Delay Time IN Seconds PER Rated Continuous Current 6.000 minimum at 200 pct single location and 20.000 maximum at 200 pct single location CQXF Inclosure Protection Type FOR Which Designed Humidity resistant and salt spray proof and shock resistant and vibration resistant CRCF Trip Release Ambient Temp Rating 25.0 deg celsius maximum single location FREQ Frequency IN Hertz 400.0 single location PKWT Unpackaged Unit Weight 2.000 ounces THSD Thread Series Designator UNF TTQY Terminal Type AND Quantity 2 screw 5925-00-089-3031 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC 109-507 79405 H 2 1 C AC 5 ZZ 109-507-101 79405 H 2 9 5 E TX 13-0550-0075 30598 A 2 1 C AC 6 ZZ CB2307 79405 H 2 9 5 6 TX W23X1A1G7.5 77342 A 2 2 3 E TX 5925-00-089-3031 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM 16 A Generator, 30KW, Tqg, Tactical Quiet Family 17 A Generator, 60KW, Tqg, Tactical Quiet Family 79 F Missile, Mx Peacekeeper AR N Shipboard Material Handling Equipment (Mhe) C7 N Navy Expeditionary Programs PE A Tacsatcom, AN/TSC-85 and AN/TSC-93 TA A Target Acquisition, AN/TSQ-179 (Current Versions), OZ-74(V)1/GRY WU A Generator, 5KW, Tqg, Tactical Quiet Family WV A Generator, 10KW, Tqg, Tactical Quiet Family WW A 3KW Military Tactical Quiet Generator, MEP-831A & MEP-832A WX A Generator, 15KW, Tqg, Tactical Quiet Family YA A Troposcatter Radio Terminal AN/TRC-170

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Tyco Electronics
Voltage Rating	50 VDC / 240 VAC
Model	W23X1A1G7.5
NSN:	5925-00-089-3031
MPN	W23-X1A1G-7.5
Poles	1
Amperage Rating	7.5
