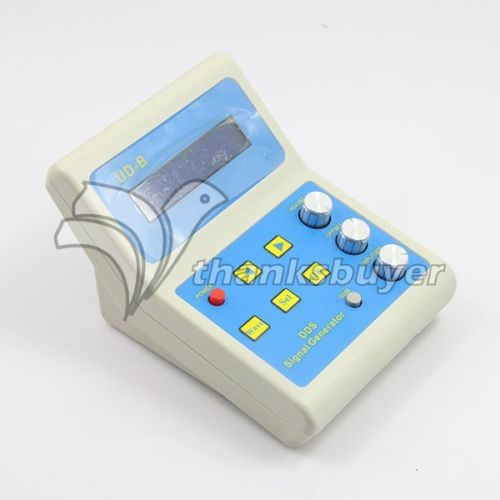

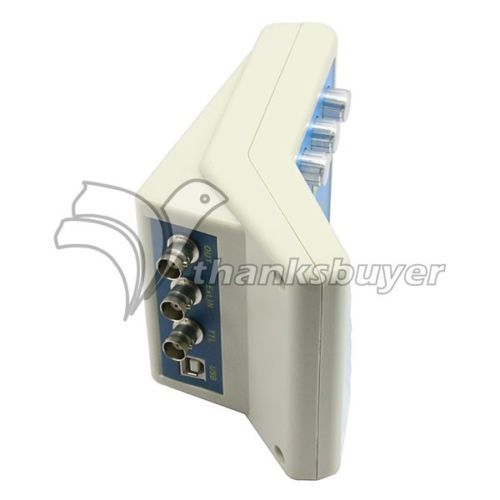

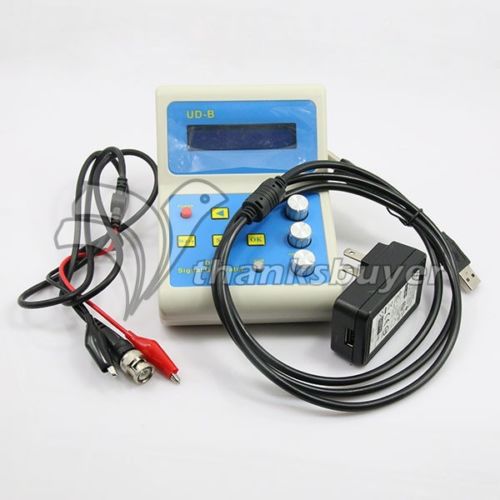

Udb1108s Mhz With Frequency Sweep Function Dds Function Signal Generator Source

US $68.62

Shenzhen, China, China
Jan 29th

Open on mobile:
QR code

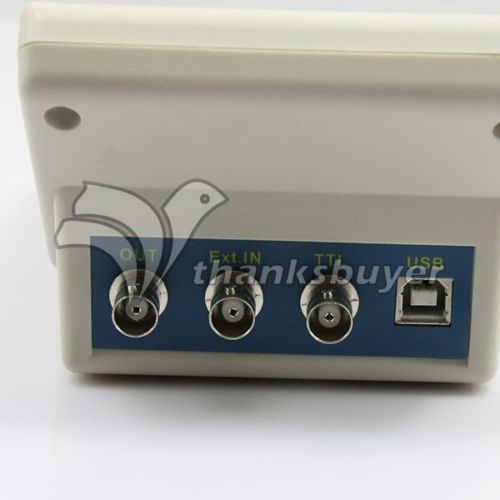

Welcome to have a look at my store, we offer a variety of different RC parts and RC tools that you may interest in, click here! UDB1108S MHz with frequency sweep function DDS Function Signal Generator Source With 60MHz Frequency Counter DDS In UDB11xx(S) series,we have eight moels as following: 1.UDB1102 2MHz 2.UDB1102S 2MHz with frequency sweep functon 3.UDB1103 3MHz 4.UDB1103S 3MHz with frequency sweep functon 5.UDB1105 5MHz 6.UDB1105S 5MHz with frequency sweep functon 7.UDB1108 8MHz 8.UDB1108S 8MHz with frequency sweep functon This product is UDB1108S 8MHz. Introduction of the instrument UDB11xx(UDB11xxS) series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect., with the function of TTL output and 60MHz frequency meter, SG100xS series have sweep function, the start and end frequency and sweep time can be set at will. It's the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research. Main technology data 1.Signal Output function Output amplitude >=9Vp-p (signal output,no load)(MAX) About 0.1Vp-p(MIN) Output impedance 50 omega +/-10%(signal output) DC offset +/-2.5V(no load) Display LCD1602 Frequency range 0.01Hz - 2MHz(UDB1102) 0.01Hz - 3MHz(UDB1103) 0.01Hz - 5MHz(UDB1105) 0.01Hz - 8MHz(UDB1108) Resolution 0.01Hz(10mHz) Frequency Stability +/-1x10-6 Frequency accuracy +/-5x0-6 Sine wave distortion <=0.8%(reference frequency is 1kHz) Trinagle linearity >=98%(0.01Hz-10kHz) Rise and fall time of square wave <=100ns Square Wave Duty range 1%-99%(digital control mode) 2.TTL Output function Frequency range 0.01Hz - 2MHz(UDB1102 or UDB1102S) 0.01Hz - 3MHz(UDB1103 or UDB1103S) 0.01Hz - 5MHz(UDB1105 or UDB1105S) 0.01Hz - 8MHz(UDB1108 or UDB1108S) Amplitude >3Vp-p Fan Out >20 TTL loads 3.COUNTER function Counter Range 0-4294967295 Frequency Meter Range 1Hz-60MHz Input Voltage Range 0.5Vp-p -20Vp-p 4.SWEEP function(as for UDB100xS series) Frequency range fM1 to fM2 Sweep time 1s-99s 5.Others function Save and Load Parameter M0-M9(M0:default load) Payment Terms1. We only accept paypal payment, other payment methods are not acceptable. 2. Payment should be completed within 7 days of bid or auction closing. Or unpaid dispute will be filed for non-payer after 7 days of sales day. Shipping Terms1. We ship all the items to your paypal address, please make sure that your paypal address must be correct or send us a message to inform us if you want to change a address before you pay for it. 2. We ship all our buyers packages with tracking number, and all the items will be sent within 1-2 business days after payment received. 3. Usual we offer free shipping by EUB or Paypal package, but if you would like a express delivery, we can ship your package by International EMS or DHL on the condition that you are willing to pay for the extra postage. 4. All the package which weight is over 2kg, we will ship it by International EMS or DHL as other methods can not ship to, and it commonly takes 5-10 business days to arrive you. Delivery Time Countries 7 ~ 15 days United States (ship by International EUB) 7 ~ 15 days United Kingdom, Canada, Australia ( ship by Paypal Package) Return Terms 1. If you receive defective item, please kindly notify us within 14 days. We will guide you the returning instruction for replacement or refund. 2. If you purchased in improper condition, please NOTE that the sipping and handling fee will not be refund, all return shipping fee should paid by the buyer unless item DOA. 3. We reserve the right to refuse any returns for objective reasons. Custom Duties & Taxes 1. Import duties, taxes, and charges are not included in the item price or postage cost. These charges are the buyer's responsibility. 2. Avoiding some unnecessary trouble, please check with your country's customs office to inform us what we should declare its value before shipping. Feedback 1. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. 2. If you are satisfied with the product you received, please kindly leave us a positive feedback and 5 star DSR. If there is any problem of your order, please feel free to contact us firstly, we are responsible and credible seller, will follow it for you asap. inkfrog terapeak i000000

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

thanksbuyer
