Unusual Tapered Lens For Photololithography 8" Wafers?

US $16000

Santa Clara, California, United States
Feb 28th

Open on mobile:
QR code

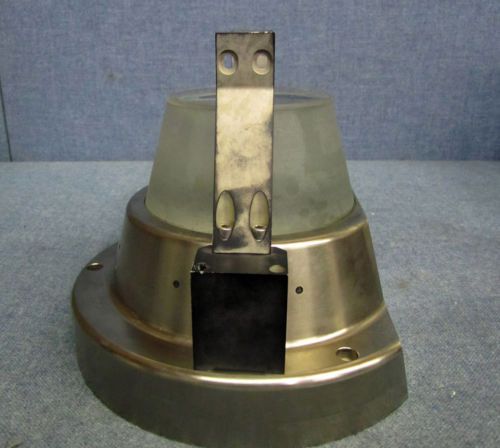

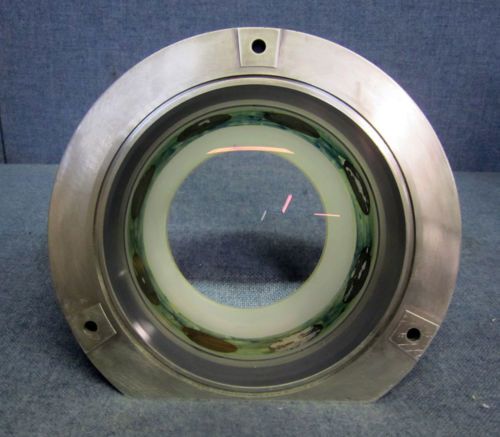

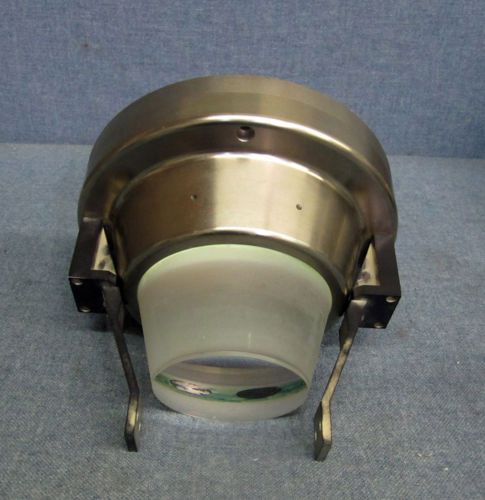

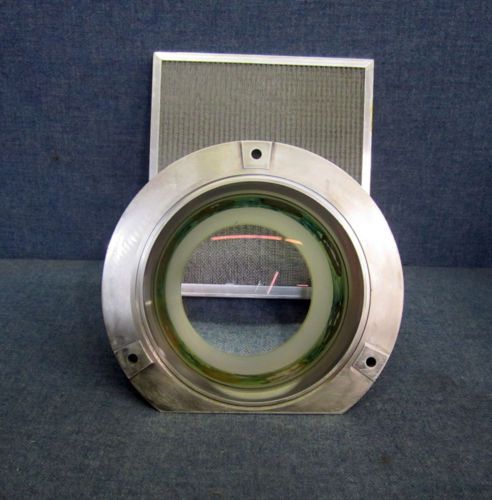

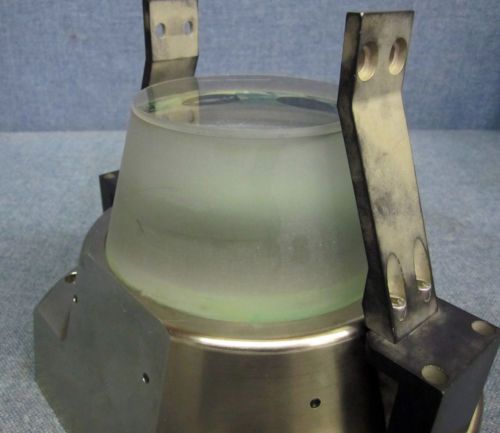

This tapered lens appears to be either a collimating or beam expanding lens for precision illumination during the the photolithographic process in wafer processing. The o'ring groove on the large end is a little over 8". The lens itself is tapered from about 8" to about 4" and is about 9" long. It is slightly convex on the large end and flat on the small end. The large end lens set back into the Stainless approximately 1". It appears to be one piece of glass except for a thin additional element on the small end. The lens is mounted in a heavy stainless steel frame that was likely used in a high vacuum environmnent. It is flat on one side and has heavy brackets for mounting. The entire unit weights roughly 45 lbs. The lens' surfaces are in excellent condition. The green colored band that you can see inside the lens is the area where is it glued or attached to the stainless frame. The black circles correspond to set screws on the outside. This is made from the very best quality optical materials and with this size and thickness may have many applications outside of the semiconductor industry such as telescope lens making. Unfortunately I do not have exact specifications on focal length, index of refraction etc. 14 DAY RETURN PRIVILEGE If we have made a mistake in the description so that your purchase is not as described, or if your item is damaged in shipping we will gladly accept your return if sent within 14 days after you receive it. We will immediately refund your full purchase price including original shipping and we will reimburse you for the return shipping as well. Note: RETURN PRIVILEGE AND SHIPPING AMOUNTS GIVEN ARE VALID ONLY FOR SALES WITHIN THE CONTINENTAL UNITED STATES - Call for details if not in the US. ________________________________________________________________ We prefer Paypal payment within 3 days of auction close unless arrangements are made in advance. We will leave positive feedback right away, and hope that you will do the same once you've received the item and are happy with the transaction. We ship to most countries, however, please contact us to be sure we can ship to you and to determine shipping amount We will usually ship within 1-2 days of receipt of payment. _______________________________________________________________ NO RESERVE and NO BS !! If you have any questions please call Jan 408-393-9418 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
