Waveguide And Coaxial Designs Wr340 - Wr28 Filters, Adapters, Terminations

C $200.00

  • Vancouver, British Columbia, Canada
  • Jan 29th
Open on mobile:
QR code

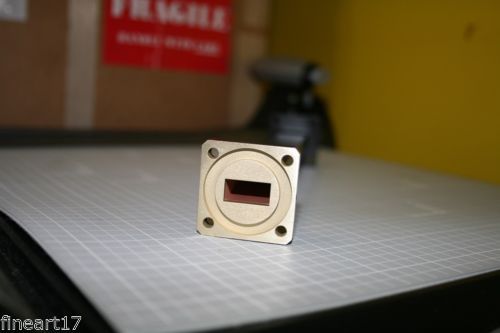

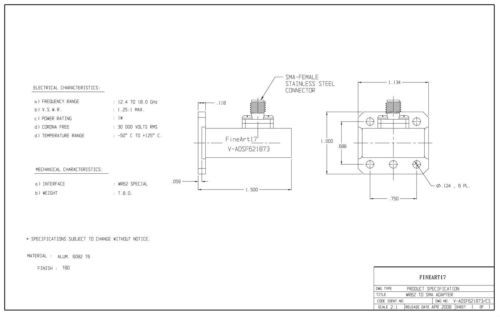

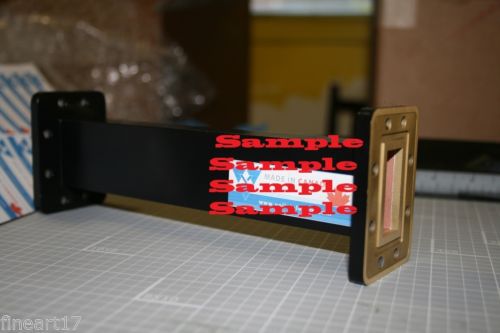

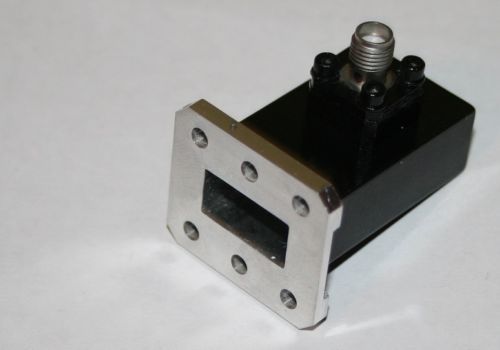

RF & Microwave Passive Components Design package, (1 unit project each time)you can chosse any Size from WR340 to WR28, with any type of flange or coaxial connector applicable from fallowing categories: Coaxial Directional Coupler Coaxial Dual Directional Coupler Waveguide Directional Coupler Waveguide Crossguide Directional Coupler Low and Medium Power Termination Precision Termination Coaxial Filter Waveguide Filter Waveguide Adapter Coaxial Circulator / Isolator Waveguide Circulator / Isolator Power Dividers / Combiners This is a complete design package with manufacturing mechanical drawings and assembly instruction. it means, by buying each Component design project you can manufacture it yourself. all designed components has been manufactured and tested previously (as you see in the pictures) and we guaranty that it will work if it's properly manufactured.  Note: We are not responsible for your manufacturing accuracy and your tuning ability. Price: starting from $200 for each project.
