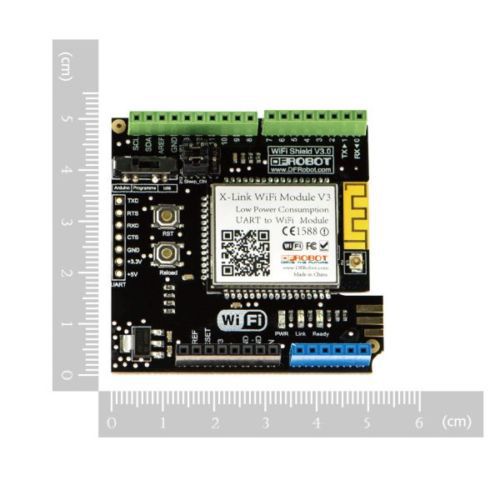

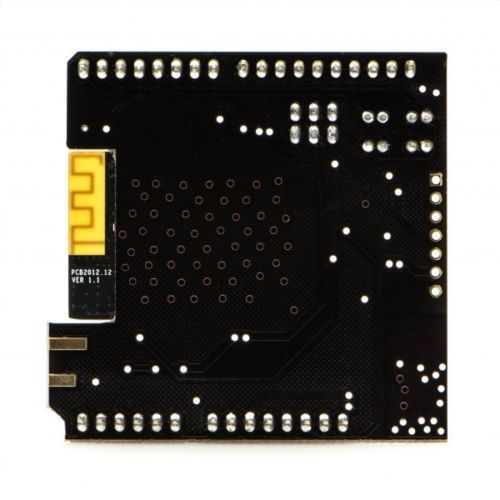

Wifi Shield V3 Pcb Antenna (802.11b/g/n)! Easy Way For Arduino Connect To Wifi!

US $52.90

Puchong, Selangor, Malaysia
Jan 29th

Open on mobile:
QR code

Introduction: This WiFi Shield V3 supports AP+STA dual mode, and is extremly easy to connect to router network. You only need a mobile phone or Pad to log in the AP network of this module(similar to the way with a router). After logging in the module, it is ready to connect the WIFI network (No AT command setup required, which is often very complex). This module uses dynamic power management to achieve low power consumption capability (standby: <80uA; normal mode average: 8mA; peak: 200mA). This is especially useful in prototyping which not only demands low power consumption, but also requires a standby mode. The module provides UART(TTL) to IEEE802.11b/g/n wireless communication. IEEE802.11n is a newest wireless transmission protocol which enjoys features such as higher transmission speed, wider coverage, stronger compatibility, and much more safety. Currently many wireless electronic equipment manufacturers have been applying this standard (IEEE802.11n) to a large number of products. With this WIFI Shield, any device with UART can easily set up a wireless network and achieve remote management and controlling. This package includes: 1 x WiFi Shield V3(PCB Antenna) Technical Specifications: Working voltage: 5V Frequency range: 2.4 - 2.497GHz Output power: 16dBm Transmission rate: 54Mbps - 1Mbps Transmission distance: <150M Size: 55mmx53mmx11mm Weight: 40g Support IEEE 802.11b/g/n Support AP,Client,Gateway and UART to WLAN mode and so on Support DHCP,automatic access to IP;Support allocating IP to salve device in AP mode Support network protocol:TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP The optional working mode:TCP Server/TCP Client/UDP;Support up to 32 Client in TCP Server mode Support most of WIFI encryption algorithm:WEP/WAP-PSK/WAP2-PSK/WAPI;Type of encryption:WEP64/WEP128/TKIP/AES Support transparent UART/protocol data transmission mode;Up to 1M cache space;Highest baud rate:460800bps Support UART(TTL) to wireless applications Drag down the level of the Reload IO pin for one sencod,you can restore factory settings.So do not worry about the wrong settings. Support running in AP mode and the node (Station) mode;The real hardware AP, so Android can directly access it. Provide AT command configuration Provide the friendly web configuration page,and can be configured by webpage Serial frame delay and the amount of data can be set. Support routing/bridge mode network architecture Designed by standard Arduino stack, and can be easily put on the standard Arduino, MEGA, Romeo board or shield Download: Wiki Doc:Link Shipping: Standard Shipping (Delivery time is 7-30 business days): with Registered Air Mail Expedited Shipping (Delivery time is 3-10 business days): is available to US, Canada, Europe & Australia. P.O. Box is not supported for expedited shipping Expedited Shipping for Europe countries ONLY cover: Austria, Belgium, Czech, Denmark, Finland, France, Germany, Hungary, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Slovakia, Spain, Sweden, Switzerland And United Kingdom Please check with us of express shipping for other countries. Tracking number is provided for Standard and Expedited Shipping. You may contact us for the tracking number. We ship within two business day after payment received. We will ship to the Paypal shipping address you entered during checkout process, rather than your eBay shipping address. We Ship to Worldwide, except China and Israel. Payment Payment method: We only accept PayPal Please request total for combined orders. Other Policies We are not responsible for any custom duty or import tax. These charges are the buyer's responsibility. We will leave POSITIVE FEEDBACK after receive the full payment. Please contact us if you are not satisfied with the item when you receive it. Serious Buyer Only! Please place bid only if you agree with all the terms. Warranty 6 months Warranty. Buy with confidence! Only MANUFACTURING defective product will be offered exchange or store credit. Damage caused by any misuse of product is not covered under warranty. Contact Us Please read our policy and product description before your purchase. We will explain it in detail and satisfy your needs. Feel free to contact us! Email: support@avrcircuit.com For more information, please visit www.avrcircuit.com
